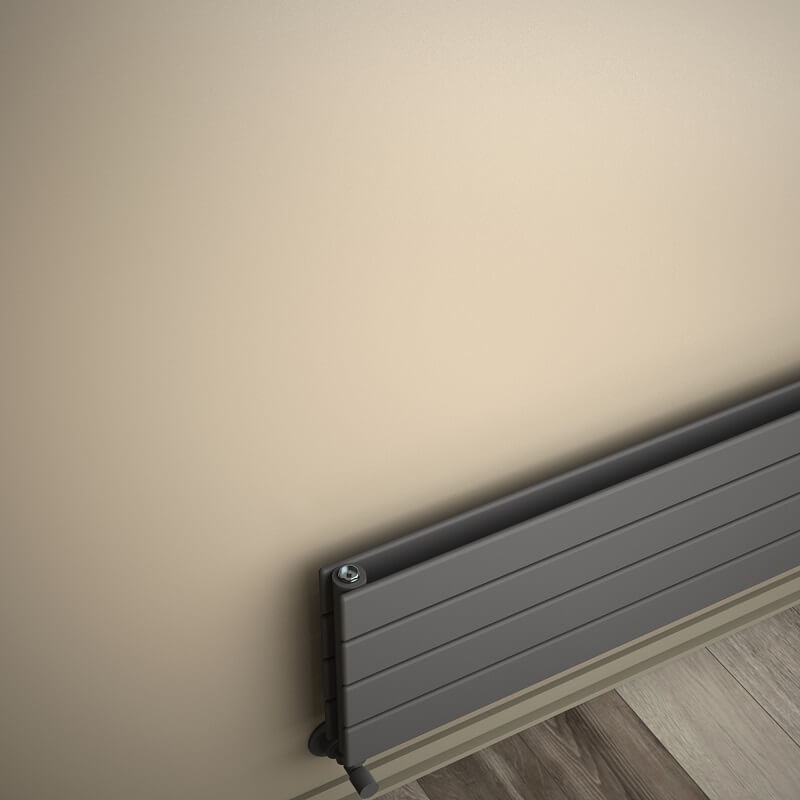

TECHNICAL INFORMATION
• Model = 20H
• Material =Steel
• Height=292 mm
• Width=1500 mm
• Color/Coating=Anthracite
• Number of Sections=4 Pieces
• Total Number of Profiles (Front + Back)=4+4 Pieces
• Profile Dimension=70x11 mm
• Collector Dimension=38 mm
• Maximum Working Pressure=4,5 bar
• Radiator Depth=58 mm
• Wall to Center of Inlet=64 mm
• Wall Projection Distance=93 mm
• Radiator Thread Dimension=1/2"
• Water Volume=6,5 lt
• Weight=19,6 kg
• Boxed Weight=21,22 kg
• Box Size=35x156x9,6 cmTAPPING OPTIONS
• Standard Entry=1450 mm
• Bottom Middle Entrance=50mm
• Bottom Right Entrance=50mm
• Bottom Left Entrance=50mm
• Sides / Bottom Right-Left=1590mm
• Cross Up-Right / Down-Left=1590mm
• Cross Up-Left / Down-Right=1590mm
• Side - Right=250mm
• Side - Left=250mmHeat Output
Kcal / h
• Heat Output 75/65-20°?t=50°C = 755 Kcal/h
• Heat Output 90/70-20° ?t=60°C=952Kcal/h
• Heat Output 55/45-20° ?t=30°C=387Kcal/h
Watts
• Heat Output 75/65-20°?t=50°C=877 Watt
• Heat Output 90/70-20°?t=60°C=1106 Watt
• Heat Output 55/45-20°?t=30°C=450 Watt
Btu
• Heat Output 75/65-20°?t=50°C=2993 Btu
• Heat Output 90/70-20°?t=60°C=3772 Btu
• Heat Output 55/45-20°?t=30°C=1533 Btu
Warranty:10 YearsDelivery Information:21 Day
Other Colors
-

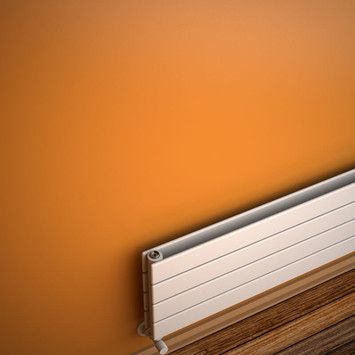

%45 DiscountAKS SeçenekleriType 20H Decorative Radiator 292x1500 White ∆t50°C=754 Kcal/h | ∆t60°C= 950 Kcal/h | 4 Pipes | Heats 5-15 m2
-
