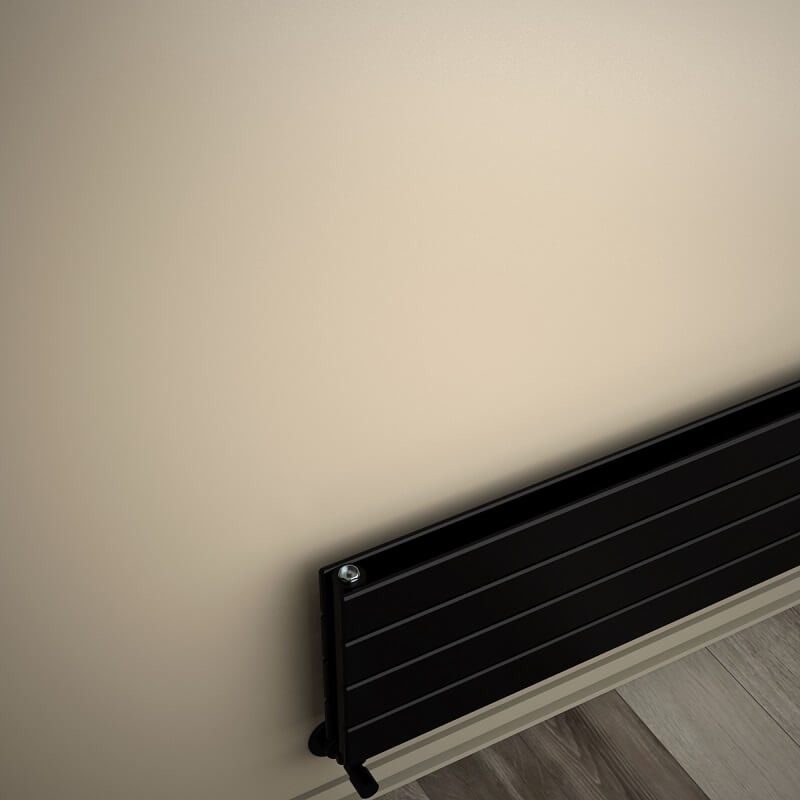

TECHNICAL INFORMATION
• Model = 20H
• Material =Steel
• Height=292 mm
• Width=1700 mm
• Color/Coating=Matte Black RAL9005
• Number of Sections=4 Pieces
• Total Number of Profiles (Front + Back)=4+4 Pieces
• Profile Dimension=70x11 mm
• Collector Dimension=38 mm
• Maximum Working Pressure=4,5 bar
• Radiator Depth=58 mm
• Wall to Center of Inlet=64 mm
• Wall Projection Distance=93 mm
• Radiator Thread Dimension=1/2"
• Water Volume=7,3 lt
• Weight=22,1 kg
• Boxed Weight=23,89 kg
• Box Size=35x176x9,6 cmTAPPING OPTIONS
• Standard Entry=1650 mm
• Bottom Middle Entrance=50mm
• Bottom Right Entrance=50mm
• Bottom Left Entrance=50mm
• Sides / Bottom Right-Left=1790mm
• Cross Up-Right / Down-Left=1790mm
• Cross Up-Left / Down-Right=1790mm
• Side - Right=250mm
• Side - Left=250mmHeat Output
Kcal / h
• Heat Output 75/65-20°?t=50°C = 855 Kcal/h
• Heat Output 90/70-20° ?t=60°C=1078Kcal/h
• Heat Output 55/45-20° ?t=30°C=438Kcal/h
Watts
• Heat Output 75/65-20°?t=50°C=994 Watt
• Heat Output 90/70-20°?t=60°C=1253 Watt
• Heat Output 55/45-20°?t=30°C=509 Watt
Btu
• Heat Output 75/65-20°?t=50°C=3392 Btu
• Heat Output 90/70-20°?t=60°C=4274 Btu
• Heat Output 55/45-20°?t=30°C=1737 Btu
Warranty:10 YearsDelivery Information:21 Day
Other Colors
-

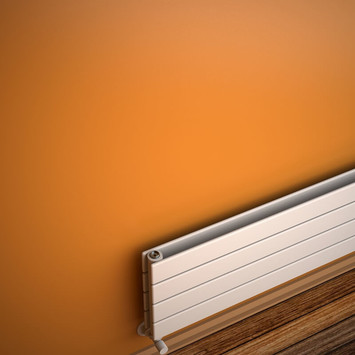

%45 DiscountAKS SeçenekleriType 20H Decorative Radiator 292x1700 White ∆t50°C=855 Kcal/h | ∆t60°C= 1078 Kcal/h | 4 Pipes | Heats 6-17 m2
-
%45 DiscountAKS SeçenekleriType 20H Decorative Radiator 292x1700 Anthracite ∆t50°C=855 Kcal/h | ∆t60°C= 1078 Kcal/h | 4 Pipes | Heats 6-17 m2
-
%45 DiscountAKS SeçenekleriType 20H Decorative Radiator 292x1700 Matte Black ∆t50°C=855 Kcal/h | ∆t60°C= 1078 Kcal/h | 4 Pipes | Heats 6-17 m2
-
%45 DiscountAKS SeçenekleriType 20H Decorative Radiator 292x1700 Wood Effect ∆t50°C=855 Kcal/h | ∆t60°C= 1078 Kcal/h | 4 Pipes | Heats 6-17 m2
