TECHNICAL INFORMATION

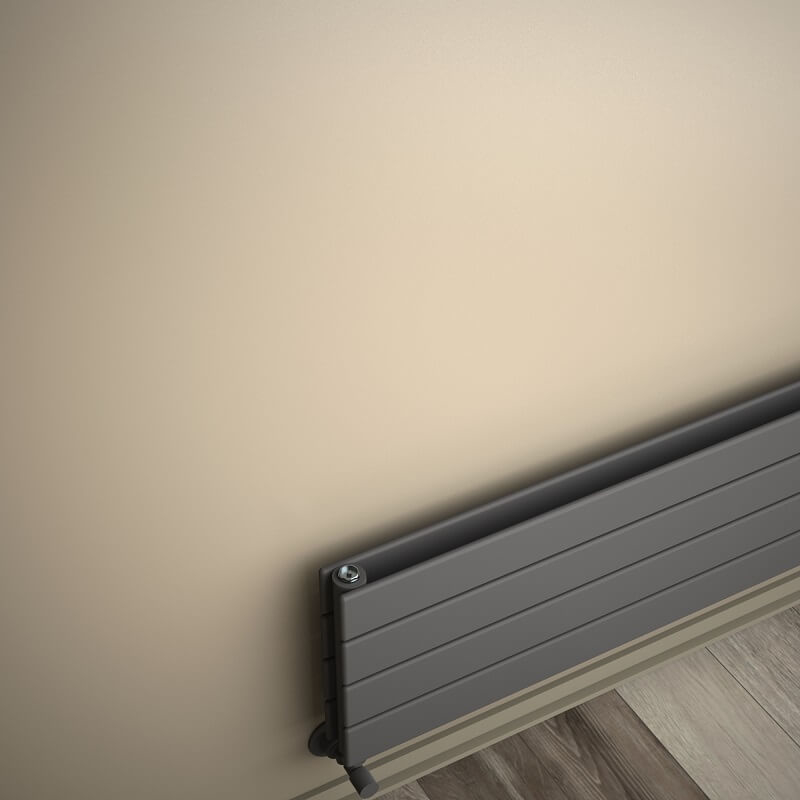

• Model = 20H
• Material =Steel
• Height=292 mm
• Width=1800 mm
• Color/Coating=Anthracite
• Number of Sections=4 Pieces
• Total Number of Profiles (Front + Back)=4+4 Pieces
• Profile Dimension=70x11 mm
• Collector Dimension=38 mm
• Maximum Working Pressure=4,5 bar
• Radiator Depth=58 mm
• Wall to Center of Inlet=64 mm
• Wall Projection Distance=93 mm
• Radiator Thread Dimension=1/2"
• Water Volume=7,7 lt
• Weight=23,4 kg
• Boxed Weight=25,28 kg
• Box Size=35x186x9,6 cmTAPPING OPTIONS
• Standard Entry=1750 mm
• Bottom Middle Entrance=50mm
• Bottom Right Entrance=50mm
• Bottom Left Entrance=50mm
• Sides / Bottom Right-Left=1890mm
• Cross Up-Right / Down-Left=1890mm
• Cross Up-Left / Down-Right=1890mm
• Side - Right=250mm
• Side - Left=250mmHeat Output
Kcal / h
• Heat Output 75/65-20°?t=50°C = 905 Kcal/h
• Heat Output 90/70-20° ?t=60°C=1141Kcal/h
• Heat Output 55/45-20° ?t=30°C=464Kcal/h
Watts
• Heat Output 75/65-20°?t=50°C=1052 Watt
• Heat Output 90/70-20°?t=60°C=1326 Watt
• Heat Output 55/45-20°?t=30°C=539 Watt
Btu
• Heat Output 75/65-20°?t=50°C=3590 Btu
• Heat Output 90/70-20°?t=60°C=4524 Btu
• Heat Output 55/45-20°?t=30°C=1839 Btu
Warranty:10 YearsDelivery Information:21 Day
