%45 Discount

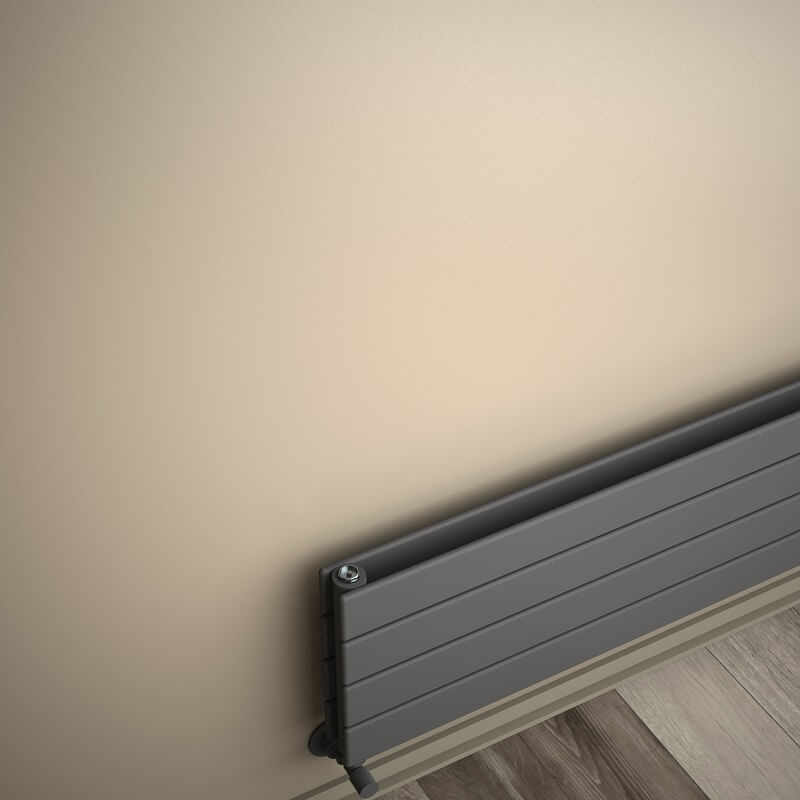

Type 20H Decorative Radiator 292x1900 Anthracite

Name: Type 20H Decorative Radiator 292x1900 Anthracite
SKU: 220H02921900B2TS
Price: 18532.80 TRY
Availability: InStock

Product Code : 220H02921900B2TS

Guarantee : 10 Year

TAXES Included

Price

33,696.00 TL

Discounted Price

18,532.80 TL

10 Years
Warranty

2000€ +
Free Shipping

{"vat":20,"m_o_p":0,"variant_ids":{"39_0":"6126","40_0":"14361","42_0":"8871","41_0":"11616","43_0":"17106","45_0":"18366","44_0":"19626","46_0":"20568","47_0":"20886"},"variant_prices":{"39_0":15444,"40_0":16324,"42_0":16324,"41_0":16324,"43_0":16324,"45_0":16324,"44_0":16324,"46_0":16324,"47_0":16324},"variant_price_raws":{"39_0":15444,"40_0":16324,"42_0":16324,"41_0":16324,"43_0":16324,"45_0":16324,"44_0":16324,"46_0":16324,"47_0":16324},"buying_prices":{"39_0":"0","40_0":"0","42_0":"0","41_0":"0","43_0":"0","45_0":"0","44_0":"0","46_0":"0","47_0":"0"},"not_discounted_prices":{"39_0":"28080","40_0":"29680","42_0":"29680","41_0":"29680","43_0":"29680","45_0":"29680","44_0":"29680","46_0":"29680","47_0":"29680"},"variant_supplier_codes":{"39_0":"220H02921900B2TS","40_0":"220H02921900B2TM1","42_0":"220H02921900B2TM2","41_0":"220H02921900B2TM3","43_0":"220H02921900B2TY0","45_0":"220H02921900B2TC1","44_0":"220H02921900B2TC2","46_0":"220H02921900B2TR1","47_0":"220H02921900B2TL1"},"active_ids":{"one_39":["0"],"two_0":["39","40","42","41","43","45","44","46","47"],"one_40":["0"],"one_42":["0"],"one_41":["0"],"one_43":["0"],"one_45":["0"],"one_44":["0"],"one_46":["0"],"one_47":["0"]},"variant_informations":{"39_0":{"additional_information":""},"40_0":{"additional_information":""},"42_0":{"additional_information":""},"41_0":{"additional_information":""},"43_0":{"additional_information":""},"45_0":{"additional_information":""},"44_0":{"additional_information":""},"46_0":{"additional_information":""},"47_0":{"additional_information":""}},"variant_stocks":{"39_0":"100","40_0":"100","42_0":"100","41_0":"100","43_0":"100","45_0":"100","44_0":"100","46_0":"100","47_0":"100"}}

Options

Standard Entry

Bottom Middle 50mm

Bottom Right 50mm

Bottom Left 50mm

Side-Bottom Right Bottom Left

Cross-Left Bottom Top Right

Cross-Left Top-Right Bottom

Side-25cm Entry Right

Side-25cm Entry Left

Choose Quantity

Add to Cart

Planned Delivery

20.01.2025 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 20H

• Material =Steel

• Height=292 mm

• Width=1900 mm

• Color/Coating=Anthracite

• Number of Sections=4 Pieces

• Total Number of Profiles (Front + Back)=4+4 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=58 mm

• Wall to Center of Inlet=64 mm

• Wall Projection Distance=93 mm

• Radiator Thread Dimension=1/2"

• Water Volume=8,1 lt

• Weight=24,6 kg

• Boxed Weight=26,57 kg

• Box Size=35x196x9,6 cm

TAPPING OPTIONS

• Standard Entry=1850 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

• Sides / Bottom Right-Left=1990mm

• Cross Up-Right / Down-Left=1990mm

• Cross Up-Left / Down-Right=1990mm

• Side - Right=250mm

• Side - Left=250mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 955 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1204Kcal/h

• Heat Output 55/45-20° ?t=30°C=489Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=1110 Watt

• Heat Output 90/70-20°?t=60°C=1399 Watt

• Heat Output 55/45-20°?t=30°C=569 Watt

Btu

• Heat Output 75/65-20°?t=50°C=3788 Btu

• Heat Output 90/70-20°?t=60°C=4773 Btu

• Heat Output 55/45-20°?t=30°C=1940 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day
