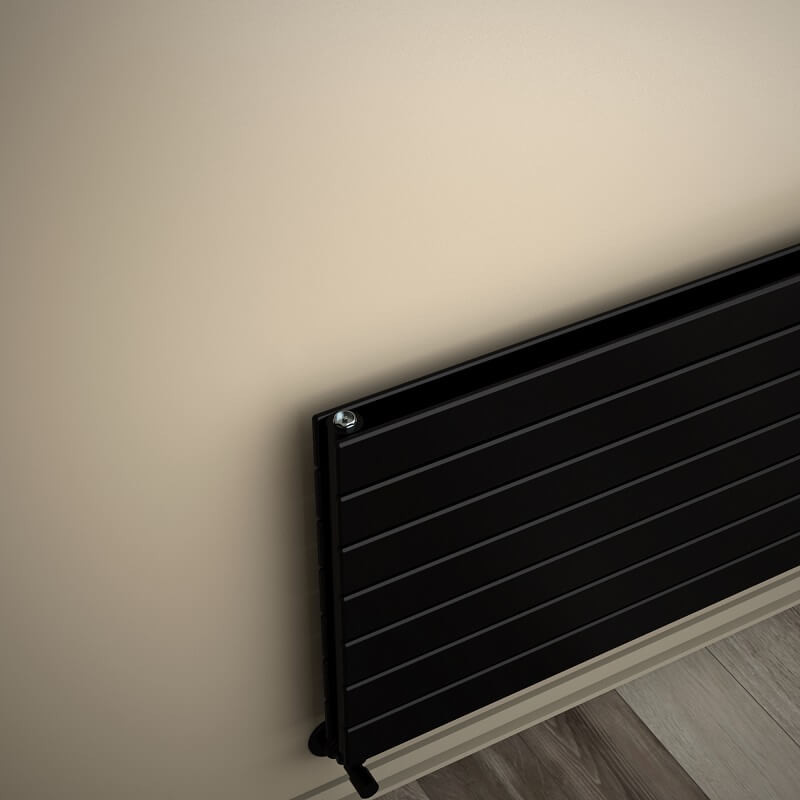

TECHNICAL INFORMATION
• Model = 20H
• Material =Steel
• Height=514 mm
• Width=1500 mm
• Color/Coating=Matte Black RAL9005
• Number of Sections=7 Pieces
• Total Number of Profiles (Front + Back)=7+7 Pieces
• Profile Dimension=70x11 mm
• Collector Dimension=38 mm
• Maximum Working Pressure=4,5 bar
• Radiator Depth=58 mm
• Wall to Center of Inlet=64 mm
• Wall Projection Distance=93 mm
• Radiator Thread Dimension=1/2"
• Water Volume=11,4 lt
• Weight=34,2 kg
• Boxed Weight=36,82 kg
• Box Size=57x156x9,6 cmTAPPING OPTIONS
• Standard Entry=1450 mm
• Bottom Middle Entrance=50mm
• Bottom Right Entrance=50mm
• Bottom Left Entrance=50mm
• Sides / Bottom Right-Left=1590mm
• Cross Up-Right / Down-Left=1590mm
• Cross Up-Left / Down-Right=1590mm
• Side - Right=450mm
• Side - Left=450mmHeat Output
Kcal / h
• Heat Output 75/65-20°?t=50°C = 1172 Kcal/h
• Heat Output 90/70-20° ?t=60°C=1477Kcal/h
• Heat Output 55/45-20° ?t=30°C=601Kcal/h
Watts
• Heat Output 75/65-20°?t=50°C=1362 Watt
• Heat Output 90/70-20°?t=60°C=1717 Watt
• Heat Output 55/45-20°?t=30°C=698 Watt
Btu
• Heat Output 75/65-20°?t=50°C=4648 Btu
• Heat Output 90/70-20°?t=60°C=5857 Btu
• Heat Output 55/45-20°?t=30°C=2380 Btu
Warranty:10 YearsDelivery Information:21 Day
