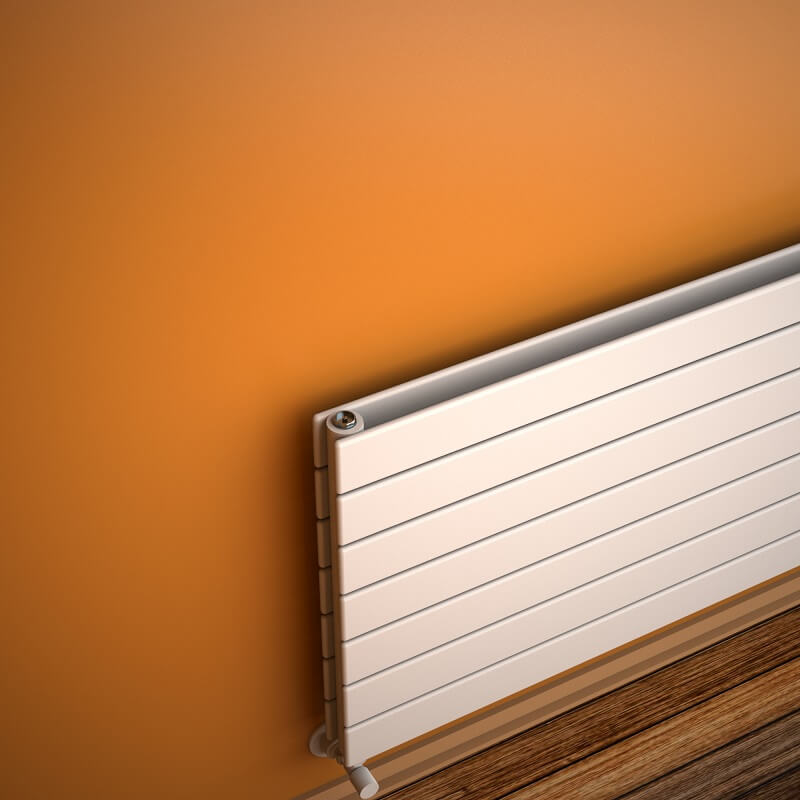

Type 20H Decorative Radiator 514x1800 White

Product Code : 220H05141800B1PS
Guarantee : 10 Year
TAXES Included
Price
:
41,674.80 TL
Discounted Price
:
22,921.14 TL
<p>10 Year Warranty</p>
10 Years
Warranty
Kargo Bedava
2000€ +
Free Shipping
Options

Standard Entry Standard Entry

Bottom Right 50mm Bottom Right 50mm

Bottom Left 50mm Bottom Left 50mm

Bottom Middle 50mm Bottom Middle 50mm

Side-Bottom Right Bottom Left Side-Bottom Right Bottom Left

Cross-Left Bottom Top Right Cross-Left Bottom Top Right

Cross-Left Top-Right Bottom Cross-Left Top-Right Bottom

Side-45cm Entry Right Side-45cm Entry Right

Side-45cm Entry Left Side-45cm Entry Left

Choose Quantity
Planned Delivery
:
20.01.2025 (21 Days)
İnstagram Takip Et
Campaign
  • Features
  • Downloads
  • Payment Options
  • Comments (0)

  • TECHNICAL INFORMATION

    • Model = 20H

    • Material =Steel

    • Height    =514 mm

    • Width=1800 mm

    • Color/Coating=Bright White RAL9016

    • Number of Sections=7 Pieces

    • Total Number of Profiles (Front + Back)=7+7 Pieces

    • Profile Dimension=70x11 mm

    • Collector Dimension=38 mm

    • Maximum Working Pressure=4,5 bar

    • Radiator Depth=58 mm

    • Wall to Center of Inlet=64 mm

    • Wall Projection Distance=93 mm

    • Radiator Thread Dimension=1/2"

    • Water Volume=13,5 lt

    • Weight=40,8 kg

    • Boxed Weight    =43,88 kg

    • Box Size=57x186x9,6 cm


    TAPPING OPTIONS




    • Standard Entry=1750 mm

    • Bottom Middle Entrance=50mm

    • Bottom Right Entrance=50mm

    • Bottom Left Entrance=50mm

    • Sides / Bottom Right-Left=1890mm

    • Cross Up-Right / Down-Left=1890mm

    • Cross Up-Left / Down-Right=1890mm

    • Side - Right=450mm

    • Side - Left=450mm


    Heat Output




    Kcal / h


    • Heat Output 75/65-20°?t=50°C = 1406 Kcal/h

    • Heat Output 90/70-20° ?t=60°C=1772Kcal/h

    • Heat Output 55/45-20° ?t=30°C=720Kcal/h


    Watts

    • Heat Output 75/65-20°?t=50°C=1634 Watt

    • Heat Output 90/70-20°?t=60°C=2059 Watt

    • Heat Output 55/45-20°?t=30°C=837 Watt


    Btu

    • Heat Output 75/65-20°?t=50°C=5576 Btu

    • Heat Output 90/70-20°?t=60°C=7026 Btu

    • Heat Output 55/45-20°?t=30°C=2855 Btu
    Warranty
    :
    10 Years
    Delivery Information
    :
    21 Day
    Tags
    dizayn radyatör , dizayn panel radyatör fiyatları , dizayn panel radyatör , radyatör modelleri , radyatör fiyatları , radyatör petek , panel radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler
Other Colors
  • %45 Discount - Type 20H Decorative Radiator 514x1800 White
    AKS Seçenekleri
    Type 20H Decorative Radiator 514x1800 White ∆t50°C=1405 Kcal/h | ∆t60°C= 1771 Kcal/h | 7 Pipes | Heats 9-27 m2
    41,674.80 TL
    22,921.14 TL
  • %45 Discount - Type 20H Decorative Radiator 514x1800 Anthracite
    AKS Seçenekleri
    Type 20H Decorative Radiator 514x1800 Anthracite ∆t50°C=1405 Kcal/h | ∆t60°C= 1771 Kcal/h | 7 Pipes | Heats 9-27 m2
    52,093.50 TL
    28,651.43 TL
  • %45 Discount - Type 20H Decorative Radiator 514x1800 Matte Black
    AKS Seçenekleri
    Type 20H Decorative Radiator 514x1800 Matte Black ∆t50°C=1405 Kcal/h | ∆t60°C= 1771 Kcal/h | 7 Pipes | Heats 9-27 m2
    52,093.50 TL
    28,651.43 TL
  • %45 Discount - Type 20H Decorative Radiator 514x1800 Wood Effect
    AKS Seçenekleri
    Type 20H Decorative Radiator 514x1800 Wood Effect ∆t50°C=1405 Kcal/h | ∆t60°C= 1771 Kcal/h | 7 Pipes | Heats 9-27 m2
    55,922.40 TL
    30,757.32 TL
