%45 Discount

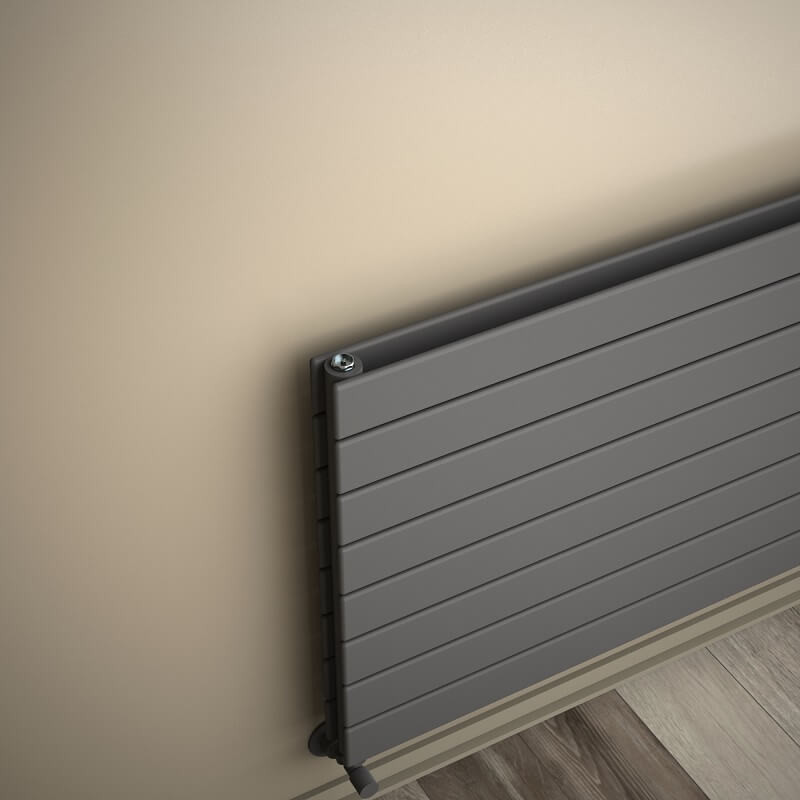

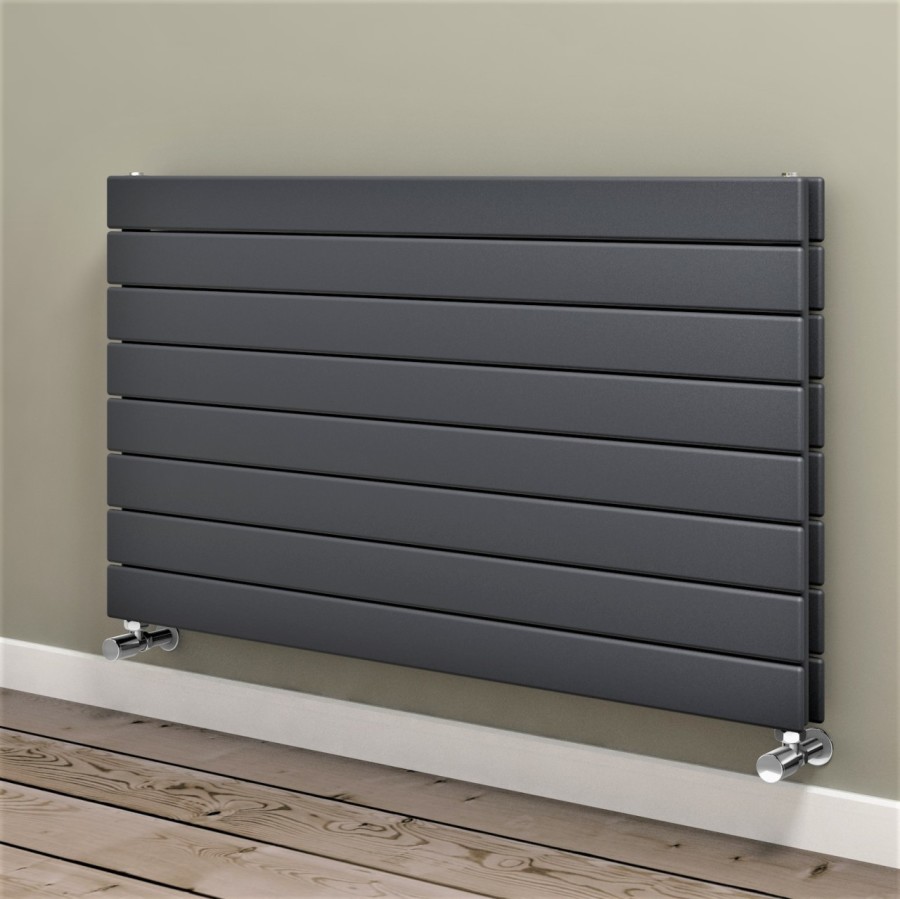

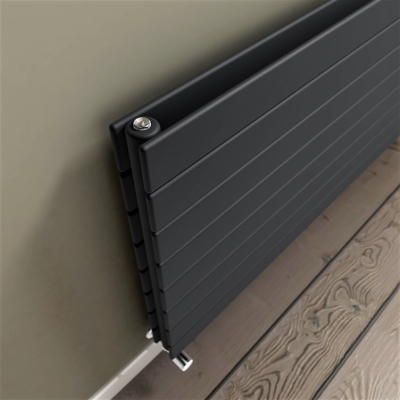

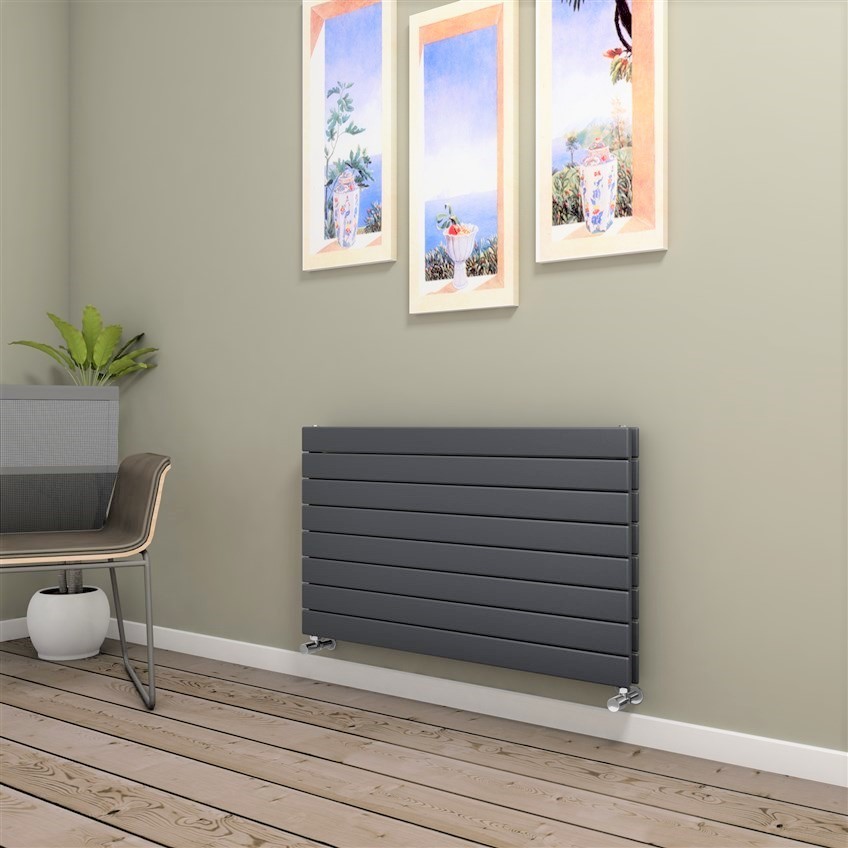

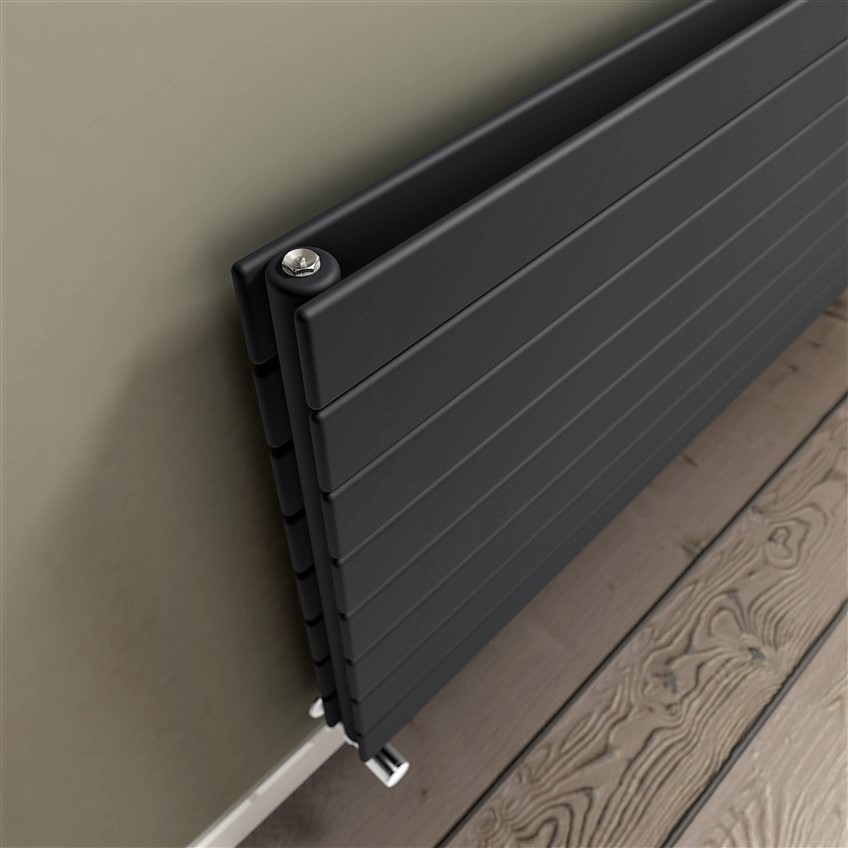

Type 20H Decorative Radiator 588x1000 Anthracite

Name: Type 20H Decorative Radiator 588x1000 Anthracite
SKU: 220H05881000B2TS
Price: 19839.60 TRY
Availability: InStock

Product Code : 220H05881000B2TS

Guarantee : 10 Year

TAXES Included

Price

36,072.00 TL

Discounted Price

19,839.60 TL

10 Years
Warranty

2000€ +
Free Shipping

{"vat":20,"m_o_p":0,"variant_ids":{"69_0":"4762","68_0":"4893","67_0":"5024","66_0":"5155","65_0":"5301","64_0":"5310","63_0":"5319","62_0":"5337","61_0":"5328"},"variant_prices":{"69_0":16533,"68_0":17413,"67_0":17413,"66_0":17413,"65_0":17413,"64_0":17413,"63_0":17413,"62_0":17413,"61_0":17413},"variant_price_raws":{"69_0":16533,"68_0":17413,"67_0":17413,"66_0":17413,"65_0":17413,"64_0":17413,"63_0":17413,"62_0":17413,"61_0":17413},"buying_prices":{"69_0":"0","68_0":"0","67_0":"0","66_0":"0","65_0":"0","64_0":"0","63_0":"0","62_0":"0","61_0":"0"},"not_discounted_prices":{"69_0":"30060","68_0":"31660","67_0":"31660","66_0":"31660","65_0":"31660","64_0":"31660","63_0":"31660","62_0":"31660","61_0":"31660"},"variant_supplier_codes":{"69_0":"220H05881000B2TS","68_0":"220H05881000B2TM1","67_0":"220H05881000B2TM3","66_0":"220H05881000B2TM2","65_0":"220H05881000B2TY0","64_0":"220H05881000B2TC1","63_0":"220H05881000B2TC2","62_0":"220H05881000B2TL4","61_0":"220H05881000B2TR4"},"active_ids":{"one_69":["0"],"two_0":["69","68","67","66","65","64","63","62","61"],"one_68":["0"],"one_67":["0"],"one_66":["0"],"one_65":["0"],"one_64":["0"],"one_63":["0"],"one_62":["0"],"one_61":["0"]},"variant_informations":{"69_0":{"additional_information":""},"68_0":{"additional_information":""},"67_0":{"additional_information":""},"66_0":{"additional_information":""},"65_0":{"additional_information":""},"64_0":{"additional_information":""},"63_0":{"additional_information":""},"62_0":{"additional_information":""},"61_0":{"additional_information":""}},"variant_stocks":{"69_0":"94","68_0":"99","67_0":"100","66_0":"99","65_0":"100","64_0":"100","63_0":"100","62_0":"100","61_0":"100"}}

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Side-Bottom Right Bottom Left

Cross-Left Bottom Top Right

Cross-Left Top-Right Bottom

Side-55cm Entry Left

Side-55cm Entry Right

Choose Quantity

Add to Cart

Planned Delivery

21.01.2025 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 20H

• Material =Steel

• Height=588 mm

• Width=1000 mm

• Color/Coating=Anthracite

• Number of Sections=8 Pieces

• Total Number of Profiles (Front + Back)=8+8 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=58 mm

• Wall to Center of Inlet=64 mm

• Wall Projection Distance=93 mm

• Radiator Thread Dimension=1/2"

• Water Volume=9,1 lt

• Weight=26,6 kg

• Boxed Weight=28,67 kg

• Box Size=64x106x9,6 cm

TAPPING OPTIONS

• Standard Entry=950 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

• Sides / Bottom Right-Left=1090mm

• Cross Up-Right / Down-Left=1090mm

• Cross Up-Left / Down-Right=1090mm

• Side - Right=550mm

• Side - Left=550mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 867 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1093Kcal/h

• Heat Output 55/45-20° ?t=30°C=444Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=1008 Watt

• Heat Output 90/70-20°?t=60°C=1271 Watt

• Heat Output 55/45-20°?t=30°C=517 Watt

Btu

• Heat Output 75/65-20°?t=50°C=3440 Btu

• Heat Output 90/70-20°?t=60°C=4335 Btu

• Heat Output 55/45-20°?t=30°C=1762 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day
