%45 Discount

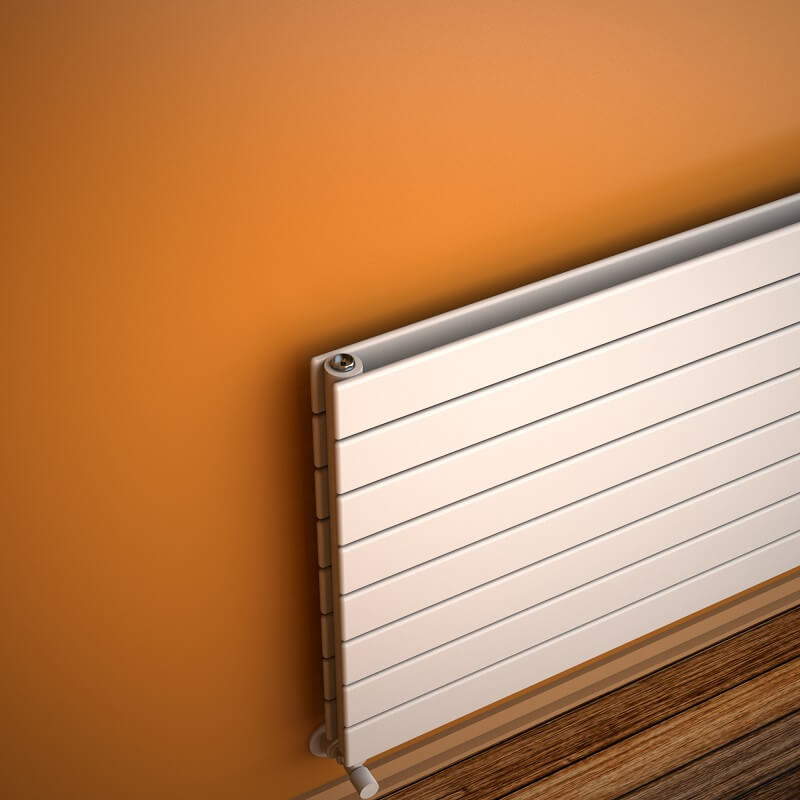

Type 20H Decorative Radiator 588x1300 White

Name: Type 20H Decorative Radiator 588x1300 White
SKU: 220H05881300B1PS
Price: 19601.34 TRY
Availability: InStock

Product Code : 220H05881300B1PS

Guarantee : 10 Year

TAXES Included

Price

35,638.80 TL

Discounted Price

19,601.34 TL

10 Years
Warranty

2000€ +
Free Shipping

{"vat":20,"m_o_p":0,"variant_ids":{"69_0":"6017","68_0":"14252","67_0":"11507","66_0":"8762","65_0":"16997","64_0":"18257","63_0":"19517","62_0":"22103","61_0":"21833"},"variant_prices":{"69_0":16334.45,"68_0":17214.45,"67_0":17214.45,"66_0":17214.45,"65_0":17214.45,"64_0":17214.45,"63_0":17214.45,"62_0":17214.45,"61_0":17214.45},"variant_price_raws":{"69_0":16334.45,"68_0":17214.45,"67_0":17214.45,"66_0":17214.45,"65_0":17214.45,"64_0":17214.45,"63_0":17214.45,"62_0":17214.45,"61_0":17214.45},"buying_prices":{"69_0":"0","68_0":"0","67_0":"0","66_0":"0","65_0":"0","64_0":"0","63_0":"0","62_0":"0","61_0":"0"},"not_discounted_prices":{"69_0":"29699","68_0":"31299","67_0":"31299","66_0":"31299","65_0":"31299","64_0":"31299","63_0":"31299","62_0":"31299","61_0":"31299"},"variant_supplier_codes":{"69_0":"220H05881300B1PS","68_0":"220H05881300B1PM1","67_0":"220H05881300B1PM3","66_0":"220H05881300B1PM2","65_0":"220H05881300B1PY0","64_0":"220H05881300B1PC1","63_0":"220H05881300B1PC2","62_0":"220H05881300B1PL4","61_0":"220H05881300B1PR4"},"active_ids":{"one_69":["0"],"two_0":["69","68","67","66","65","64","63","62","61"],"one_68":["0"],"one_67":["0"],"one_66":["0"],"one_65":["0"],"one_64":["0"],"one_63":["0"],"one_62":["0"],"one_61":["0"]},"variant_informations":{"69_0":{"additional_information":""},"68_0":{"additional_information":""},"67_0":{"additional_information":""},"66_0":{"additional_information":""},"65_0":{"additional_information":""},"64_0":{"additional_information":""},"63_0":{"additional_information":""},"62_0":{"additional_information":""},"61_0":{"additional_information":""}},"variant_stocks":{"69_0":"100","68_0":"98","67_0":"100","66_0":"100","65_0":"100","64_0":"100","63_0":"100","62_0":"100","61_0":"100"}}

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Side-Bottom Right Bottom Left

Cross-Left Bottom Top Right

Cross-Left Top-Right Bottom

Side-55cm Entry Left

Side-55cm Entry Right

Choose Quantity

Add to Cart

Planned Delivery

24.01.2025 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 20H

• Material =Steel

• Height=588 mm

• Width=1300 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=8 Pieces

• Total Number of Profiles (Front + Back)=8+8 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=58 mm

• Wall to Center of Inlet=64 mm

• Wall Projection Distance=93 mm

• Radiator Thread Dimension=1/2"

• Water Volume=11,4 lt

• Weight=34,1 kg

• Boxed Weight=36,7 kg

• Box Size=64x136x9,6 cm

TAPPING OPTIONS

• Standard Entry=1250 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

• Sides / Bottom Right-Left=1390mm

• Cross Up-Right / Down-Left=1390mm

• Cross Up-Left / Down-Right=1390mm

• Side - Right=550mm

• Side - Left=550mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 1127 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1421Kcal/h

• Heat Output 55/45-20° ?t=30°C=578Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=1310 Watt

• Heat Output 90/70-20°?t=60°C=1651 Watt

• Heat Output 55/45-20°?t=30°C=671 Watt

Btu

• Heat Output 75/65-20°?t=50°C=4470 Btu

• Heat Output 90/70-20°?t=60°C=5633 Btu

• Heat Output 55/45-20°?t=30°C=2289 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day

Tags

dizayn radyatör , dizayn panel radyatör fiyatları , dizayn panel radyatör , radyatör modelleri , radyatör fiyatları , radyatör petek , panel radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler

Other Colors

%45 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"69_0":"6017","68_0":"14252","67_0":"11507","66_0":"8762","65_0":"16997","64_0":"18257","63_0":"19517","62_0":"22103","61_0":"21833"},"variant_prices":{"69_0":16334.45,"68_0":17214.45,"67_0":17214.45,"66_0":17214.45,"65_0":17214.45,"64_0":17214.45,"63_0":17214.45,"62_0":17214.45,"61_0":17214.45},"variant_price_raws":{"69_0":16334.45,"68_0":17214.45,"67_0":17214.45,"66_0":17214.45,"65_0":17214.45,"64_0":17214.45,"63_0":17214.45,"62_0":17214.45,"61_0":17214.45},"buying_prices":{"69_0":"0","68_0":"0","67_0":"0","66_0":"0","65_0":"0","64_0":"0","63_0":"0","62_0":"0","61_0":"0"},"not_discounted_prices":{"69_0":"29699","68_0":"31299","67_0":"31299","66_0":"31299","65_0":"31299","64_0":"31299","63_0":"31299","62_0":"31299","61_0":"31299"},"variant_supplier_codes":{"69_0":"220H05881300B1PS","68_0":"220H05881300B1PM1","67_0":"220H05881300B1PM3","66_0":"220H05881300B1PM2","65_0":"220H05881300B1PY0","64_0":"220H05881300B1PC1","63_0":"220H05881300B1PC2","62_0":"220H05881300B1PL4","61_0":"220H05881300B1PR4"},"active_ids":{"one_69":["0"],"two_0":["69","68","67","66","65","64","63","62","61"],"one_68":["0"],"one_67":["0"],"one_66":["0"],"one_65":["0"],"one_64":["0"],"one_63":["0"],"one_62":["0"],"one_61":["0"]},"variant_informations":{"69_0":{"additional_information":""},"68_0":{"additional_information":""},"67_0":{"additional_information":""},"66_0":{"additional_information":""},"65_0":{"additional_information":""},"64_0":{"additional_information":""},"63_0":{"additional_information":""},"62_0":{"additional_information":""},"61_0":{"additional_information":""}},"variant_stocks":{"69_0":"100","68_0":"98","67_0":"100","66_0":"100","65_0":"100","64_0":"100","63_0":"100","62_0":"100","61_0":"100"}}

Type 20H Decorative Radiator 588x1300 White ∆t50°C=1127 Kcal/h | ∆t60°C= 1421 Kcal/h | 8 Pipes | Heats 8-22 m2

35,638.80 TL

19,601.34 TL
%45 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"69_0":"6018","68_0":"14253","67_0":"11508","66_0":"8763","65_0":"16998","64_0":"18258","63_0":"19518","62_0":"22104","61_0":"21834"},"variant_prices":{"69_0":20418.0625,"68_0":21298.0625,"67_0":21298.0625,"66_0":21298.0625,"65_0":21298.0625,"64_0":21298.0625,"63_0":21298.0625,"62_0":21298.0625,"61_0":21298.0625},"variant_price_raws":{"69_0":20418.0625,"68_0":21298.0625,"67_0":21298.0625,"66_0":21298.0625,"65_0":21298.0625,"64_0":21298.0625,"63_0":21298.0625,"62_0":21298.0625,"61_0":21298.0625},"buying_prices":{"69_0":"0","68_0":"0","67_0":"0","66_0":"0","65_0":"0","64_0":"0","63_0":"0","62_0":"0","61_0":"0"},"not_discounted_prices":{"69_0":"37123.75","68_0":"38723.75","67_0":"38723.75","66_0":"38723.75","65_0":"38723.75","64_0":"38723.75","63_0":"38723.75","62_0":"38723.75","61_0":"38723.75"},"variant_supplier_codes":{"69_0":"220H05881300B2TS","68_0":"220H05881300B2TM1","67_0":"220H05881300B2TM3","66_0":"220H05881300B2TM2","65_0":"220H05881300B2TY0","64_0":"220H05881300B2TC1","63_0":"220H05881300B2TC2","62_0":"220H05881300B2TL4","61_0":"220H05881300B2TR4"},"active_ids":{"one_69":["0"],"two_0":["69","68","67","66","65","64","63","62","61"],"one_68":["0"],"one_67":["0"],"one_66":["0"],"one_65":["0"],"one_64":["0"],"one_63":["0"],"one_62":["0"],"one_61":["0"]},"variant_informations":{"69_0":{"additional_information":""},"68_0":{"additional_information":""},"67_0":{"additional_information":""},"66_0":{"additional_information":""},"65_0":{"additional_information":""},"64_0":{"additional_information":""},"63_0":{"additional_information":""},"62_0":{"additional_information":""},"61_0":{"additional_information":""}},"variant_stocks":{"69_0":"100","68_0":"100","67_0":"100","66_0":"99","65_0":"100","64_0":"100","63_0":"100","62_0":"100","61_0":"99"}}

Type 20H Decorative Radiator 588x1300 Anthracite ∆t50°C=1127 Kcal/h | ∆t60°C= 1421 Kcal/h | 8 Pipes | Heats 8-22 m2

44,548.50 TL

24,501.68 TL
%45 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"69_0":"6020","68_0":"14255","67_0":"11510","66_0":"8765","65_0":"17000","64_0":"18260","63_0":"19520","62_0":"22106","61_0":"21836"},"variant_prices":{"69_0":20418.0625,"68_0":21298.0625,"67_0":21298.0625,"66_0":21298.0625,"65_0":21298.0625,"64_0":21298.0625,"63_0":21298.0625,"62_0":21298.0625,"61_0":21298.0625},"variant_price_raws":{"69_0":20418.0625,"68_0":21298.0625,"67_0":21298.0625,"66_0":21298.0625,"65_0":21298.0625,"64_0":21298.0625,"63_0":21298.0625,"62_0":21298.0625,"61_0":21298.0625},"buying_prices":{"69_0":"0","68_0":"0","67_0":"0","66_0":"0","65_0":"0","64_0":"0","63_0":"0","62_0":"0","61_0":"0"},"not_discounted_prices":{"69_0":"37123.75","68_0":"38723.75","67_0":"38723.75","66_0":"38723.75","65_0":"38723.75","64_0":"38723.75","63_0":"38723.75","62_0":"38723.75","61_0":"38723.75"},"variant_supplier_codes":{"69_0":"220H05881300B3MS","68_0":"220H05881300B3MM1","67_0":"220H05881300B3MM3","66_0":"220H05881300B3MM2","65_0":"220H05881300B3MY0","64_0":"220H05881300B3MC1","63_0":"220H05881300B3MC2","62_0":"220H05881300B3ML4","61_0":"220H05881300B3MR4"},"active_ids":{"one_69":["0"],"two_0":["69","68","67","66","65","64","63","62","61"],"one_68":["0"],"one_67":["0"],"one_66":["0"],"one_65":["0"],"one_64":["0"],"one_63":["0"],"one_62":["0"],"one_61":["0"]},"variant_informations":{"69_0":{"additional_information":""},"68_0":{"additional_information":""},"67_0":{"additional_information":""},"66_0":{"additional_information":""},"65_0":{"additional_information":""},"64_0":{"additional_information":""},"63_0":{"additional_information":""},"62_0":{"additional_information":""},"61_0":{"additional_information":""}},"variant_stocks":{"69_0":"100","68_0":"100","67_0":"100","66_0":"100","65_0":"100","64_0":"100","63_0":"100","62_0":"100","61_0":"100"}}

Type 20H Decorative Radiator 588x1300 Matte Black ∆t50°C=1127 Kcal/h | ∆t60°C= 1421 Kcal/h | 8 Pipes | Heats 8-22 m2

44,548.50 TL

24,501.68 TL
%45 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"69_0":"6019","68_0":"14254","67_0":"11509","66_0":"8764","65_0":"16999","64_0":"18259","63_0":"19519","62_0":"22105","61_0":"21835"},"variant_prices":{"69_0":22162.8,"68_0":23042.8,"67_0":23042.8,"66_0":23042.8,"65_0":23042.8,"64_0":23042.8,"63_0":23042.8,"62_0":23042.8,"61_0":23042.8},"variant_price_raws":{"69_0":22162.8,"68_0":23042.8,"67_0":23042.8,"66_0":23042.8,"65_0":23042.8,"64_0":23042.8,"63_0":23042.8,"62_0":23042.8,"61_0":23042.8},"buying_prices":{"69_0":"0","68_0":"0","67_0":"0","66_0":"0","65_0":"0","64_0":"0","63_0":"0","62_0":"0","61_0":"0"},"not_discounted_prices":{"69_0":"40296","68_0":"41896","67_0":"41896","66_0":"41896","65_0":"41896","64_0":"41896","63_0":"41896","62_0":"41896","61_0":"41896"},"variant_supplier_codes":{"69_0":"220H05881300K6FS","68_0":"220H05881300K6FM1","67_0":"220H05881300K6FM3","66_0":"220H05881300K6FM2","65_0":"220H05881300K6FY0","64_0":"220H05881300K6FC1","63_0":"220H05881300K6FC2","62_0":"220H05881300K6FL4","61_0":"220H05881300K6FR4"},"active_ids":{"one_69":["0"],"two_0":["69","68","67","66","65","64","63","62","61"],"one_68":["0"],"one_67":["0"],"one_66":["0"],"one_65":["0"],"one_64":["0"],"one_63":["0"],"one_62":["0"],"one_61":["0"]},"variant_informations":{"69_0":{"additional_information":""},"68_0":{"additional_information":""},"67_0":{"additional_information":""},"66_0":{"additional_information":""},"65_0":{"additional_information":""},"64_0":{"additional_information":""},"63_0":{"additional_information":""},"62_0":{"additional_information":""},"61_0":{"additional_information":""}},"variant_stocks":{"69_0":"100","68_0":"100","67_0":"100","66_0":"100","65_0":"100","64_0":"100","63_0":"100","62_0":"100","61_0":"100"}}

Type 20H Decorative Radiator 588x1300 Wood Effect ∆t50°C=1127 Kcal/h | ∆t60°C= 1421 Kcal/h | 8 Pipes | Heats 8-22 m2

48,355.20 TL

26,595.36 TL
