TECHNICAL INFORMATION

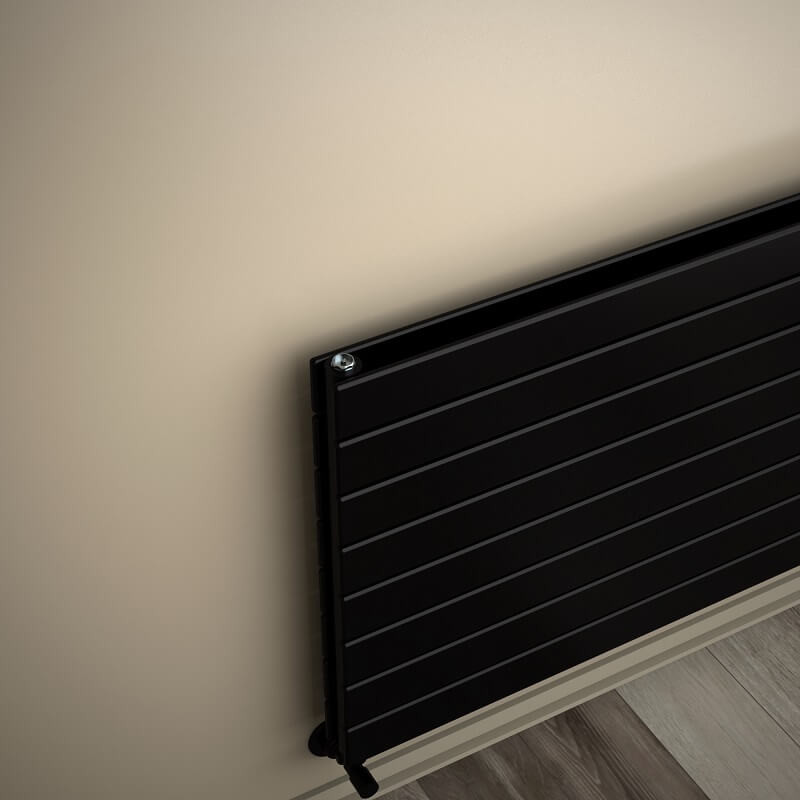

• Model = 20H
• Material =Steel
• Height=588 mm
• Width=1400 mm
• Color/Coating=Matte Black RAL9005
• Number of Sections=8 Pieces
• Total Number of Profiles (Front + Back)=8+8 Pieces
• Profile Dimension=70x11 mm
• Collector Dimension=38 mm
• Maximum Working Pressure=4,5 bar
• Radiator Depth=58 mm
• Wall to Center of Inlet=64 mm
• Wall Projection Distance=93 mm
• Radiator Thread Dimension=1/2"
• Water Volume=12,2 lt
• Weight=36,6 kg
• Boxed Weight=39,37 kg
• Box Size=64x146x9,6 cmTAPPING OPTIONS
• Standard Entry=1350 mm
• Bottom Middle Entrance=50mm
• Bottom Right Entrance=50mm
• Bottom Left Entrance=50mm
• Sides / Bottom Right-Left=1490mm
• Cross Up-Right / Down-Left=1490mm
• Cross Up-Left / Down-Right=1490mm
• Side - Right=550mm
• Side - Left=550mmHeat Output
Kcal / h
• Heat Output 75/65-20°?t=50°C = 1214 Kcal/h
• Heat Output 90/70-20° ?t=60°C=1530Kcal/h
• Heat Output 55/45-20° ?t=30°C=622Kcal/h
Watts
• Heat Output 75/65-20°?t=50°C=1411 Watt
• Heat Output 90/70-20°?t=60°C=1778 Watt
• Heat Output 55/45-20°?t=30°C=723 Watt
Btu
• Heat Output 75/65-20°?t=50°C=4815 Btu
• Heat Output 90/70-20°?t=60°C=6067 Btu
• Heat Output 55/45-20°?t=30°C=2466 Btu
Warranty:10 YearsDelivery Information:21 Day
