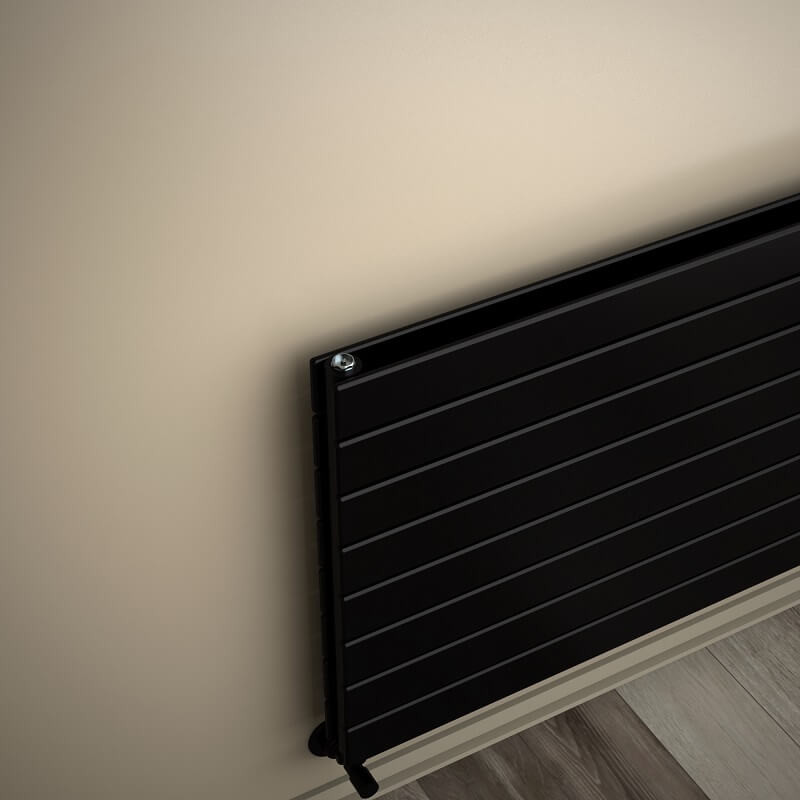

Type 20H Decorative Radiator 588x1600 Matte Black

Product Code : 220H05881600B3MS
Guarantee : 10 Year
TAXES Included
Price
:
53,023.50 TL
Discounted Price
:
29,162.93 TL
<p>10 Year Warranty</p>
10 Years
Warranty
Kargo Bedava
2000€ +
Free Shipping
Options

Standard Entry Standard Entry

Bottom Middle 50mm Bottom Middle 50mm

Bottom Left 50mm Bottom Left 50mm

Bottom Right 50mm Bottom Right 50mm

Side-Bottom Right Bottom Left Side-Bottom Right Bottom Left

Cross-Left Bottom Top Right Cross-Left Bottom Top Right

Cross-Left Top-Right Bottom Cross-Left Top-Right Bottom

Side-55cm Entry Left Side-55cm Entry Left

Side-55cm Entry Right Side-55cm Entry Right

Choose Quantity
Planned Delivery
:
24.01.2025 (21 Days)
İnstagram Takip Et
Campaign
  • Features
  • Downloads
  • Payment Options
  • Comments (0)

  • TECHNICAL INFORMATION

    • Model = 20H

    • Material =Steel

    • Height    =588 mm

    • Width=1600 mm

    • Color/Coating=Matte Black RAL9005

    • Number of Sections=8 Pieces

    • Total Number of Profiles (Front + Back)=8+8 Pieces

    • Profile Dimension=70x11 mm

    • Collector Dimension=38 mm

    • Maximum Working Pressure=4,5 bar

    • Radiator Depth=58 mm

    • Wall to Center of Inlet=64 mm

    • Wall Projection Distance=93 mm

    • Radiator Thread Dimension=1/2"

    • Water Volume=13,8 lt

    • Weight=41,6 kg

    • Boxed Weight    =44,73 kg

    • Box Size=64x166x9,6 cm


    TAPPING OPTIONS




    • Standard Entry=1550 mm

    • Bottom Middle Entrance=50mm

    • Bottom Right Entrance=50mm

    • Bottom Left Entrance=50mm

    • Sides / Bottom Right-Left=1690mm

    • Cross Up-Right / Down-Left=1690mm

    • Cross Up-Left / Down-Right=1690mm

    • Side - Right=550mm

    • Side - Left=550mm


    Heat Output




    Kcal / h


    • Heat Output 75/65-20°?t=50°C = 1387 Kcal/h

    • Heat Output 90/70-20° ?t=60°C=1748Kcal/h

    • Heat Output 55/45-20° ?t=30°C=711Kcal/h


    Watts

    • Heat Output 75/65-20°?t=50°C=1612 Watt

    • Heat Output 90/70-20°?t=60°C=2032 Watt

    • Heat Output 55/45-20°?t=30°C=826 Watt


    Btu

    • Heat Output 75/65-20°?t=50°C=5501 Btu

    • Heat Output 90/70-20°?t=60°C=6932 Btu

    • Heat Output 55/45-20°?t=30°C=2817 Btu
    Warranty
    :
    10 Years
    Delivery Information
    :
    21 Day
    Tags
    panel radyatör , radyatör petek , radyatör fiyatları , radyatör modelleri , dizayn panel radyatör , dizayn panel radyatör fiyatları , dizayn radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler , siyah radyatör , mat siyah radyatör
Other Colors

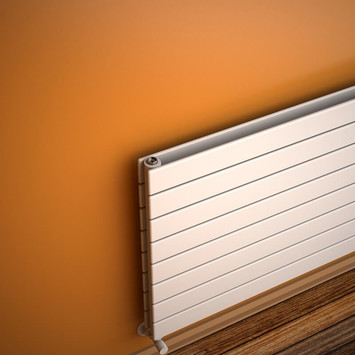

  • %45 Discount - Type 20H Decorative Radiator 588x1600 White
    AKS Seçenekleri
    Type 20H Decorative Radiator 588x1600 White ∆t50°C=1386 Kcal/h | ∆t60°C= 1747 Kcal/h | 8 Pipes | Heats 9-27 m2
    42,418.80 TL
    23,330.34 TL

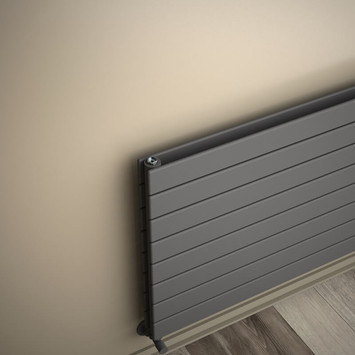

  • %45 Discount - Type 20H Decorative Radiator 588x1600 Anthracite
    AKS Seçenekleri
    Type 20H Decorative Radiator 588x1600 Anthracite ∆t50°C=1386 Kcal/h | ∆t60°C= 1747 Kcal/h | 8 Pipes | Heats 9-27 m2
    53,023.50 TL
    29,162.93 TL
  • %45 Discount - Type 20H Decorative Radiator 588x1600 Matte Black
    AKS Seçenekleri
    Type 20H Decorative Radiator 588x1600 Matte Black ∆t50°C=1386 Kcal/h | ∆t60°C= 1747 Kcal/h | 8 Pipes | Heats 9-27 m2
    53,023.50 TL
    29,162.93 TL
  • %45 Discount - Type 20H Decorative Radiator 588x1600 Wood Effect
    AKS Seçenekleri
    Type 20H Decorative Radiator 588x1600 Wood Effect ∆t50°C=1386 Kcal/h | ∆t60°C= 1747 Kcal/h | 8 Pipes | Heats 9-27 m2
    56,815.20 TL
    31,248.36 TL
