%45 Discount

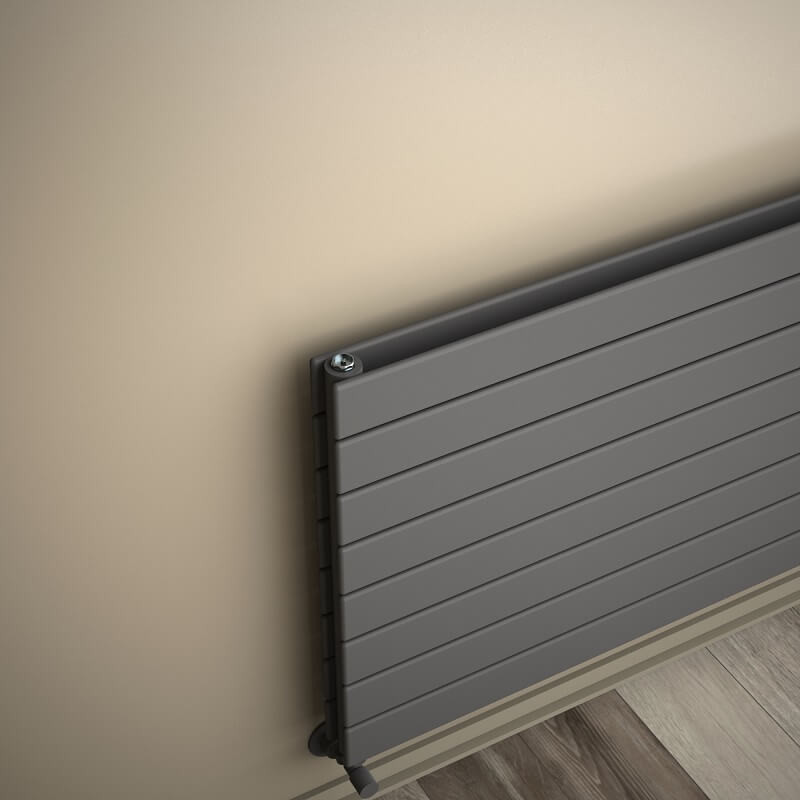

Type 20H Decorative Radiator 588x1800 Anthracite

Name: Type 20H Decorative Radiator 588x1800 Anthracite
SKU: 220H05881800B2TS
Price: 32289.68 TRY
Availability: InStock

Product Code : 220H05881800B2TS

Guarantee : 10 Year

TAXES Included

Price

58,708.50 TL

Discounted Price

32,289.68 TL

10 Years
Warranty

2000€ +
Free Shipping

{"vat":20,"m_o_p":0,"variant_ids":{"69_0":"6038","68_0":"14273","67_0":"11528","66_0":"8783","65_0":"17018","64_0":"18278","63_0":"19538","62_0":"22124","61_0":"21854"},"variant_prices":{"69_0":26908.0625,"68_0":27788.0625,"67_0":27788.0625,"66_0":27788.0625,"65_0":27788.0625,"64_0":27788.0625,"63_0":27788.0625,"62_0":27788.0625,"61_0":27788.0625},"variant_price_raws":{"69_0":26908.0625,"68_0":27788.0625,"67_0":27788.0625,"66_0":27788.0625,"65_0":27788.0625,"64_0":27788.0625,"63_0":27788.0625,"62_0":27788.0625,"61_0":27788.0625},"buying_prices":{"69_0":"0","68_0":"0","67_0":"0","66_0":"0","65_0":"0","64_0":"0","63_0":"0","62_0":"0","61_0":"0"},"not_discounted_prices":{"69_0":"48923.75","68_0":"50523.75","67_0":"50523.75","66_0":"50523.75","65_0":"50523.75","64_0":"50523.75","63_0":"50523.75","62_0":"50523.75","61_0":"50523.75"},"variant_supplier_codes":{"69_0":"220H05881800B2TS","68_0":"220H05881800B2TM1","67_0":"220H05881800B2TM3","66_0":"220H05881800B2TM2","65_0":"220H05881800B2TY0","64_0":"220H05881800B2TC1","63_0":"220H05881800B2TC2","62_0":"220H05881800B2TL4","61_0":"220H05881800B2TR4"},"active_ids":{"one_69":["0"],"two_0":["69","68","67","66","65","64","63","62","61"],"one_68":["0"],"one_67":["0"],"one_66":["0"],"one_65":["0"],"one_64":["0"],"one_63":["0"],"one_62":["0"],"one_61":["0"]},"variant_informations":{"69_0":{"additional_information":""},"68_0":{"additional_information":""},"67_0":{"additional_information":""},"66_0":{"additional_information":""},"65_0":{"additional_information":""},"64_0":{"additional_information":""},"63_0":{"additional_information":""},"62_0":{"additional_information":""},"61_0":{"additional_information":""}},"variant_stocks":{"69_0":"99","68_0":"100","67_0":"99","66_0":"100","65_0":"100","64_0":"100","63_0":"100","62_0":"100","61_0":"99"}}

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Side-Bottom Right Bottom Left

Cross-Left Bottom Top Right

Cross-Left Top-Right Bottom

Side-55cm Entry Left

Side-55cm Entry Right

Choose Quantity

Add to Cart

Planned Delivery

24.01.2025 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 20H

• Material =Steel

• Height=588 mm

• Width=1800 mm

• Color/Coating=Anthracite

• Number of Sections=8 Pieces

• Total Number of Profiles (Front + Back)=8+8 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=58 mm

• Wall to Center of Inlet=64 mm

• Wall Projection Distance=93 mm

• Radiator Thread Dimension=1/2"

• Water Volume=15,4 lt

• Weight=46,6 kg

• Boxed Weight=50,08 kg

• Box Size=64x186x9,6 cm

TAPPING OPTIONS

• Standard Entry=1750 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

• Sides / Bottom Right-Left=1890mm

• Cross Up-Right / Down-Left=1890mm

• Cross Up-Left / Down-Right=1890mm

• Side - Right=550mm

• Side - Left=550mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 1561 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1967Kcal/h

• Heat Output 55/45-20° ?t=30°C=800Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=1814 Watt

• Heat Output 90/70-20°?t=60°C=2286 Watt

• Heat Output 55/45-20°?t=30°C=929 Watt

Btu

• Heat Output 75/65-20°?t=50°C=6190 Btu

• Heat Output 90/70-20°?t=60°C=7800 Btu

• Heat Output 55/45-20°?t=30°C=3170 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day
