TECHNICAL INFORMATION

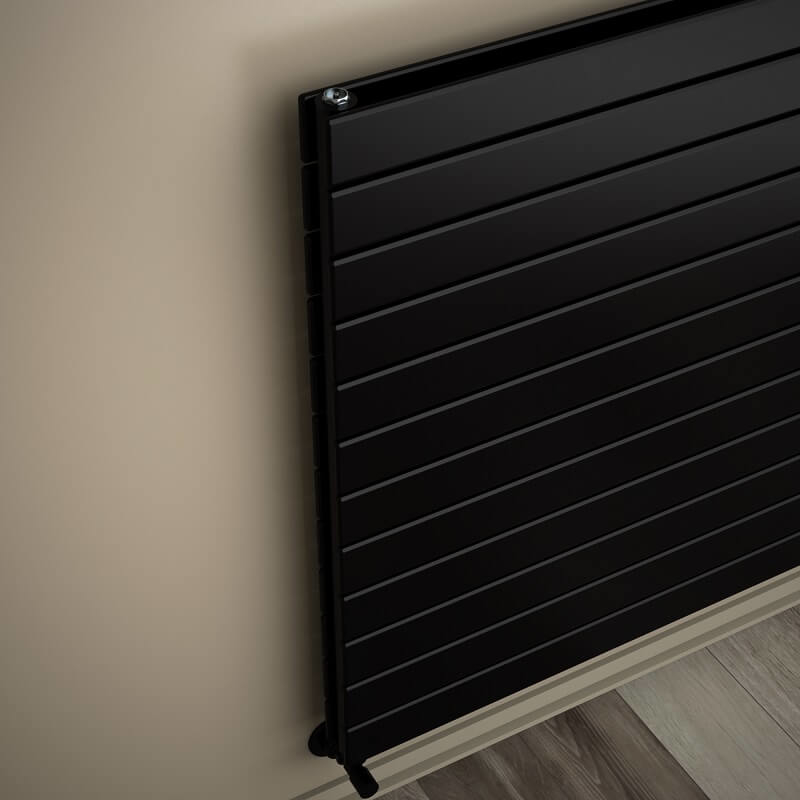

• Model = 20H
• Material =Steel
• Height=884 mm
• Width=1400 mm
• Color/Coating=Matte Black RAL9005
• Number of Sections=12 Pieces
• Total Number of Profiles (Front + Back)=12+12 Pieces
• Profile Dimension=70x11 mm
• Collector Dimension=38 mm
• Maximum Working Pressure=4,5 bar
• Radiator Depth=58 mm
• Wall to Center of Inlet=64 mm
• Wall Projection Distance=93 mm
• Radiator Thread Dimension=1/2"
• Water Volume=18,4 lt
• Weight=54,9 kg
• Boxed Weight=58,92 kg
• Box Size=94x146x9,6 cmTAPPING OPTIONS
• Standard Entry=1350 mm
• Bottom Middle Entrance=50mm
• Bottom Right Entrance=50mm
• Bottom Left Entrance=50mm
• Sides / Bottom Right-Left=1490mm
• Cross Up-Right / Down-Left=1490mm
• Cross Up-Left / Down-Right=1490mm
• Side - Right=850mm
• Side - Left=850mmHeat Output
Kcal / h
• Heat Output 75/65-20°?t=50°C = 1677 Kcal/h
• Heat Output 90/70-20° ?t=60°C=2114Kcal/h
• Heat Output 55/45-20° ?t=30°C=859Kcal/h
Watts
• Heat Output 75/65-20°?t=50°C=1949 Watt
• Heat Output 90/70-20°?t=60°C=2456 Watt
• Heat Output 55/45-20°?t=30°C=998 Watt
Btu
• Heat Output 75/65-20°?t=50°C=6650 Btu
• Heat Output 90/70-20°?t=60°C=8379 Btu
• Heat Output 55/45-20°?t=30°C=3405 Btu
Warranty:10 YearsDelivery Information:21 Day
Other Colors
-
%45 DiscountAKS SeçenekleriType 20H Decorative Radiator 884x1400 White ∆t50°C=1676 Kcal/h | ∆t60°C= 2113 Kcal/h | 12 Pipes | Heats 11-33 m2
-
%45 DiscountAKS SeçenekleriType 20H Decorative Radiator 884x1400 Anthracite ∆t50°C=1676 Kcal/h | ∆t60°C= 2113 Kcal/h | 12 Pipes | Heats 11-33 m2
-
%45 DiscountAKS SeçenekleriType 20H Decorative Radiator 884x1400 Matte Black ∆t50°C=1676 Kcal/h | ∆t60°C= 2113 Kcal/h | 12 Pipes | Heats 11-33 m2
-
%45 DiscountAKS SeçenekleriType 20H Decorative Radiator 884x1400 Wood Effect ∆t50°C=1676 Kcal/h | ∆t60°C= 2113 Kcal/h | 12 Pipes | Heats 11-33 m2
