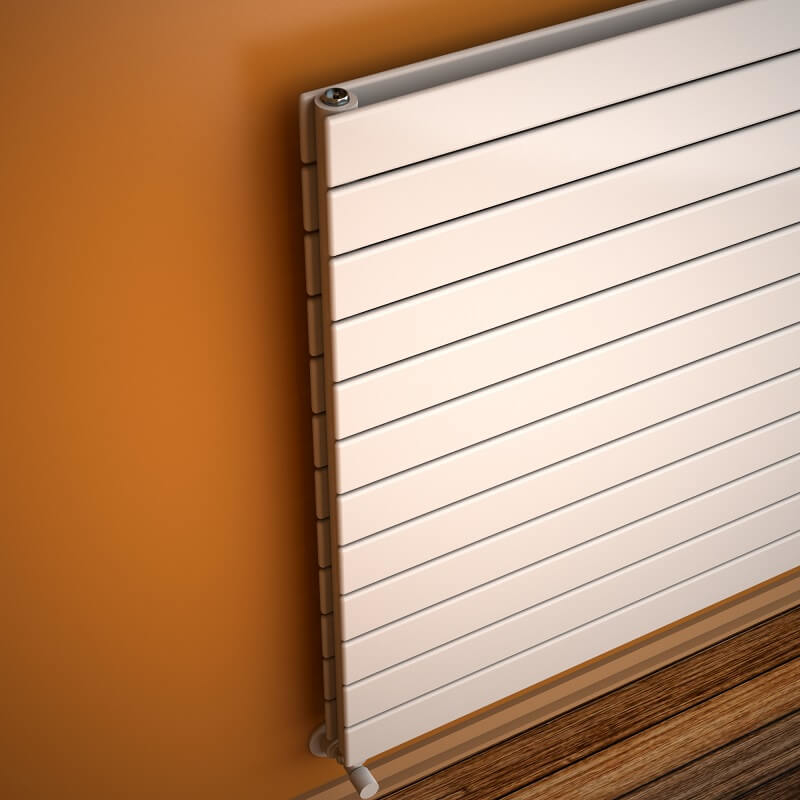

Type 20H Decorative Radiator 884x1900 White

Name: Type 20H Decorative Radiator 884x1900 White
SKU: 220H08841900B1PS
Price: 39338.64 TRY
Availability: InStock

Product Code : 220H08841900B1PS

Guarantee : 10 Year

TAXES Included

Price

71,524.80 TL

Discounted Price

39,338.64 TL

10 Years
Warranty

2000€ +
Free Shipping

{"vat":20,"m_o_p":0,"variant_ids":{"77_0":"6293","76_0":"14528","75_0":"11783","74_0":"9038","73_0":"17273","72_0":"18533","71_0":"19793","70_0":"22415","78_0":"22751"},"variant_prices":{"77_0":32782.2,"76_0":33662.2,"75_0":33662.2,"74_0":33662.2,"73_0":33662.2,"72_0":33662.2,"71_0":33662.2,"70_0":33662.2,"78_0":33662.2},"variant_price_raws":{"77_0":32782.2,"76_0":33662.2,"75_0":33662.2,"74_0":33662.2,"73_0":33662.2,"72_0":33662.2,"71_0":33662.2,"70_0":33662.2,"78_0":33662.2},"buying_prices":{"77_0":"0","76_0":"0","75_0":"0","74_0":"0","73_0":"0","72_0":"0","71_0":"0","70_0":"0","78_0":"0"},"not_discounted_prices":{"77_0":"59604","76_0":"61204","75_0":"61204","74_0":"61204","73_0":"61204","72_0":"61204","71_0":"61204","70_0":"61204","78_0":"61204"},"variant_supplier_codes":{"77_0":"220H08841900B1PS","76_0":"220H08841900B1PM1","75_0":"220H08841900B1PM3","74_0":"220H08841900B1PM2","73_0":"220H08841900B1PY0","72_0":"220H08841900B1PC1","71_0":"220H08841900B1PC2","70_0":"220H08841900B1PR5","78_0":"220H08841900B1PL5"},"active_ids":{"one_77":["0"],"two_0":["77","76","75","74","73","72","71","70","78"],"one_76":["0"],"one_75":["0"],"one_74":["0"],"one_73":["0"],"one_72":["0"],"one_71":["0"],"one_70":["0"],"one_78":["0"]},"variant_informations":{"77_0":{"additional_information":""},"76_0":{"additional_information":""},"75_0":{"additional_information":""},"74_0":{"additional_information":""},"73_0":{"additional_information":""},"72_0":{"additional_information":""},"71_0":{"additional_information":""},"70_0":{"additional_information":""},"78_0":{"additional_information":""}},"variant_stocks":{"77_0":"100","76_0":"100","75_0":"100","74_0":"100","73_0":"100","72_0":"100","71_0":"100","70_0":"100","78_0":"100"}}

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Side-Bottom Right Bottom Left

Cross-Left Bottom Top Right

Cross-Left Top-Right Bottom

Side-85cm Entry Right

Side-85cm Entry Left

Choose Quantity

Add to Cart

Planned Delivery

21.01.2025 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 20H

• Material =Steel

• Height=884 mm

• Width=1900 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=12 Pieces

• Total Number of Profiles (Front + Back)=12+12 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=58 mm

• Wall to Center of Inlet=64 mm

• Wall Projection Distance=93 mm

• Radiator Thread Dimension=1/2"

• Water Volume=24,3 lt

• Weight=73,6 kg

• Boxed Weight=78,94 kg

• Box Size=94x196x9,6 cm

TAPPING OPTIONS

• Standard Entry=1850 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

• Sides / Bottom Right-Left=1990mm

• Cross Up-Right / Down-Left=1990mm

• Cross Up-Left / Down-Right=1990mm

• Side - Right=850mm

• Side - Left=850mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 2275 Kcal/h

• Heat Output 90/70-20° ?t=60°C=2867Kcal/h

• Heat Output 55/45-20° ?t=30°C=1165Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=2645 Watt

• Heat Output 90/70-20°?t=60°C=3333 Watt

• Heat Output 55/45-20°?t=30°C=1355 Watt

Btu

• Heat Output 75/65-20°?t=50°C=9025 Btu

• Heat Output 90/70-20°?t=60°C=11372 Btu

• Heat Output 55/45-20°?t=30°C=4621 Btu
