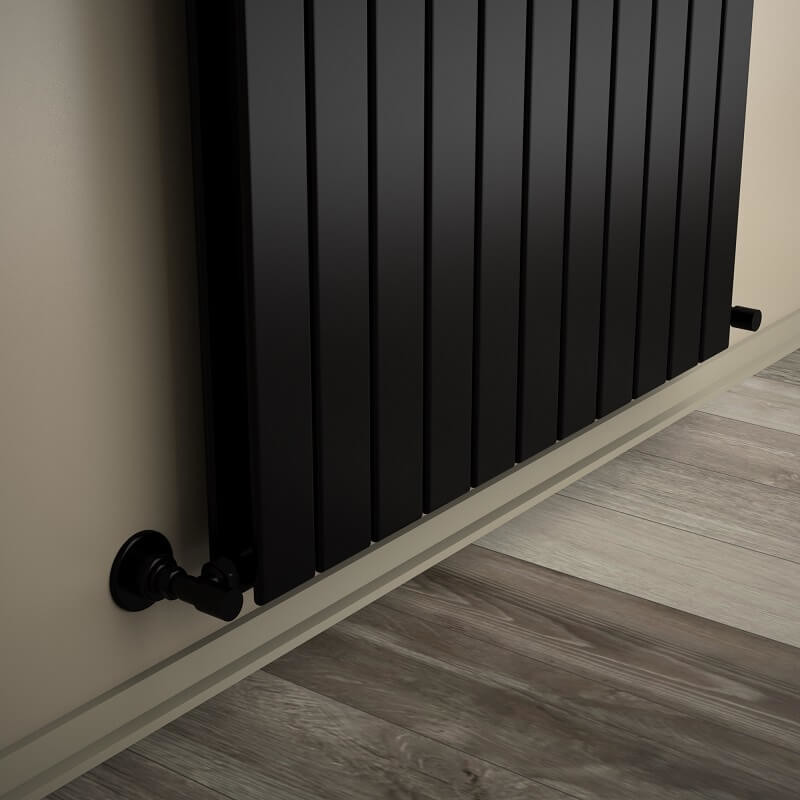

Type 20V Decorative Radiator 1200x810 Matte Black

Name: Type 20V Decorative Radiator 1200x810 Matte Black
SKU: 220V12000810B3MS
Price: 30356.70 TRY
Availability: InStock

Product Code : 220V12000810B3MS

Guarantee : 10 Year

TAXES Included

Price

55,194.00 TL

Discounted Price

30,356.70 TL

10 Years
Warranty

2000€ +
Free Shipping

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Choose Quantity

Add to Cart

Planned Delivery

21.01.2025 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 20V

• Material =Steel

• Height=1200 mm

• Width=810 mm

• Color/Coating=Matte Black RAL9005

• Number of Sections=11 Pieces

• Total Number of Profiles (Front + Back)=11+11 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=58 mm

• Wall to Center of Inlet=64 mm

• Wall Projection Distance=93 mm

• Radiator Thread Dimension=1/2"

• Water Volume=14,7 lt

• Weight=43,5 kg

• Boxed Weight=46,72 kg

• Box Size=85x125x9,6 cm

TAPPING OPTIONS

• Standard Entry1 =900 mm

• Standard Entry2 =1150 mm

• Standard Entry Cross =900 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 1396 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1759Kcal/h

• Heat Output 55/45-20° ?t=30°C=715 Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=1623 Watt

• Heat Output 90/70-20°?t=60°C=2045 Watt

• Heat Output 55/45-20°?t=30°C=831 Watt

Btu

• Heat Output 75/65-20°?t=50°C=5538 Btu

• Heat Output 90/70-20°?t=60°C=6978 Btu

• Heat Output 55/45-20°?t=30°C=2836 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day

Tags

radyatör fiyatları , radyatör modelleri , dizayn panel radyatör , dizayn panel radyatör fiyatları , dizayn radyatör , dikey radyatör , radyatör petek , panel radyatör , panel radyatör modelleri , siyah radyatör , mat siyah radyatör
