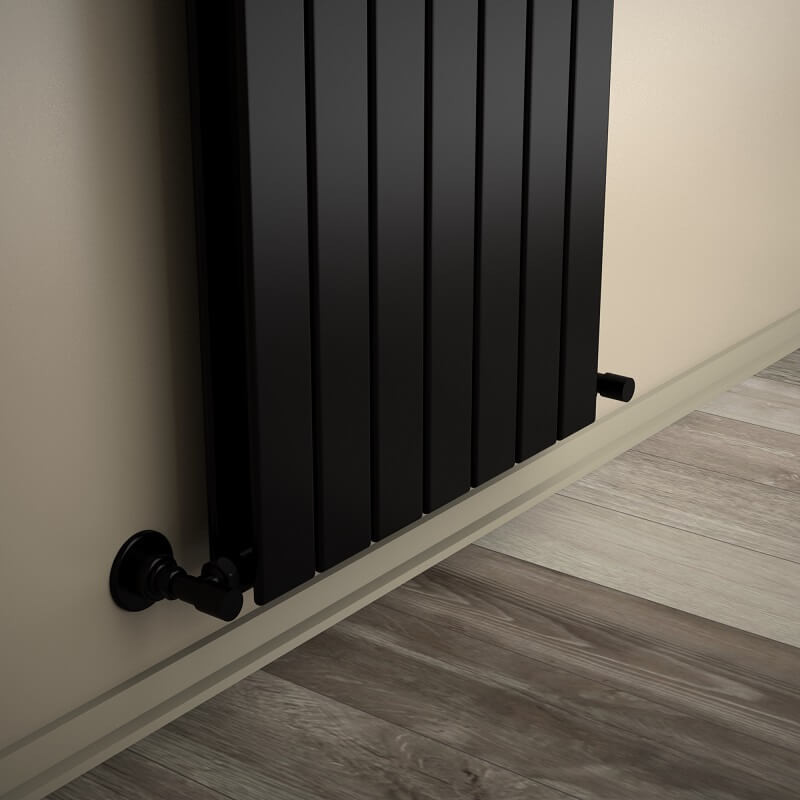

Type 20V Decorative Radiator 1500x514 Matte Black

Name: Type 20V Decorative Radiator 1500x514 Matte Black
SKU: 220V15000514B3MS
Price: 24558.60 TRY
Availability: InStock

Product Code : 220V15000514B3MS

Guarantee : 10 Year

TAXES Included

Price

44,652.00 TL

Discounted Price

24,558.60 TL

10 Years
Warranty

2000€ +
Free Shipping

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Choose Quantity

Add to Cart

Planned Delivery

24.01.2025 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 20V

• Material =Steel

• Height=1500 mm

• Width=514 mm

• Color/Coating=Matte Black RAL9005

• Number of Sections=7 Pieces

• Total Number of Profiles (Front + Back)=7+7 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=58 mm

• Wall to Center of Inlet=64 mm

• Wall Projection Distance=93 mm

• Radiator Thread Dimension=1/2"

• Water Volume=11,4 lt

• Weight=34,2 kg

• Boxed Weight=36,82 kg

• Box Size=56x155x9,6 cm

TAPPING OPTIONS

• Standard Entry1 =604 mm

• Standard Entry2 =1450 mm

• Standard Entry Cross =604 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 1075 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1355Kcal/h

• Heat Output 55/45-20° ?t=30°C=551 Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=1250 Watt

• Heat Output 90/70-20°?t=60°C=1575 Watt

• Heat Output 55/45-20°?t=30°C=640 Watt

Btu

• Heat Output 75/65-20°?t=50°C=4265 Btu

• Heat Output 90/70-20°?t=60°C=5374 Btu

• Heat Output 55/45-20°?t=30°C=2184 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day

Tags

radyatör fiyatları , radyatör modelleri , dizayn panel radyatör , dizayn panel radyatör fiyatları , dizayn radyatör , dikey radyatör , radyatör petek , panel radyatör , panel radyatör modelleri , siyah radyatör , mat siyah radyatör
