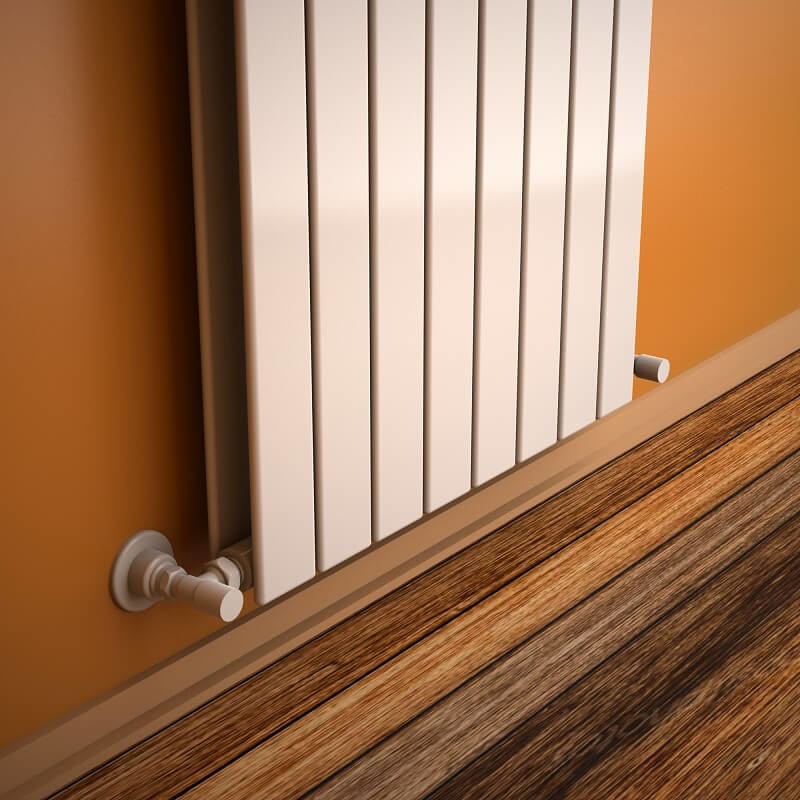

Type 20V Decorative Radiator 1500x588 White

Name: Type 20V Decorative Radiator 1500x588 White
SKU: 220V15000588B1PS
Price: 22102.74 TRY
Availability: InStock

Product Code : 220V15000588B1PS

Guarantee : 10 Year

TAXES Included

Price

40,186.80 TL

Discounted Price

22,102.74 TL

10 Years
Warranty

2000€ +
Free Shipping

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Choose Quantity

Add to Cart

Planned Delivery

20.01.2025 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 20V

• Material =Steel

• Height=1500 mm

• Width=588 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=8 Pieces

• Total Number of Profiles (Front + Back)=8+8 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=58 mm

• Wall to Center of Inlet=64 mm

• Wall Projection Distance=93 mm

• Radiator Thread Dimension=1/2"

• Water Volume=13 lt

• Weight=39,1 kg

• Boxed Weight=42,05 kg

• Box Size=63x155x9,6 cm

TAPPING OPTIONS

• Standard Entry1 =678 mm

• Standard Entry2 =1450 mm

• Standard Entry Cross =678 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 1229 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1549Kcal/h

• Heat Output 55/45-20° ?t=30°C=630 Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=1428 Watt

• Heat Output 90/70-20°?t=60°C=1800 Watt

• Heat Output 55/45-20°?t=30°C=732 Watt

Btu

• Heat Output 75/65-20°?t=50°C=4873 Btu

• Heat Output 90/70-20°?t=60°C=6140 Btu

• Heat Output 55/45-20°?t=30°C=2495 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day

Tags

dikey radyatör , dizayn radyatör , dizayn panel radyatör fiyatları , dizayn panel radyatör , radyatör modelleri , radyatör fiyatları , radyatör petek , panel radyatör , panel radyatör modelleri
