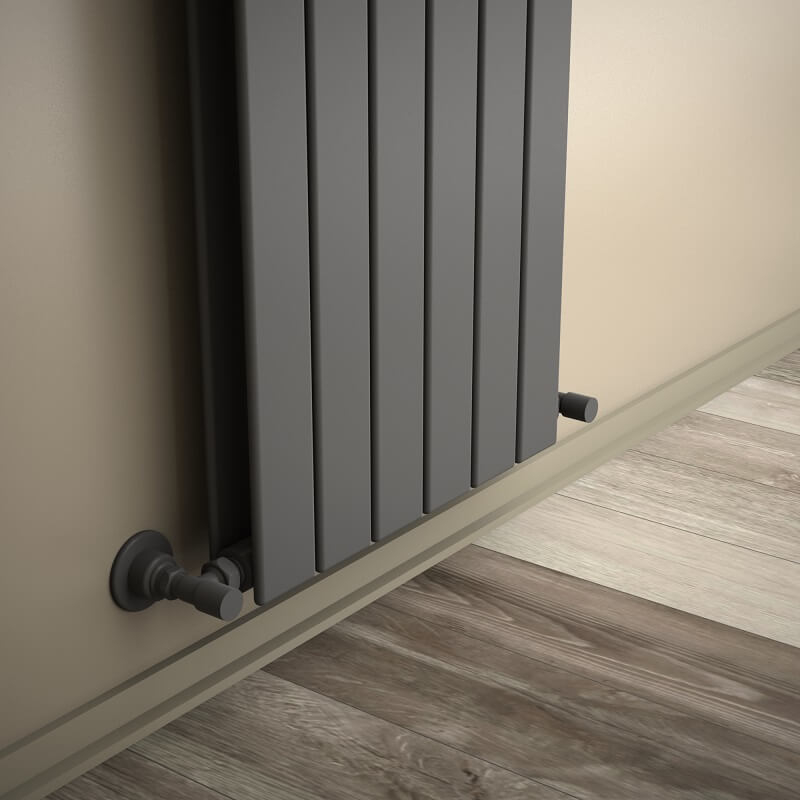

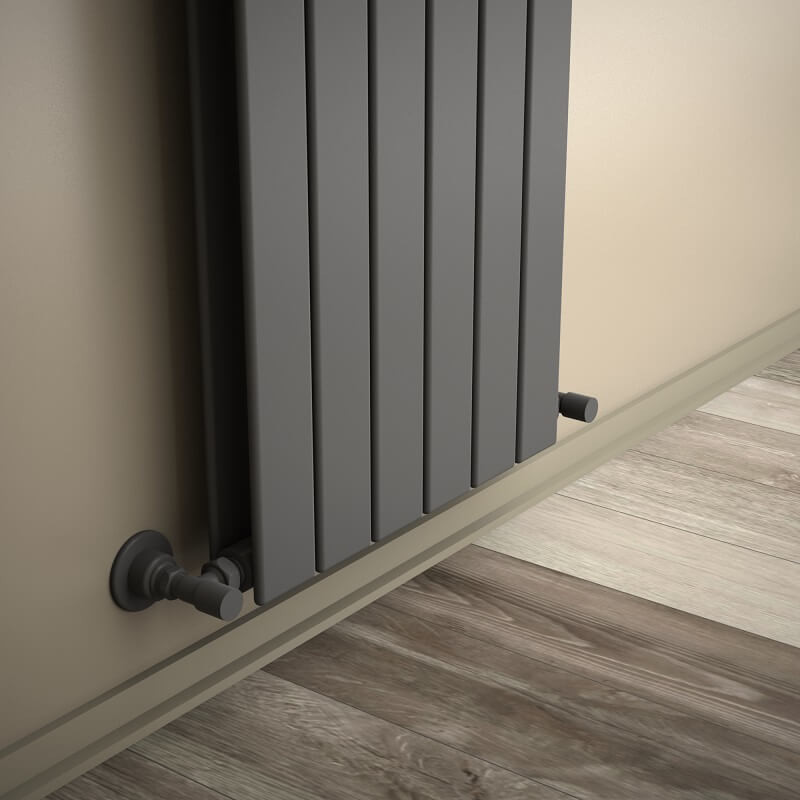

Type 20V Decorative Radiator 1600x440 Anthracite

Product Code : 220V16000440B2TS
Guarantee : 10 Year
TAXES Included
Price
:
41,241.00 TL
Discounted Price
:
22,682.55 TL
<p>10 Year Warranty</p>
10 Years
Warranty
Kargo Bedava
2000€ +
Free Shipping
Options

Standard Entry Standard Entry

Bottom Middle 50mm Bottom Middle 50mm

Bottom Left 50mm Bottom Left 50mm

Bottom Right 50mm Bottom Right 50mm

Choose Quantity
Planned Delivery
:
24.01.2025 (21 Days)
İnstagram Takip Et
Campaign
  • Features
  • Downloads
  • Payment Options
  • Comments (0)

  • TECHNICAL INFORMATION

    • Model = 20V

    • Material =Steel

    • Height    =1600 mm

    • Width=440 mm

    • Color/Coating=Anthracite

    • Number of Sections=6 Pieces

    • Total Number of Profiles (Front + Back)=6+6 Pieces

    • Profile Dimension=70x11 mm

    • Collector Dimension=38 mm

    • Maximum Working Pressure=4,5 bar

    • Radiator Depth=58 mm

    • Wall to Center of Inlet=64 mm

    • Wall Projection Distance=93 mm

    • Radiator Thread Dimension=1/2"

    • Water Volume=10,4 lt

    • Weight=31,2 kg

    • Boxed Weight    =33,62 kg

    • Box Size=48x165x9,6 cm


    TAPPING OPTIONS




    • Standard Entry1 =530 mm

    • Standard Entry2 =1550 mm

    • Standard Entry Cross =530 mm

    • Bottom Middle Entrance=50mm

    • Bottom Right Entrance=50mm

    • Bottom Left Entrance=50mm


    Heat Output




    Kcal / h


    • Heat Output 75/65-20°?t=50°C = 973 Kcal/h

    • Heat Output 90/70-20° ?t=60°C=1226Kcal/h

    • Heat Output 55/45-20° ?t=30°C=499 Kcal/h


    Watts

    • Heat Output 75/65-20°?t=50°C=1131 Watt

    • Heat Output 90/70-20°?t=60°C=1426 Watt

    • Heat Output 55/45-20°?t=30°C=580 Watt


    Btu

    • Heat Output 75/65-20°?t=50°C=3859 Btu

    • Heat Output 90/70-20°?t=60°C=4863 Btu

    • Heat Output 55/45-20°?t=30°C=1976 Btu
    Warranty
    :
    10 Years
    Delivery Information
    :
    21 Day
    Tags
    dikey radyatör , dizayn radyatör , dizayn panel radyatör fiyatları , dizayn panel radyatör , radyatör modelleri , radyatör fiyatları , radyatör petek , panel radyatör , panel radyatör modelleri
Other Colors
  • %45 Discount - Type 20V Decorative Radiator 1600x440 White
    AKS Seçenekleri
    Type 20V Decorative Radiator 1600x440 White ∆t50°C=973 Kcal/h | ∆t60°C= 1227 Kcal/h | 6 Pipes | Heats 7-19 m2
    32,992.80 TL
    18,146.04 TL
  • %45 Discount - Type 20V Decorative Radiator 1600x440 Anthracite
    AKS Seçenekleri
    Type 20V Decorative Radiator 1600x440 Anthracite ∆t50°C=973 Kcal/h | ∆t60°C= 1227 Kcal/h | 6 Pipes | Heats 7-19 m2
    41,241.00 TL
    22,682.55 TL
  • %45 Discount - Type 20V Decorative Radiator 1600x440 Matte Black
    AKS Seçenekleri
    Type 20V Decorative Radiator 1600x440 Matte Black ∆t50°C=973 Kcal/h | ∆t60°C= 1227 Kcal/h | 6 Pipes | Heats 7-19 m2
    41,241.00 TL
    22,682.55 TL
  • %45 Discount - Type 20V Decorative Radiator 1600x440 Wood Effect
    AKS Seçenekleri
    Type 20V Decorative Radiator 1600x440 Wood Effect ∆t50°C=973 Kcal/h | ∆t60°C= 1227 Kcal/h | 6 Pipes | Heats 7-19 m2
    45,134.40 TL
    24,823.92 TL
