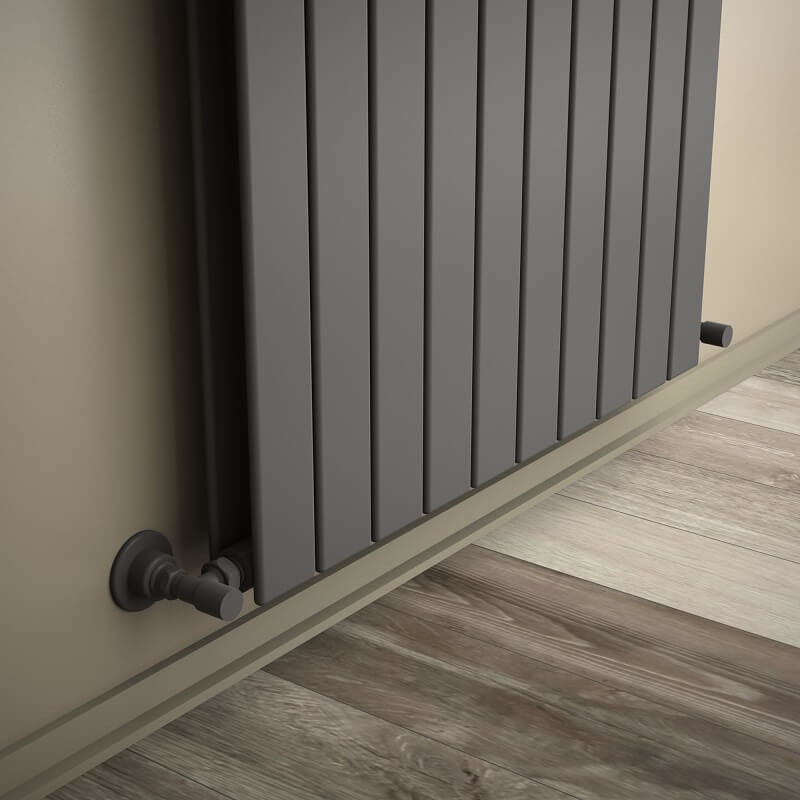

TECHNICAL INFORMATION
• Model = 20V
• Material =Steel
• Height=1800 mm
• Width=736 mm
• Color/Coating=Anthracite
• Number of Sections=10 Pieces
• Total Number of Profiles (Front + Back)=10+10 Pieces
• Profile Dimension=70x11 mm
• Collector Dimension=38 mm
• Maximum Working Pressure=4,5 bar
• Radiator Depth=58 mm
• Wall to Center of Inlet=64 mm
• Wall Projection Distance=93 mm
• Radiator Thread Dimension=1/2"
• Water Volume=19,3 lt
• Weight=58,2 kg
• Boxed Weight=62,48 kg
• Box Size=78x185x9,6 cmTAPPING OPTIONS
• Standard Entry1 =826 mm
• Standard Entry2 =1750 mm
• Standard Entry Cross =826 mm
• Bottom Middle Entrance=50mm
• Bottom Right Entrance=50mm
• Bottom Left Entrance=50mmHeat Output
Kcal / h
• Heat Output 75/65-20°?t=50°C = 1785 Kcal/h
• Heat Output 90/70-20° ?t=60°C=2250Kcal/h
• Heat Output 55/45-20° ?t=30°C=914 Kcal/h
Watts
• Heat Output 75/65-20°?t=50°C=2075 Watt
• Heat Output 90/70-20°?t=60°C=2615 Watt
• Heat Output 55/45-20°?t=30°C=1063 Watt
Btu
• Heat Output 75/65-20°?t=50°C=7080 Btu
• Heat Output 90/70-20°?t=60°C=8921 Btu
• Heat Output 55/45-20°?t=30°C=3625 Btu
Warranty:10 YearsDelivery Information:21 Day
