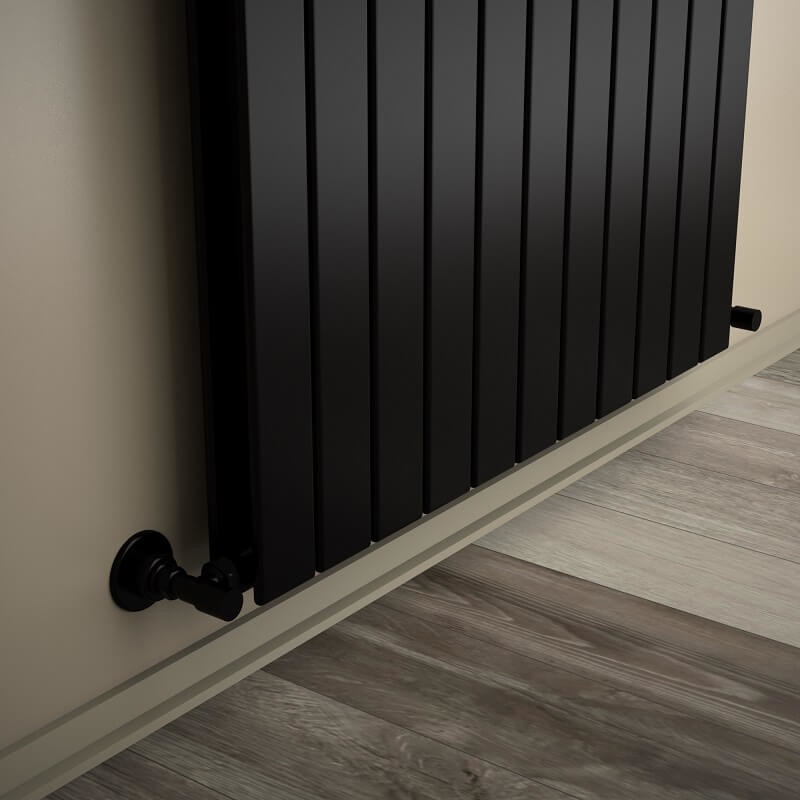

Type 20V Decorative Radiator 1800x810 Matte Black

Product Code : 220V18000810B3MS
Guarantee : 10 Year
TAXES Included
Price
:
78,553.50 TL
Discounted Price
:
43,204.43 TL
<p>10 Year Warranty</p>
10 Years
Warranty
Kargo Bedava
2000€ +
Free Shipping
Options

Standard Entry Standard Entry

Bottom Middle 50mm Bottom Middle 50mm

Bottom Left 50mm Bottom Left 50mm

Bottom Right 50mm Bottom Right 50mm

Choose Quantity
Planned Delivery
:
23.01.2025 (21 Days)
İnstagram Takip Et
Campaign
  • Features
  • Downloads
  • Payment Options
  • Comments (0)

  • TECHNICAL INFORMATION

    • Model = 20V

    • Material =Steel

    • Height    =1800 mm

    • Width=810 mm

    • Color/Coating=Matte Black RAL9005

    • Number of Sections=11 Pieces

    • Total Number of Profiles (Front + Back)=11+11 Pieces

    • Profile Dimension=70x11 mm

    • Collector Dimension=38 mm

    • Maximum Working Pressure=4,5 bar

    • Radiator Depth=58 mm

    • Wall to Center of Inlet=64 mm

    • Wall Projection Distance=93 mm

    • Radiator Thread Dimension=1/2"

    • Water Volume=21,2 lt

    • Weight=64,1 kg

    • Boxed Weight    =68,78 kg

    • Box Size=85x185x9,6 cm


    TAPPING OPTIONS




    • Standard Entry1 =900 mm

    • Standard Entry2 =1750 mm

    • Standard Entry Cross =900 mm

    • Bottom Middle Entrance=50mm

    • Bottom Right Entrance=50mm

    • Bottom Left Entrance=50mm


    Heat Output




    Kcal / h


    • Heat Output 75/65-20°?t=50°C = 1964 Kcal/h

    • Heat Output 90/70-20° ?t=60°C=2475Kcal/h

    • Heat Output 55/45-20° ?t=30°C=1006 Kcal/h


    Watts

    • Heat Output 75/65-20°?t=50°C=2283 Watt

    • Heat Output 90/70-20°?t=60°C=2877 Watt

    • Heat Output 55/45-20°?t=30°C=1169 Watt


    Btu

    • Heat Output 75/65-20°?t=50°C=7790 Btu

    • Heat Output 90/70-20°?t=60°C=9816 Btu

    • Heat Output 55/45-20°?t=30°C=3989 Btu
    Warranty
    :
    10 Years
    Delivery Information
    :
    21 Day
    Tags
    radyatör fiyatları , radyatör modelleri , dizayn panel radyatör , dizayn panel radyatör fiyatları , dizayn radyatör , dikey radyatör , radyatör petek , panel radyatör , panel radyatör modelleri , siyah radyatör , mat siyah radyatör
Other Colors

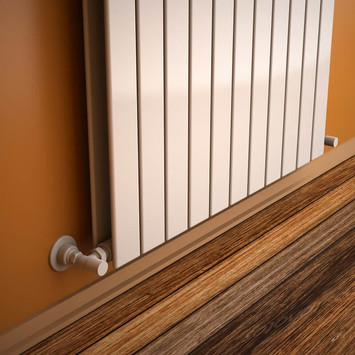

  • %45 Discount - Type 20V Decorative Radiator 1800x810 White
    AKS Seçenekleri
    Type 20V Decorative Radiator 1800x810 White ∆t50°C=1963 Kcal/h | ∆t60°C= 2474 Kcal/h | 11 Pipes | Heats 13-38 m2
    62,842.80 TL
    34,563.54 TL

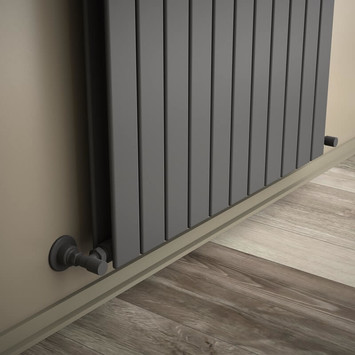

  • %45 Discount - Type 20V Decorative Radiator 1800x810 Anthracite
    AKS Seçenekleri
    Type 20V Decorative Radiator 1800x810 Anthracite ∆t50°C=1963 Kcal/h | ∆t60°C= 2474 Kcal/h | 11 Pipes | Heats 13-38 m2
    78,553.50 TL
    43,204.43 TL
  • %45 Discount - Type 20V Decorative Radiator 1800x810 Matte Black
    AKS Seçenekleri
    Type 20V Decorative Radiator 1800x810 Matte Black ∆t50°C=1963 Kcal/h | ∆t60°C= 2474 Kcal/h | 11 Pipes | Heats 13-38 m2
    78,553.50 TL
    43,204.43 TL
  • %45 Discount - Type 20V Decorative Radiator 1800x810 Wood Effect
    AKS Seçenekleri
    Type 20V Decorative Radiator 1800x810 Wood Effect ∆t50°C=1963 Kcal/h | ∆t60°C= 2474 Kcal/h | 11 Pipes | Heats 13-38 m2
    82,162.80 TL
    45,189.54 TL

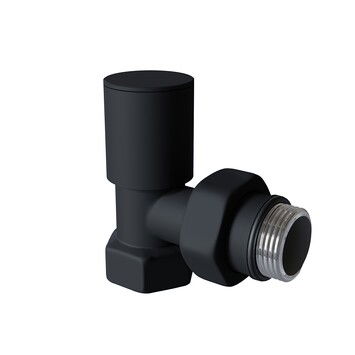

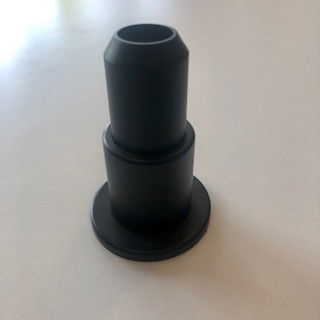

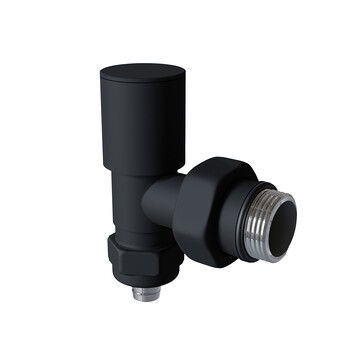

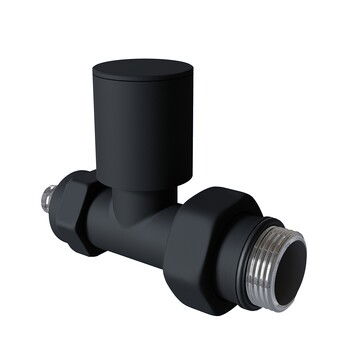

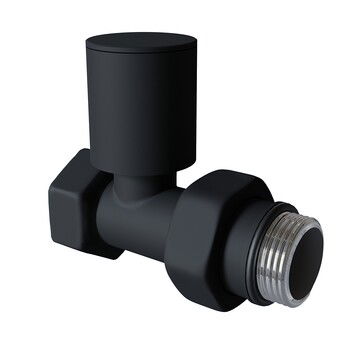

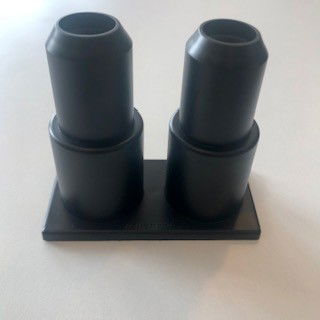

Accessories
