TECHNICAL INFORMATION

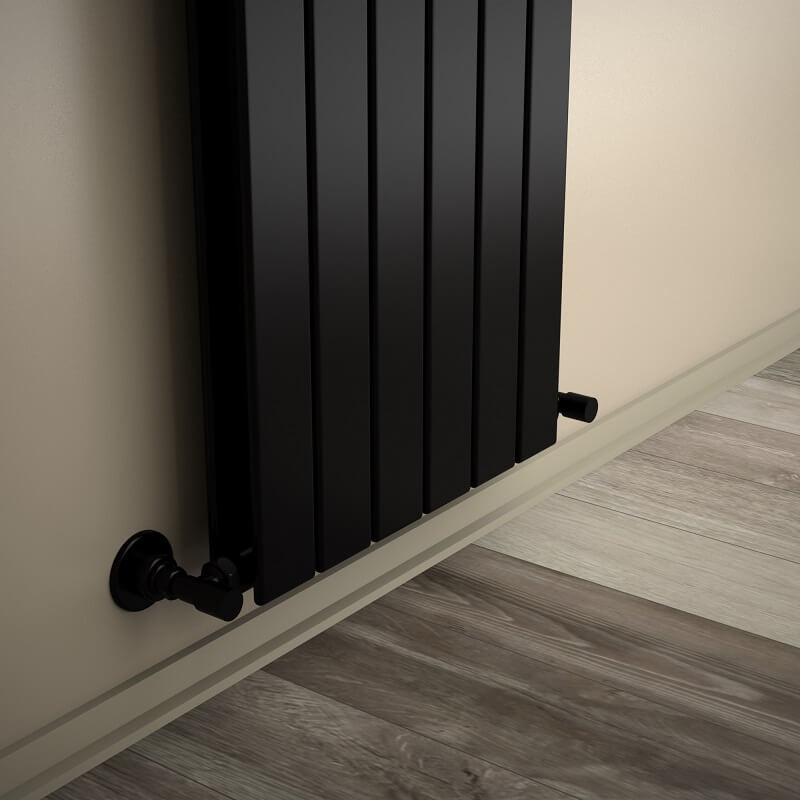

• Model = 20V
• Material =Steel
• Height=2000 mm
• Width=440 mm
• Color/Coating=Matte Black RAL9005
• Number of Sections=6 Pieces
• Total Number of Profiles (Front + Back)=6+6 Pieces
• Profile Dimension=70x11 mm
• Collector Dimension=38 mm
• Maximum Working Pressure=4,5 bar
• Radiator Depth=58 mm
• Wall to Center of Inlet=64 mm
• Wall Projection Distance=93 mm
• Radiator Thread Dimension=1/2"
• Water Volume=12,7 lt
• Weight=38,7 kg
• Boxed Weight=41,64 kg
• Box Size=48x205x9,6 cmTAPPING OPTIONS
• Standard Entry1 =530 mm
• Standard Entry2 =1950 mm
• Standard Entry Cross =530 mm
• Bottom Middle Entrance=50mm
• Bottom Right Entrance=50mm
• Bottom Left Entrance=50mmHeat Output
Kcal / h
• Heat Output 75/65-20°?t=50°C = 1166 Kcal/h
• Heat Output 90/70-20° ?t=60°C=1470Kcal/h
• Heat Output 55/45-20° ?t=30°C=597 Kcal/h
Watts
• Heat Output 75/65-20°?t=50°C=1355 Watt
• Heat Output 90/70-20°?t=60°C=1708 Watt
• Heat Output 55/45-20°?t=30°C=694 Watt
Btu
• Heat Output 75/65-20°?t=50°C=4624 Btu
• Heat Output 90/70-20°?t=60°C=5827 Btu
• Heat Output 55/45-20°?t=30°C=2368 Btu
Warranty:10 YearsDelivery Information:21 Day
