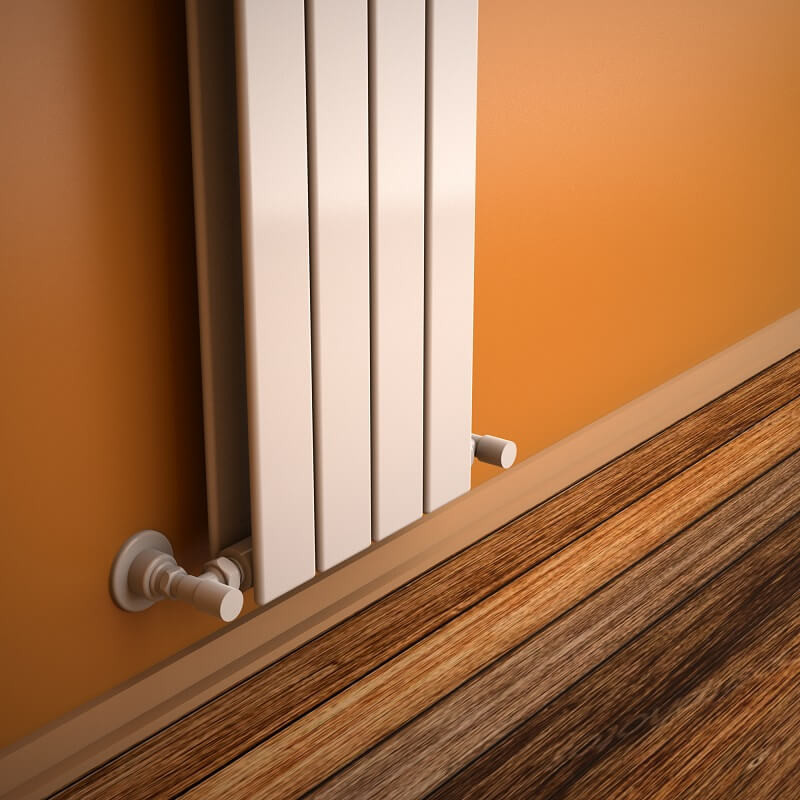

Type 20V Decorative Radiator 2100x292 White

Name: Type 20V Decorative Radiator 2100x292 White
SKU: 220V21000292B1PS
Price: 16053.84 TRY
Availability: InStock

Product Code : 220V21000292B1PS

Guarantee : 10 Year

TAXES Included

Price

29,188.80 TL

Discounted Price

16,053.84 TL

10 Years
Warranty

2000€ +
Free Shipping

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Choose Quantity

Add to Cart

Planned Delivery

21.01.2025 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 20V

• Material =Steel

• Height=2100 mm

• Width=292 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=4 Pieces

• Total Number of Profiles (Front + Back)=4+4 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=58 mm

• Wall to Center of Inlet=64 mm

• Wall Projection Distance=93 mm

• Radiator Thread Dimension=1/2"

• Water Volume=8,9 lt

• Weight=27,1 kg

• Boxed Weight=29,24 kg

• Box Size=34x215x9,6 cm

TAPPING OPTIONS

• Standard Entry1 =382 mm

• Standard Entry2 =2050 mm

• Standard Entry Cross =382 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 808 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1019Kcal/h

• Heat Output 55/45-20° ?t=30°C=414 Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=939 Watt

• Heat Output 90/70-20°?t=60°C=1184 Watt

• Heat Output 55/45-20°?t=30°C=481 Watt

Btu

• Heat Output 75/65-20°?t=50°C=3204 Btu

• Heat Output 90/70-20°?t=60°C=4038 Btu

• Heat Output 55/45-20°?t=30°C=1641 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day

Tags

dikey radyatör , dizayn radyatör , dizayn panel radyatör fiyatları , dizayn panel radyatör , radyatör modelleri , radyatör fiyatları , radyatör petek , panel radyatör , panel radyatör modelleri
