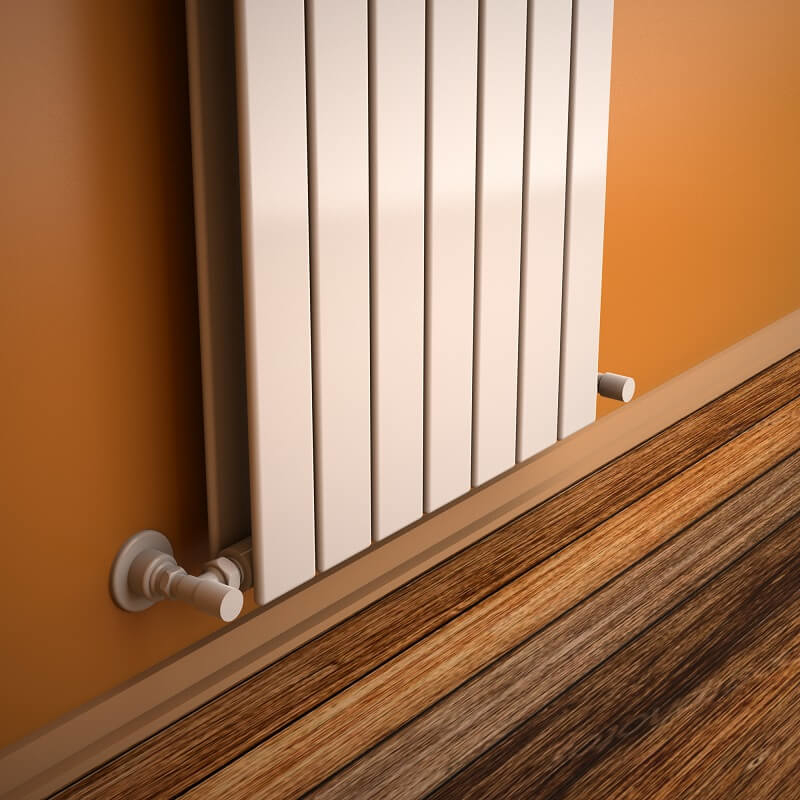

Type 20V Decorative Radiator 2100x514 White

Name: Type 20V Decorative Radiator 2100x514 White
SKU: 220V21000514B1PS
Price: 26195.40 TRY
Availability: InStock

Product Code : 220V21000514B1PS

Guarantee : 10 Year

TAXES Included

Price

47,628.00 TL

Discounted Price

26,195.40 TL

10 Years
Warranty

2000€ +
Free Shipping

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Choose Quantity

Add to Cart

Planned Delivery

23.01.2025 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 20V

• Material =Steel

• Height=2100 mm

• Width=514 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=7 Pieces

• Total Number of Profiles (Front + Back)=7+7 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=58 mm

• Wall to Center of Inlet=64 mm

• Wall Projection Distance=93 mm

• Radiator Thread Dimension=1/2"

• Water Volume=15,6 lt

• Weight=47,4 kg

• Boxed Weight=50,94 kg

• Box Size=56x215x9,6 cm

TAPPING OPTIONS

• Standard Entry1 =604 mm

• Standard Entry2 =2050 mm

• Standard Entry Cross =604 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 1413 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1781Kcal/h

• Heat Output 55/45-20° ?t=30°C=724 Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=1642 Watt

• Heat Output 90/70-20°?t=60°C=2069 Watt

• Heat Output 55/45-20°?t=30°C=841 Watt

Btu

• Heat Output 75/65-20°?t=50°C=5603 Btu

• Heat Output 90/70-20°?t=60°C=7060 Btu

• Heat Output 55/45-20°?t=30°C=2869 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day

Tags

dikey radyatör , dizayn radyatör , dizayn panel radyatör fiyatları , dizayn panel radyatör , radyatör modelleri , radyatör fiyatları , radyatör petek , panel radyatör , panel radyatör modelleri
