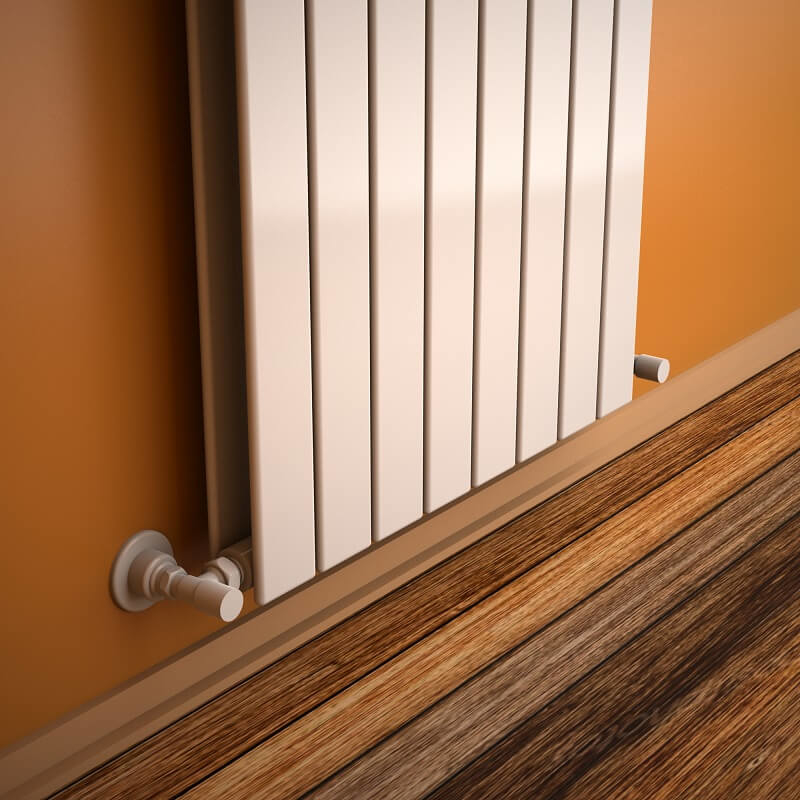

Type 20V Decorative Radiator 2100x588 White

Name: Type 20V Decorative Radiator 2100x588 White
SKU: 220V21000588B1PS
Price: 29560.74 TRY
Availability: InStock

Product Code : 220V21000588B1PS

Guarantee : 10 Year

TAXES Included

Price

53,746.80 TL

Discounted Price

29,560.74 TL

10 Years
Warranty

2000€ +
Free Shipping

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Choose Quantity

Add to Cart

Planned Delivery

23.01.2025 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 20V

• Material =Steel

• Height=2100 mm

• Width=588 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=8 Pieces

• Total Number of Profiles (Front + Back)=8+8 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=58 mm

• Wall to Center of Inlet=64 mm

• Wall Projection Distance=93 mm

• Radiator Thread Dimension=1/2"

• Water Volume=17,8 lt

• Weight=54,1 kg

• Boxed Weight=58,11 kg

• Box Size=63x215x9,6 cm

TAPPING OPTIONS

• Standard Entry1 =678 mm

• Standard Entry2 =2050 mm

• Standard Entry Cross =678 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 1615 Kcal/h

• Heat Output 90/70-20° ?t=60°C=2035Kcal/h

• Heat Output 55/45-20° ?t=30°C=827 Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=1877 Watt

• Heat Output 90/70-20°?t=60°C=2366 Watt

• Heat Output 55/45-20°?t=30°C=962 Watt

Btu

• Heat Output 75/65-20°?t=50°C=6405 Btu

• Heat Output 90/70-20°?t=60°C=8071 Btu

• Heat Output 55/45-20°?t=30°C=3280 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day

Tags

dikey radyatör , dizayn radyatör , dizayn panel radyatör fiyatları , dizayn panel radyatör , radyatör modelleri , radyatör fiyatları , radyatör petek , panel radyatör , panel radyatör modelleri
