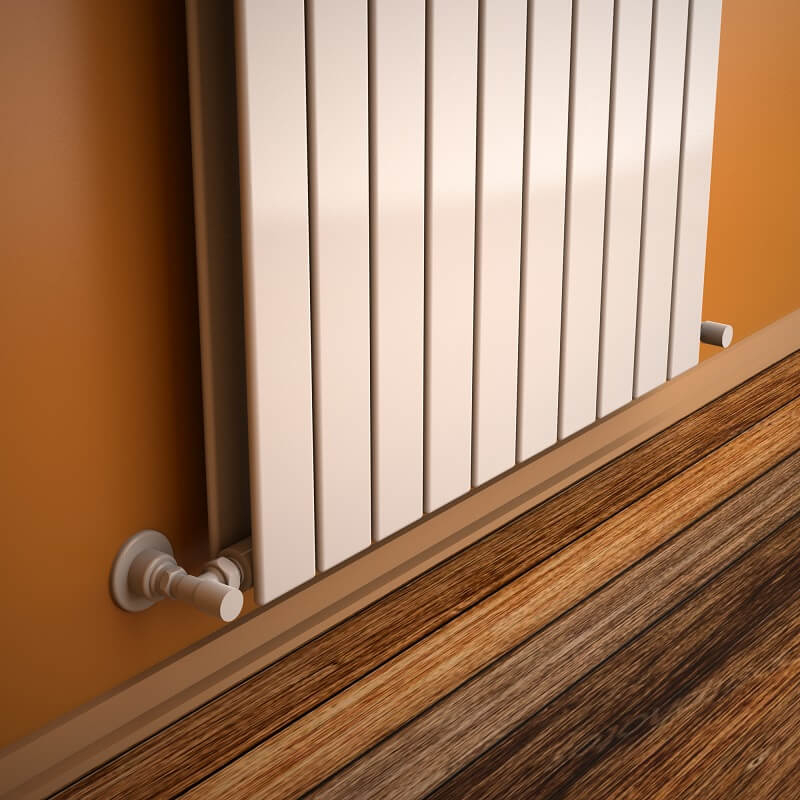

Type 20V Decorative Radiator 2100x736 White

Name: Type 20V Decorative Radiator 2100x736 White
SKU: 220V21000736B1PS
Price: 36292.08 TRY
Availability: InStock

Product Code : 220V21000736B1PS

Guarantee : 10 Year

TAXES Included

Price

65,985.60 TL

Discounted Price

36,292.08 TL

10 Years
Warranty

2000€ +
Free Shipping

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Choose Quantity

Add to Cart

Planned Delivery

21.01.2025 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 20V

• Material =Steel

• Height=2100 mm

• Width=736 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=10 Pieces

• Total Number of Profiles (Front + Back)=10+10 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=58 mm

• Wall to Center of Inlet=64 mm

• Wall Projection Distance=93 mm

• Radiator Thread Dimension=1/2"

• Water Volume=22,2 lt

• Weight=67,6 kg

• Boxed Weight=72,54 kg

• Box Size=78x215x9,6 cm

TAPPING OPTIONS

• Standard Entry1 =826 mm

• Standard Entry2 =2050 mm

• Standard Entry Cross =826 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 2018 Kcal/h

• Heat Output 90/70-20° ?t=60°C=2543Kcal/h

• Heat Output 55/45-20° ?t=30°C=1034 Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=2346 Watt

• Heat Output 90/70-20°?t=60°C=2956 Watt

• Heat Output 55/45-20°?t=30°C=1202 Watt

Btu

• Heat Output 75/65-20°?t=50°C=8005 Btu

• Heat Output 90/70-20°?t=60°C=10087 Btu

• Heat Output 55/45-20°?t=30°C=4099 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day

Tags

dikey radyatör , dizayn radyatör , dizayn panel radyatör fiyatları , dizayn panel radyatör , radyatör modelleri , radyatör fiyatları , radyatör petek , panel radyatör , panel radyatör modelleri
