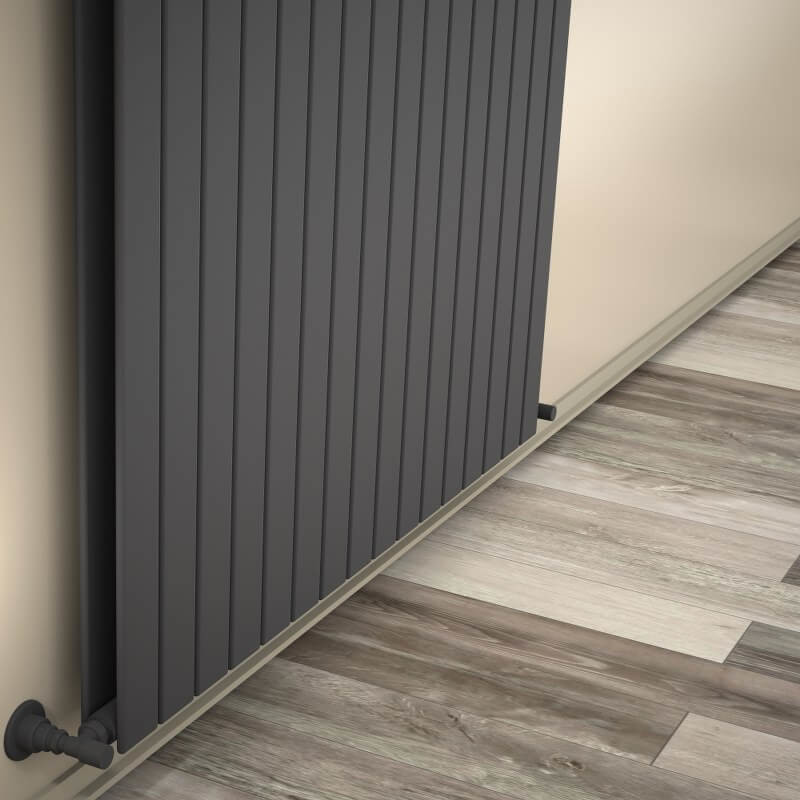

Type 20V Decorative Radiator 400x1180 Anthracite

Name: Type 20V Decorative Radiator 400x1180 Anthracite
SKU: 220V04001180B2TS
Price: 17793.60 TRY
Availability: InStock

Product Code : 220V04001180B2TS

Guarantee : 10 Year

TAXES Included

Price

32,352.00 TL

Discounted Price

17,793.60 TL

10 Years
Warranty

2000€ +
Free Shipping

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Choose Quantity

Add to Cart

Planned Delivery

21.01.2025 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 20V

• Material =Steel

• Height=400 mm

• Width=1180 mm

• Color/Coating=Anthracite

• Number of Sections=16 Pieces

• Total Number of Profiles (Front + Back)=16+16 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=58 mm

• Wall to Center of Inlet=64 mm

• Wall Projection Distance=93 mm

• Radiator Thread Dimension=1/2"

• Water Volume=8,6 lt

• Weight=23,3 kg

• Boxed Weight=25,02 kg

• Box Size=122x45x9,6 cm

TAPPING OPTIONS

• Standard Entry1 =1270 mm

• Standard Entry2 =350 mm

• Standard Entry Cross =1270 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 743 Kcal/h

• Heat Output 90/70-20° ?t=60°C=937Kcal/h

• Heat Output 55/45-20° ?t=30°C=381 Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=863 Watt

• Heat Output 90/70-20°?t=60°C=1088 Watt

• Heat Output 55/45-20°?t=30°C=442 Watt

Btu

• Heat Output 75/65-20°?t=50°C=2945 Btu

• Heat Output 90/70-20°?t=60°C=3711 Btu

• Heat Output 55/45-20°?t=30°C=1508 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day

Tags

dizayn radyatör , dizayn panel radyatör fiyatları , dizayn panel radyatör , radyatör modelleri , radyatör fiyatları , radyatör petek , panel radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler

Other Colors

%45 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"37_0":"7116","36_0":"15351","34_0":"12606","35_0":"9861"},"variant_prices":{"37_0":11862.4,"36_0":12742.4,"34_0":12742.4,"35_0":12742.4},"variant_price_raws":{"37_0":11862.4,"36_0":12742.4,"34_0":12742.4,"35_0":12742.4},"buying_prices":{"37_0":"0","36_0":"0","34_0":"0","35_0":"0"},"not_discounted_prices":{"37_0":"21568","36_0":"23168","34_0":"23168","35_0":"23168"},"variant_supplier_codes":{"37_0":"220V04001180B1PS","36_0":"220V04001180B1PM1","34_0":"220V04001180B1PM3","35_0":"220V04001180B1PM2"},"active_ids":{"one_37":["0"],"two_0":["37","36","34","35"],"one_36":["0"],"one_34":["0"],"one_35":["0"]},"variant_informations":{"37_0":{"additional_information":""},"36_0":{"additional_information":""},"34_0":{"additional_information":""},"35_0":{"additional_information":""}},"variant_stocks":{"37_0":"100","36_0":"98","34_0":"100","35_0":"100"}}

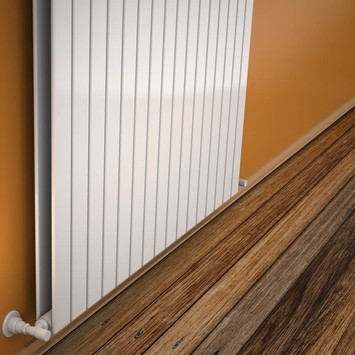

Type 20V Decorative Radiator 400x1180 White ∆t50°C=742 Kcal/h | ∆t60°C= 935 Kcal/h | 16 Pipes | Heats 5-15 m2
