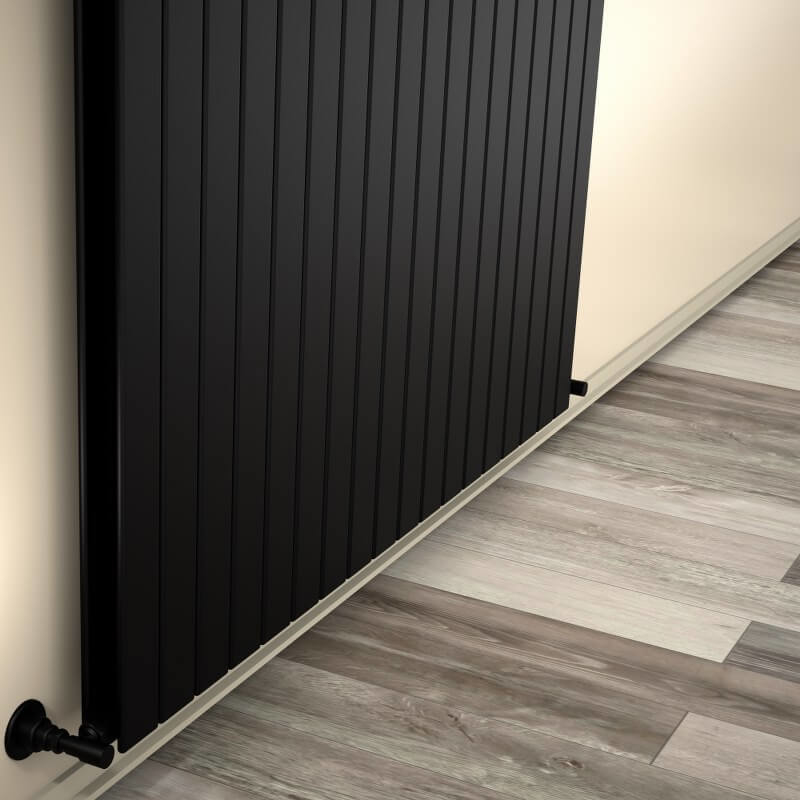

Type 20V Decorative Radiator 400x1328 Matte Black

Product Code : 220V04001328B3MS
Guarantee : 10 Year
TAXES Included
Price
:
35,763.00 TL
Discounted Price
:
19,669.65 TL
<p>10 Year Warranty</p>
10 Years
Warranty
Kargo Bedava
2000€ +
Free Shipping
Choose Quantity
Planned Delivery
:
21.01.2025 (21 Days)
İnstagram Takip Et
Campaign
  • Features
  • Downloads
  • Payment Options
  • Comments (0)
  • TECHNICAL INFORMATION

    • Model = 20V

    • Material =Steel

    • Height
    =400 mm

    • Width=1328 mm

    • Color/Coating=Matte Black RAL9005

    • Number of Sections=18 Pieces

    • Total Number of Profiles (Front + Back)=18+18 Pieces

    • Profile Dimension=70x11 mm

    • Collector Dimension=38 mm

    • Maximum Working Pressure=4,5 bar

    • Radiator Depth=58 mm

    • Wall to Center of Inlet=64 mm

    • Wall Projection Distance=93 mm

    • Radiator Thread Dimension=1/2"

    • Water Volume=9,7 lt

    • Weight=26,1 kg

    • Boxed Weight
    =28 kg

    • Box Size=137x45x9,6 cm


    TAPPING OPTIONS




    • Standard Entry1 =1418 mm

    • Standard Entry2 =350 mm

    • Standard Entry Cross =1418 mm

    • Bottom Middle Entrance=50mm

    • Bottom Right Entrance=50mm

    • Bottom Left Entrance=50mm


    Heat Output




    Kcal / h


    • Heat Output 75/65-20°?t=50°C = 836 Kcal/h

    • Heat Output 90/70-20° ?t=60°C=1054Kcal/h

    • Heat Output 55/45-20° ?t=30°C=429 Kcal/h


    Watts

    • Heat Output 75/65-20°?t=50°C=971 Watt

    • Heat Output 90/70-20°?t=60°C=1224 Watt

    • Heat Output 55/45-20°?t=30°C=498 Watt


    Btu

    • Heat Output 75/65-20°?t=50°C=3314 Btu

    • Heat Output 90/70-20°?t=60°C=4176 Btu

    • Heat Output 55/45-20°?t=30°C=1697 Btu
