TECHNICAL INFORMATION

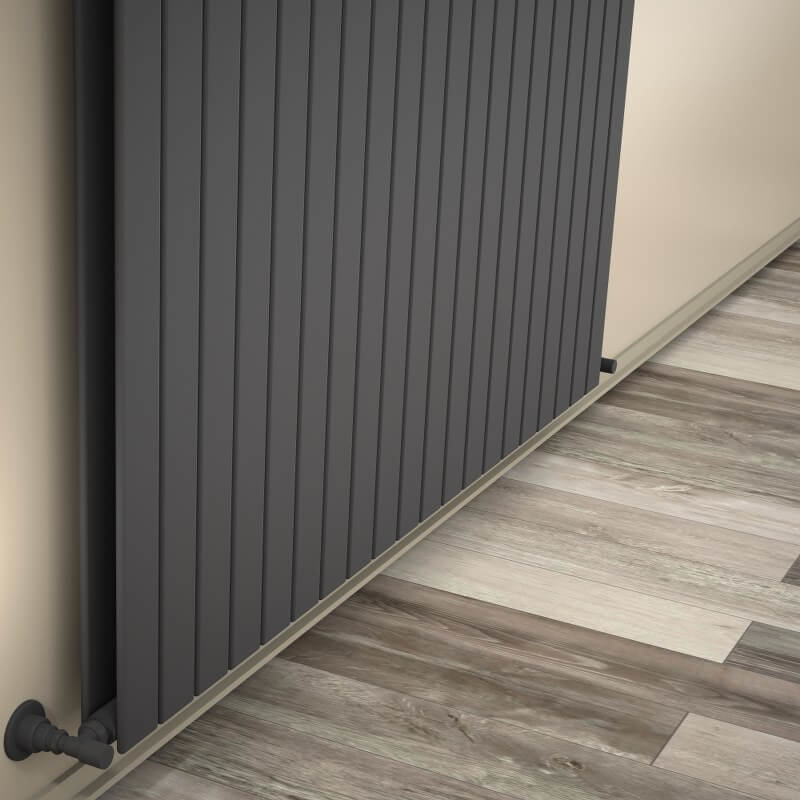

• Model = 20V
• Material =Steel
• Height=400 mm
• Width=1476 mm
• Color/Coating=Anthracite
• Number of Sections=20 Pieces
• Total Number of Profiles (Front + Back)=20+20 Pieces
• Profile Dimension=70x11 mm
• Collector Dimension=38 mm
• Maximum Working Pressure=4,5 bar
• Radiator Depth=58 mm
• Wall to Center of Inlet=64 mm
• Wall Projection Distance=93 mm
• Radiator Thread Dimension=1/2"
• Water Volume=10,8 lt
• Weight=29 kg
• Boxed Weight=31,08 kg
• Box Size=152x45x9,6 cmTAPPING OPTIONS
• Standard Entry1 =1566 mm
• Standard Entry2 =350 mm
• Standard Entry Cross =1566 mm
• Bottom Middle Entrance=50mm
• Bottom Right Entrance=50mm
• Bottom Left Entrance=50mmHeat Output
Kcal / h
• Heat Output 75/65-20°?t=50°C = 928 Kcal/h
• Heat Output 90/70-20° ?t=60°C=1170Kcal/h
• Heat Output 55/45-20° ?t=30°C=476 Kcal/h
Watts
• Heat Output 75/65-20°?t=50°C=1079 Watt
• Heat Output 90/70-20°?t=60°C=1360 Watt
• Heat Output 55/45-20°?t=30°C=553 Watt
Btu
• Heat Output 75/65-20°?t=50°C=3682 Btu
• Heat Output 90/70-20°?t=60°C=4640 Btu
• Heat Output 55/45-20°?t=30°C=1886 Btu
Warranty:10 YearsDelivery Information:21 Day
