TECHNICAL INFORMATION

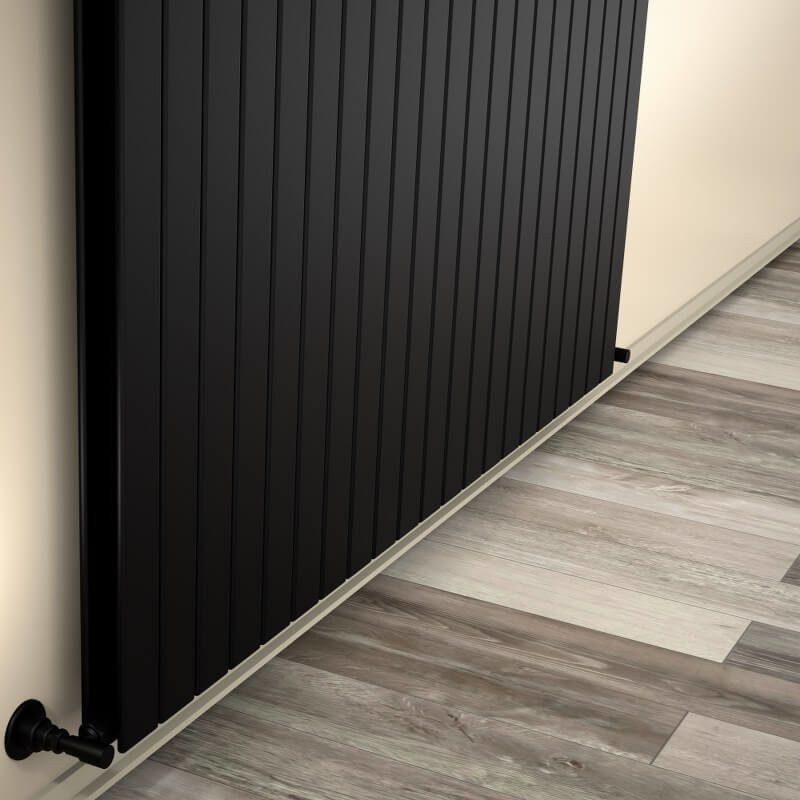

• Model = 20V
• Material =Steel
• Height=400 mm
• Width=1550 mm
• Color/Coating=Matte Black RAL9005
• Number of Sections=21 Pieces
• Total Number of Profiles (Front + Back)=21+21 Pieces
• Profile Dimension=70x11 mm
• Collector Dimension=38 mm
• Maximum Working Pressure=4,5 bar
• Radiator Depth=58 mm
• Wall to Center of Inlet=64 mm
• Wall Projection Distance=93 mm
• Radiator Thread Dimension=1/2"
• Water Volume=11,3 lt
• Weight=30,5 kg
• Boxed Weight=32,66 kg
• Box Size=159x45x9,6 cmTAPPING OPTIONS
• Standard Entry1 =1640 mm
• Standard Entry2 =350 mm
• Standard Entry Cross =1640 mm
• Bottom Middle Entrance=50mm
• Bottom Right Entrance=50mm
• Bottom Left Entrance=50mmHeat Output
Kcal / h
• Heat Output 75/65-20°?t=50°C = 975 Kcal/h
• Heat Output 90/70-20° ?t=60°C=1229Kcal/h
• Heat Output 55/45-20° ?t=30°C=500 Kcal/h
Watts
• Heat Output 75/65-20°?t=50°C=1133 Watt
• Heat Output 90/70-20°?t=60°C=1428 Watt
• Heat Output 55/45-20°?t=30°C=581 Watt
Btu
• Heat Output 75/65-20°?t=50°C=3866 Btu
• Heat Output 90/70-20°?t=60°C=4872 Btu
• Heat Output 55/45-20°?t=30°C=1980 Btu
Warranty:10 YearsDelivery Information:21 Day
