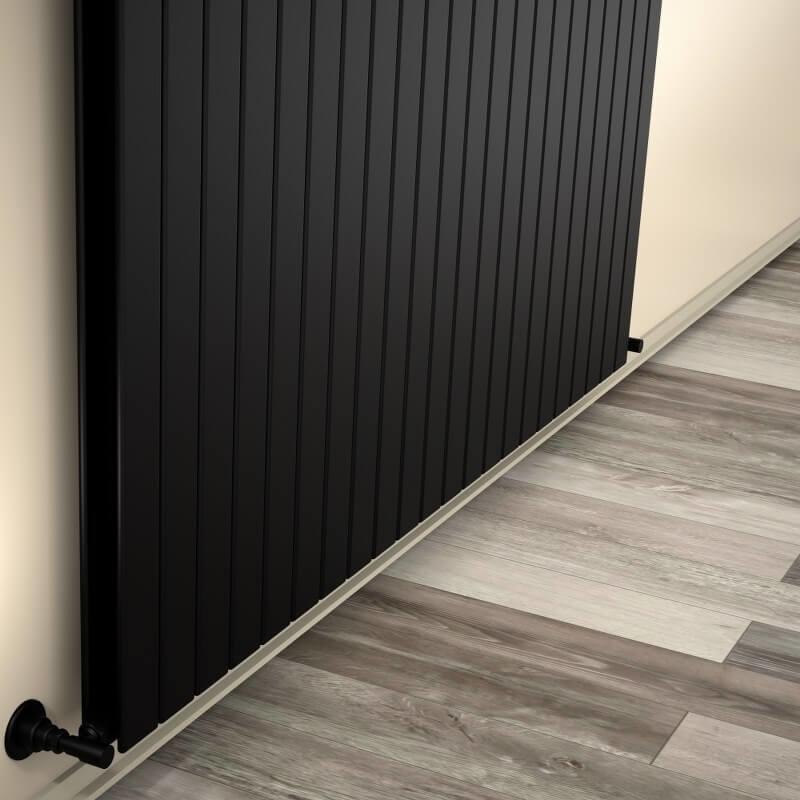

Type 20V Decorative Radiator 400x1624 Matte Black

Product Code : 220V04001624B3MS
Guarantee : 10 Year
TAXES Included
Price
:
42,378.00 TL
Discounted Price
:
23,307.90 TL
<p>10 Year Warranty</p>
10 Years
Warranty
Kargo Bedava
2000€ +
Free Shipping
Options

Standard Entry Standard Entry

Bottom Middle 50mm Bottom Middle 50mm

Bottom Left 50mm Bottom Left 50mm

Bottom Right 50mm Bottom Right 50mm

Choose Quantity
Planned Delivery
:
13.01.2025 (21 Days)
İnstagram Takip Et
Campaign
  • Features
  • Downloads
  • Payment Options
  • Comments (0)

  • TECHNICAL INFORMATION

    • Model = 20V

    • Material =Steel

    • Height    =400 mm

    • Width=1624 mm

    • Color/Coating=Matte Black RAL9005

    • Number of Sections=22 Pieces

    • Total Number of Profiles (Front + Back)=22+22 Pieces

    • Profile Dimension=70x11 mm

    • Collector Dimension=38 mm

    • Maximum Working Pressure=4,5 bar

    • Radiator Depth=58 mm

    • Wall to Center of Inlet=64 mm

    • Wall Projection Distance=93 mm

    • Radiator Thread Dimension=1/2"

    • Water Volume=11,9 lt

    • Weight=31,9 kg

    • Boxed Weight    =34,15 kg

    • Box Size=167x45x9,6 cm


    TAPPING OPTIONS




    • Standard Entry1 =1714 mm

    • Standard Entry2 =350 mm

    • Standard Entry Cross =1714 mm

    • Bottom Middle Entrance=50mm

    • Bottom Right Entrance=50mm

    • Bottom Left Entrance=50mm


    Heat Output




    Kcal / h


    • Heat Output 75/65-20°?t=50°C = 1021 Kcal/h

    • Heat Output 90/70-20° ?t=60°C=1287Kcal/h

    • Heat Output 55/45-20° ?t=30°C=523 Kcal/h


    Watts

    • Heat Output 75/65-20°?t=50°C=1187 Watt

    • Heat Output 90/70-20°?t=60°C=1496 Watt

    • Heat Output 55/45-20°?t=30°C=608 Watt


    Btu

    • Heat Output 75/65-20°?t=50°C=4051 Btu

    • Heat Output 90/70-20°?t=60°C=5105 Btu

    • Heat Output 55/45-20°?t=30°C=2075 Btu
