%45 Discount

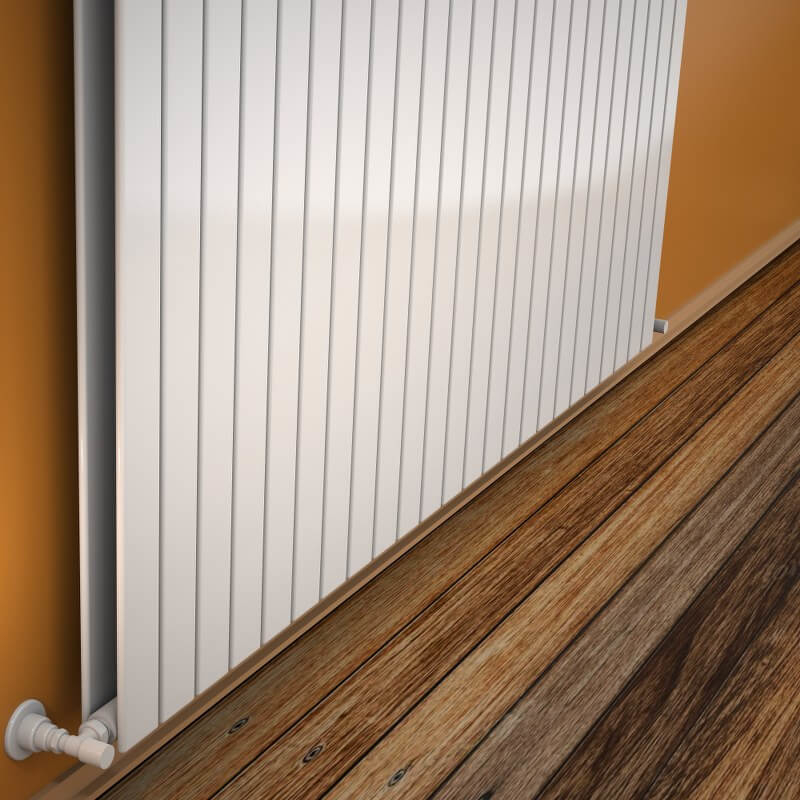

Type 20V Decorative Radiator 400x1772 White

Name: Type 20V Decorative Radiator 400x1772 White
SKU: 220V04001772B1PS
Price: 20101.62 TRY
Availability: InStock

Product Code : 220V04001772B1PS

Guarantee : 10 Year

TAXES Included

Price

36,548.40 TL

Discounted Price

20,101.62 TL

10 Years
Warranty

2000€ +
Free Shipping

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Choose Quantity

Add to Cart

Planned Delivery

21.01.2025 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 20V

• Material =Steel

• Height=400 mm

• Width=1772 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=24 Pieces

• Total Number of Profiles (Front + Back)=24+24 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=58 mm

• Wall to Center of Inlet=64 mm

• Wall Projection Distance=93 mm

• Radiator Thread Dimension=1/2"

• Water Volume=12,9 lt

• Weight=34,8 kg

• Boxed Weight=37,23 kg

• Box Size=182x45x9,6 cm

TAPPING OPTIONS

• Standard Entry1 =1862 mm

• Standard Entry2 =350 mm

• Standard Entry Cross =1862 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 1114 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1404Kcal/h

• Heat Output 55/45-20° ?t=30°C=571 Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=1295 Watt

• Heat Output 90/70-20°?t=60°C=1632 Watt

• Heat Output 55/45-20°?t=30°C=664 Watt

Btu

• Heat Output 75/65-20°?t=50°C=4419 Btu

• Heat Output 90/70-20°?t=60°C=5568 Btu

• Heat Output 55/45-20°?t=30°C=2263 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day
