%45 Discount

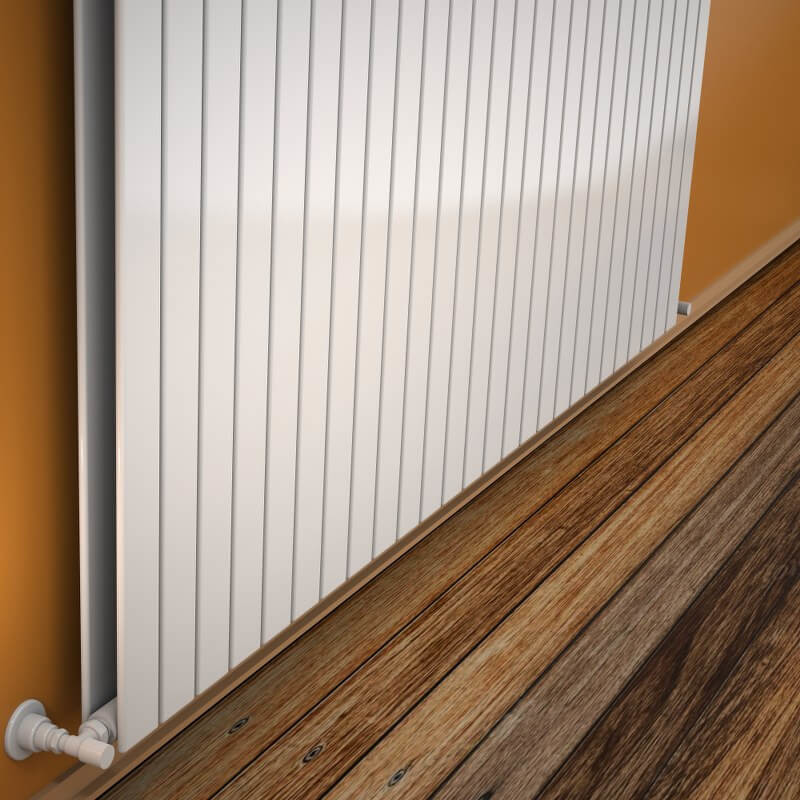

Type 20V Decorative Radiator 400x1920 White

Name: Type 20V Decorative Radiator 400x1920 White
SKU: 220V04001920B1PS
Price: 21602.46 TRY
Availability: InStock

Product Code : 220V04001920B1PS

Guarantee : 10 Year

TAXES Included

Price

39,277.20 TL

Discounted Price

21,602.46 TL

10 Years
Warranty

2000€ +
Free Shipping

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Choose Quantity

Add to Cart

Planned Delivery

21.01.2025 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 20V

• Material =Steel

• Height=400 mm

• Width=1920 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=26 Pieces

• Total Number of Profiles (Front + Back)=26+26 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=58 mm

• Wall to Center of Inlet=64 mm

• Wall Projection Distance=93 mm

• Radiator Thread Dimension=1/2"

• Water Volume=14 lt

• Weight=37,7 kg

• Boxed Weight=40,31 kg

• Box Size=196x45x9,6 cm

TAPPING OPTIONS

• Standard Entry1 =2010 mm

• Standard Entry2 =350 mm

• Standard Entry Cross =2010 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 1206 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1520Kcal/h

• Heat Output 55/45-20° ?t=30°C=618 Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=1402 Watt

• Heat Output 90/70-20°?t=60°C=1767 Watt

• Heat Output 55/45-20°?t=30°C=718 Watt

Btu

• Heat Output 75/65-20°?t=50°C=4784 Btu

• Heat Output 90/70-20°?t=60°C=6028 Btu

• Heat Output 55/45-20°?t=30°C=2450 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day

Tags

dizayn radyatör , dizayn panel radyatör fiyatları , dizayn panel radyatör , radyatör modelleri , radyatör fiyatları , radyatör petek , panel radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler

Other Colors

%45 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"37_0":"7156","36_0":"15391","34_0":"12646","35_0":"9901"},"variant_prices":{"37_0":18002.05,"36_0":18882.05,"34_0":18882.05,"35_0":18882.05},"variant_price_raws":{"37_0":18002.05,"36_0":18882.05,"34_0":18882.05,"35_0":18882.05},"buying_prices":{"37_0":"0","36_0":"0","34_0":"0","35_0":"0"},"not_discounted_prices":{"37_0":"32731","36_0":"34331","34_0":"34331","35_0":"34331"},"variant_supplier_codes":{"37_0":"220V04001920B1PS","36_0":"220V04001920B1PM1","34_0":"220V04001920B1PM3","35_0":"220V04001920B1PM2"},"active_ids":{"one_37":["0"],"two_0":["37","36","34","35"],"one_36":["0"],"one_34":["0"],"one_35":["0"]},"variant_informations":{"37_0":{"additional_information":""},"36_0":{"additional_information":""},"34_0":{"additional_information":""},"35_0":{"additional_information":""}},"variant_stocks":{"37_0":"100","36_0":"100","34_0":"100","35_0":"100"}}

Type 20V Decorative Radiator 400x1920 White ∆t50°C=1206 Kcal/h | ∆t60°C= 1520 Kcal/h | 26 Pipes | Heats 8-24 m2

39,277.20 TL

21,602.46 TL
%45 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"37_0":"7157","36_0":"15392","34_0":"12647","35_0":"9902"},"variant_prices":{"37_0":22502.5625,"36_0":23382.5625,"34_0":23382.5625,"35_0":23382.5625},"variant_price_raws":{"37_0":22502.5625,"36_0":23382.5625,"34_0":23382.5625,"35_0":23382.5625},"buying_prices":{"37_0":"0","36_0":"0","34_0":"0","35_0":"0"},"not_discounted_prices":{"37_0":"40913.75","36_0":"42513.75","34_0":"42513.75","35_0":"42513.75"},"variant_supplier_codes":{"37_0":"220V04001920B2TS","36_0":"220V04001920B2TM1","34_0":"220V04001920B2TM3","35_0":"220V04001920B2TM2"},"active_ids":{"one_37":["0"],"two_0":["37","36","34","35"],"one_36":["0"],"one_34":["0"],"one_35":["0"]},"variant_informations":{"37_0":{"additional_information":""},"36_0":{"additional_information":""},"34_0":{"additional_information":""},"35_0":{"additional_information":""}},"variant_stocks":{"37_0":"100","36_0":"100","34_0":"100","35_0":"100"}}

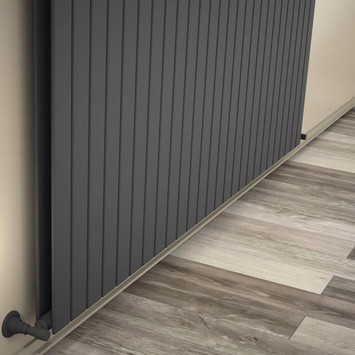

Type 20V Decorative Radiator 400x1920 Anthracite ∆t50°C=1206 Kcal/h | ∆t60°C= 1520 Kcal/h | 26 Pipes | Heats 8-24 m2

49,096.50 TL

27,003.08 TL
%45 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"37_0":"7158","36_0":"15393","34_0":"12648","35_0":"9903"},"variant_prices":{"37_0":22502.5625,"36_0":23382.5625,"34_0":23382.5625,"35_0":23382.5625},"variant_price_raws":{"37_0":22502.5625,"36_0":23382.5625,"34_0":23382.5625,"35_0":23382.5625},"buying_prices":{"37_0":"0","36_0":"0","34_0":"0","35_0":"0"},"not_discounted_prices":{"37_0":"40913.75","36_0":"42513.75","34_0":"42513.75","35_0":"42513.75"},"variant_supplier_codes":{"37_0":"220V04001920B3MS","36_0":"220V04001920B3MM1","34_0":"220V04001920B3MM3","35_0":"220V04001920B3MM2"},"active_ids":{"one_37":["0"],"two_0":["37","36","34","35"],"one_36":["0"],"one_34":["0"],"one_35":["0"]},"variant_informations":{"37_0":{"additional_information":""},"36_0":{"additional_information":""},"34_0":{"additional_information":""},"35_0":{"additional_information":""}},"variant_stocks":{"37_0":"100","36_0":"100","34_0":"100","35_0":"100"}}

Type 20V Decorative Radiator 400x1920 Matte Black ∆t50°C=1206 Kcal/h | ∆t60°C= 1520 Kcal/h | 26 Pipes | Heats 8-24 m2

49,096.50 TL

27,003.08 TL
%45 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"37_0":"7159","36_0":"15394","34_0":"12649","35_0":"9904"},"variant_prices":{"37_0":23846.35,"36_0":24726.35,"34_0":24726.35,"35_0":24726.35},"variant_price_raws":{"37_0":23846.35,"36_0":24726.35,"34_0":24726.35,"35_0":24726.35},"buying_prices":{"37_0":"0","36_0":"0","34_0":"0","35_0":"0"},"not_discounted_prices":{"37_0":"43357","36_0":"44957","34_0":"44957","35_0":"44957"},"variant_supplier_codes":{"37_0":"220V04001920K6FS","36_0":"220V04001920K6FM1","34_0":"220V04001920K6FM3","35_0":"220V04001920K6FM2"},"active_ids":{"one_37":["0"],"two_0":["37","36","34","35"],"one_36":["0"],"one_34":["0"],"one_35":["0"]},"variant_informations":{"37_0":{"additional_information":""},"36_0":{"additional_information":""},"34_0":{"additional_information":""},"35_0":{"additional_information":""}},"variant_stocks":{"37_0":"100","36_0":"100","34_0":"100","35_0":"100"}}

Type 20V Decorative Radiator 400x1920 Wood Effect ∆t50°C=1206 Kcal/h | ∆t60°C= 1520 Kcal/h | 26 Pipes | Heats 8-24 m2

52,028.40 TL

28,615.62 TL
