%45 Discount

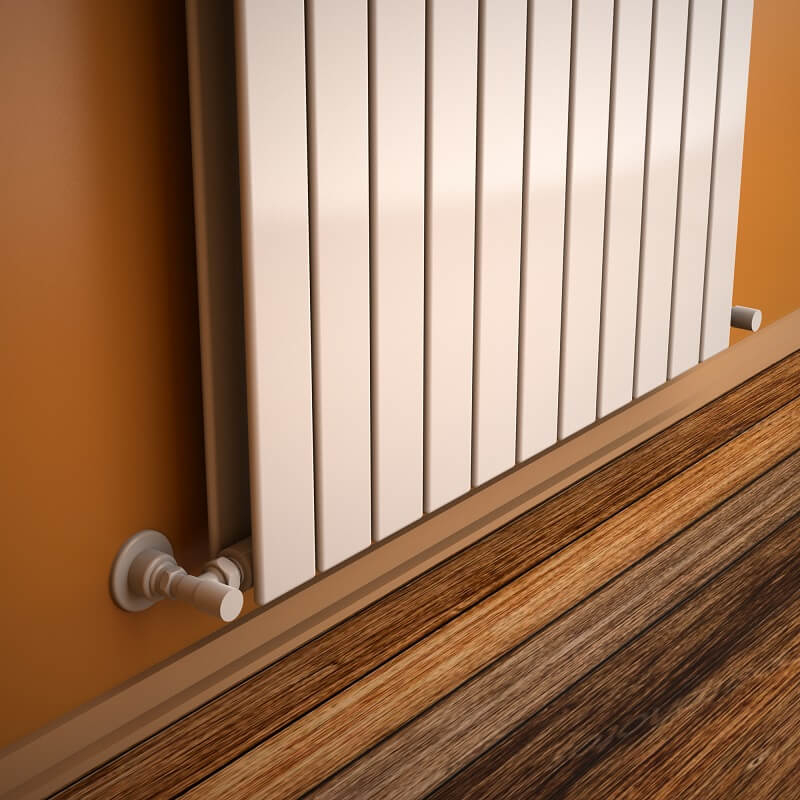

Type 20V Decorative Radiator 400x810 White

Name: Type 20V Decorative Radiator 400x810 White
SKU: 220V04000810B1PS
Price: 10596.30 TRY
Availability: InStock

Product Code : 220V04000810B1PS

Guarantee : 10 Year

TAXES Included

Price

19,266.00 TL

Discounted Price

10,596.30 TL

10 Years
Warranty

2000€ +
Free Shipping

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Choose Quantity

Add to Cart

Planned Delivery

21.01.2025 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 20V

• Material =Steel

• Height=400 mm

• Width=810 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=11 Pieces

• Total Number of Profiles (Front + Back)=11+11 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=58 mm

• Wall to Center of Inlet=64 mm

• Wall Projection Distance=93 mm

• Radiator Thread Dimension=1/2"

• Water Volume=5,9 lt

• Weight=16 kg

• Boxed Weight=17,28 kg

• Box Size=85x45x9,6 cm

TAPPING OPTIONS

• Standard Entry1 =900 mm

• Standard Entry2 =350 mm

• Standard Entry Cross =900 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 510 Kcal/h

• Heat Output 90/70-20° ?t=60°C=643Kcal/h

• Heat Output 55/45-20° ?t=30°C=262 Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=593 Watt

• Heat Output 90/70-20°?t=60°C=748 Watt

• Heat Output 55/45-20°?t=30°C=304 Watt

Btu

• Heat Output 75/65-20°?t=50°C=2024 Btu

• Heat Output 90/70-20°?t=60°C=2551 Btu

• Heat Output 55/45-20°?t=30°C=1037 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day

Tags

dizayn radyatör , dizayn panel radyatör fiyatları , dizayn panel radyatör , radyatör modelleri , radyatör fiyatları , radyatör petek , panel radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler

Other Colors

%45 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"37_0":"7096","36_0":"15331","34_0":"12586","35_0":"9841"},"variant_prices":{"37_0":8830.25,"36_0":9710.25,"34_0":9710.25,"35_0":9710.25},"variant_price_raws":{"37_0":8830.25,"36_0":9710.25,"34_0":9710.25,"35_0":9710.25},"buying_prices":{"37_0":"0","36_0":"0","34_0":"0","35_0":"0"},"not_discounted_prices":{"37_0":"16055","36_0":"17655","34_0":"17655","35_0":"17655"},"variant_supplier_codes":{"37_0":"220V04000810B1PS","36_0":"220V04000810B1PM1","34_0":"220V04000810B1PM3","35_0":"220V04000810B1PM2"},"active_ids":{"one_37":["0"],"two_0":["37","36","34","35"],"one_36":["0"],"one_34":["0"],"one_35":["0"]},"variant_informations":{"37_0":{"additional_information":""},"36_0":{"additional_information":""},"34_0":{"additional_information":""},"35_0":{"additional_information":""}},"variant_stocks":{"37_0":"100","36_0":"100","34_0":"100","35_0":"100"}}

Type 20V Decorative Radiator 400x810 White ∆t50°C=510 Kcal/h | ∆t60°C= 643 Kcal/h | 11 Pipes | Heats 4-10 m2

19,266.00 TL

10,596.30 TL
%45 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"37_0":"7097","36_0":"15332","34_0":"12587","35_0":"9842"},"variant_prices":{"37_0":11037.8125,"36_0":11917.8125,"34_0":11917.8125,"35_0":11917.8125},"variant_price_raws":{"37_0":11037.8125,"36_0":11917.8125,"34_0":11917.8125,"35_0":11917.8125},"buying_prices":{"37_0":"0","36_0":"0","34_0":"0","35_0":"0"},"not_discounted_prices":{"37_0":"20068.75","36_0":"21668.75","34_0":"21668.75","35_0":"21668.75"},"variant_supplier_codes":{"37_0":"220V04000810B2TS","36_0":"220V04000810B2TM1","34_0":"220V04000810B2TM3","35_0":"220V04000810B2TM2"},"active_ids":{"one_37":["0"],"two_0":["37","36","34","35"],"one_36":["0"],"one_34":["0"],"one_35":["0"]},"variant_informations":{"37_0":{"additional_information":""},"36_0":{"additional_information":""},"34_0":{"additional_information":""},"35_0":{"additional_information":""}},"variant_stocks":{"37_0":"100","36_0":"100","34_0":"100","35_0":"99"}}

Type 20V Decorative Radiator 400x810 Anthracite ∆t50°C=510 Kcal/h | ∆t60°C= 643 Kcal/h | 11 Pipes | Heats 4-10 m2

24,082.50 TL

13,245.38 TL
%45 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"37_0":"7098","36_0":"15333","34_0":"12588","35_0":"9843"},"variant_prices":{"37_0":11037.8125,"36_0":11917.8125,"34_0":11917.8125,"35_0":11917.8125},"variant_price_raws":{"37_0":11037.8125,"36_0":11917.8125,"34_0":11917.8125,"35_0":11917.8125},"buying_prices":{"37_0":"0","36_0":"0","34_0":"0","35_0":"0"},"not_discounted_prices":{"37_0":"20068.75","36_0":"21668.75","34_0":"21668.75","35_0":"21668.75"},"variant_supplier_codes":{"37_0":"220V04000810B3MS","36_0":"220V04000810B3MM1","34_0":"220V04000810B3MM3","35_0":"220V04000810B3MM2"},"active_ids":{"one_37":["0"],"two_0":["37","36","34","35"],"one_36":["0"],"one_34":["0"],"one_35":["0"]},"variant_informations":{"37_0":{"additional_information":""},"36_0":{"additional_information":""},"34_0":{"additional_information":""},"35_0":{"additional_information":""}},"variant_stocks":{"37_0":"100","36_0":"100","34_0":"100","35_0":"100"}}

Type 20V Decorative Radiator 400x810 Matte Black ∆t50°C=510 Kcal/h | ∆t60°C= 643 Kcal/h | 11 Pipes | Heats 4-10 m2

24,082.50 TL

13,245.38 TL
%45 Discount
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"37_0":"7099","36_0":"15334","34_0":"12589","35_0":"9844"},"variant_prices":{"37_0":12737.45,"36_0":13617.45,"34_0":13617.45,"35_0":13617.45},"variant_price_raws":{"37_0":12737.45,"36_0":13617.45,"34_0":13617.45,"35_0":13617.45},"buying_prices":{"37_0":"0","36_0":"0","34_0":"0","35_0":"0"},"not_discounted_prices":{"37_0":"23159","36_0":"24759","34_0":"24759","35_0":"24759"},"variant_supplier_codes":{"37_0":"220V04000810K6FS","36_0":"220V04000810K6FM1","34_0":"220V04000810K6FM3","35_0":"220V04000810K6FM2"},"active_ids":{"one_37":["0"],"two_0":["37","36","34","35"],"one_36":["0"],"one_34":["0"],"one_35":["0"]},"variant_informations":{"37_0":{"additional_information":""},"36_0":{"additional_information":""},"34_0":{"additional_information":""},"35_0":{"additional_information":""}},"variant_stocks":{"37_0":"100","36_0":"100","34_0":"100","35_0":"100"}}

Type 20V Decorative Radiator 400x810 Wood Effect ∆t50°C=510 Kcal/h | ∆t60°C= 643 Kcal/h | 11 Pipes | Heats 4-10 m2

27,790.80 TL

15,284.94 TL
