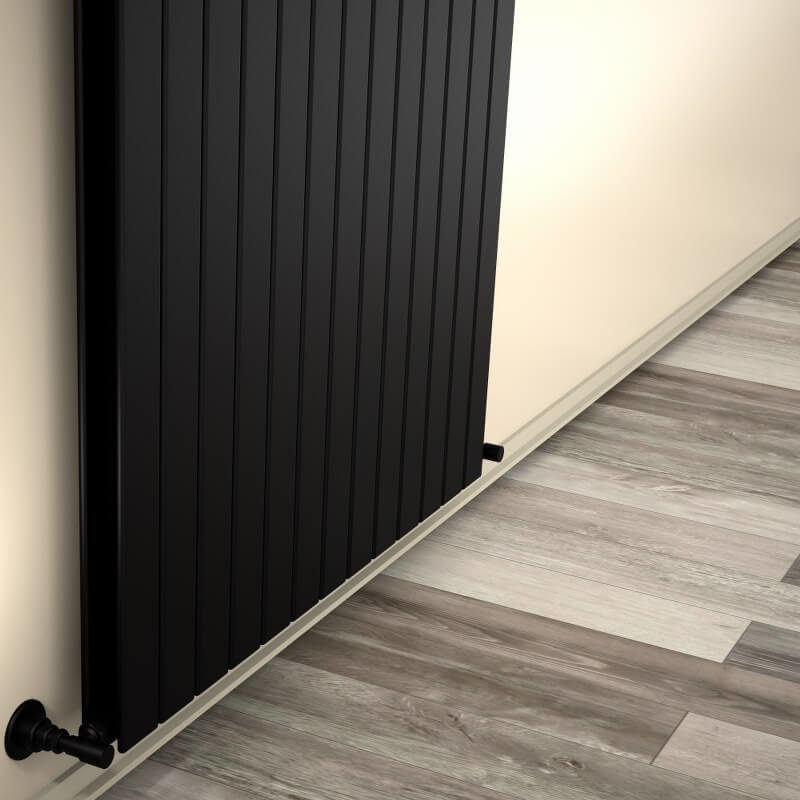

TECHNICAL INFORMATION
• Model = 20V
• Material =Steel
• Height=400 mm
• Width=958 mm
• Color/Coating=Matte Black RAL9005
• Number of Sections=13 Pieces
• Total Number of Profiles (Front + Back)=13+13 Pieces
• Profile Dimension=70x11 mm
• Collector Dimension=38 mm
• Maximum Working Pressure=4,5 bar
• Radiator Depth=58 mm
• Wall to Center of Inlet=64 mm
• Wall Projection Distance=93 mm
• Radiator Thread Dimension=1/2"
• Water Volume=7 lt
• Weight=18,9 kg
• Boxed Weight=20,35 kg
• Box Size=100x45x9,6 cmTAPPING OPTIONS
• Standard Entry1 =1048 mm
• Standard Entry2 =350 mm
• Standard Entry Cross =1048 mm
• Bottom Middle Entrance=50mm
• Bottom Right Entrance=50mm
• Bottom Left Entrance=50mmHeat Output
Kcal / h
• Heat Output 75/65-20°?t=50°C = 603 Kcal/h
• Heat Output 90/70-20° ?t=60°C=760Kcal/h
• Heat Output 55/45-20° ?t=30°C=309 Kcal/h
Watts
• Heat Output 75/65-20°?t=50°C=701 Watt
• Heat Output 90/70-20°?t=60°C=884 Watt
• Heat Output 55/45-20°?t=30°C=359 Watt
Btu
• Heat Output 75/65-20°?t=50°C=2392 Btu
• Heat Output 90/70-20°?t=60°C=3014 Btu
• Heat Output 55/45-20°?t=30°C=1225 Btu
Warranty:10 YearsDelivery Information:21 Day
