TECHNICAL INFORMATION

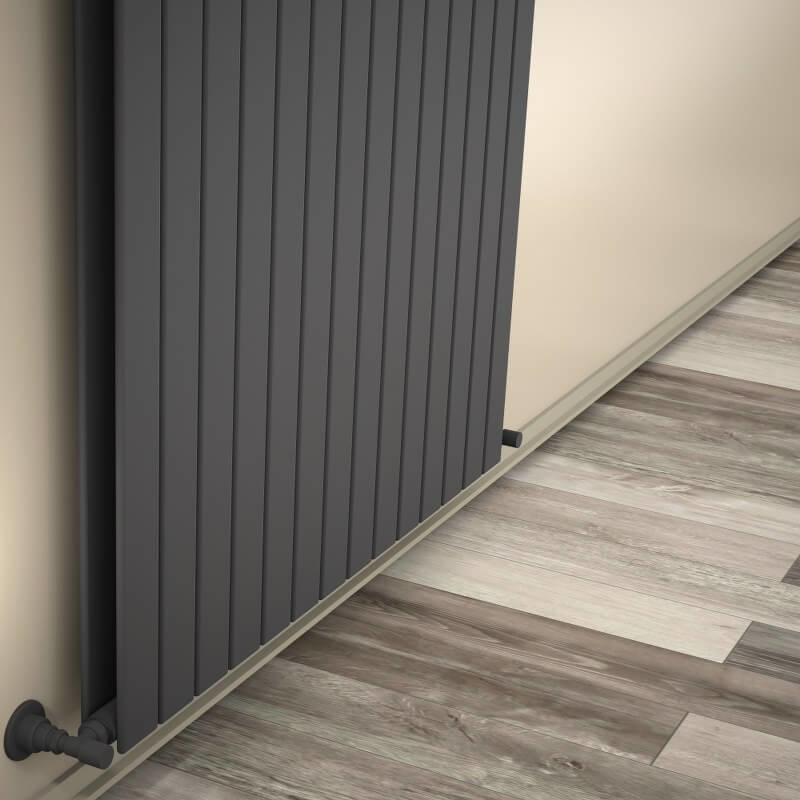

• Model = 20V
• Material =Steel
• Height=500 mm
• Width=1032 mm
• Color/Coating=Anthracite
• Number of Sections=14 Pieces
• Total Number of Profiles (Front + Back)=14+14 Pieces
• Profile Dimension=70x11 mm
• Collector Dimension=38 mm
• Maximum Working Pressure=4,5 bar
• Radiator Depth=58 mm
• Wall to Center of Inlet=64 mm
• Wall Projection Distance=93 mm
• Radiator Thread Dimension=1/2"
• Water Volume=8,9 lt
• Weight=24,7 kg
• Boxed Weight=26,55 kg
• Box Size=108x55x9,6 cmTAPPING OPTIONS
• Standard Entry1 =1122 mm
• Standard Entry2 =450 mm
• Standard Entry Cross =1122 mm
• Bottom Middle Entrance=50mm
• Bottom Right Entrance=50mm
• Bottom Left Entrance=50mmHeat Output
Kcal / h
• Heat Output 75/65-20°?t=50°C = 802 Kcal/h
• Heat Output 90/70-20° ?t=60°C=1011Kcal/h
• Heat Output 55/45-20° ?t=30°C=411 Kcal/h
Watts
• Heat Output 75/65-20°?t=50°C=932 Watt
• Heat Output 90/70-20°?t=60°C=1175 Watt
• Heat Output 55/45-20°?t=30°C=478 Watt
Btu
• Heat Output 75/65-20°?t=50°C=3180 Btu
• Heat Output 90/70-20°?t=60°C=4007 Btu
• Heat Output 55/45-20°?t=30°C=1629 Btu
Warranty:10 YearsDelivery Information:21 Day
