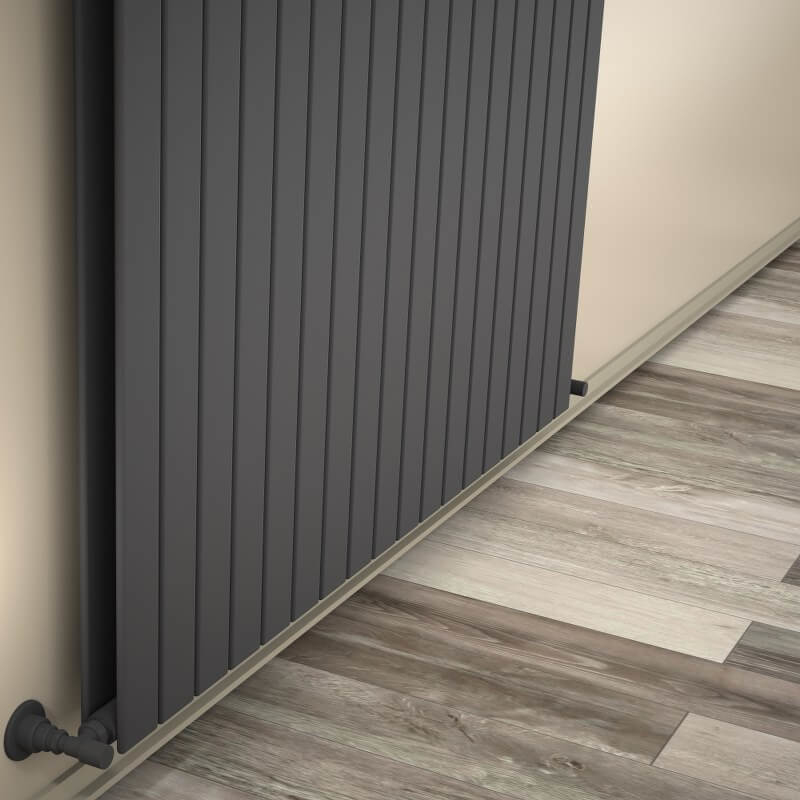

Type 20V Decorative Radiator 500x1328 Anthracite

Product Code : 220V05001328B2TS
Guarantee : 10 Year
TAXES Included
Price
:
42,067.50 TL
Discounted Price
:
23,137.13 TL
<p>10 Year Warranty</p>
10 Years
Warranty
Kargo Bedava
2000€ +
Free Shipping
Options

Standard Entry Standard Entry

Bottom Middle 50mm Bottom Middle 50mm

Bottom Left 50mm Bottom Left 50mm

Bottom Right 50mm Bottom Right 50mm

Choose Quantity
Planned Delivery
:
21.01.2025 (21 Days)
İnstagram Takip Et
Campaign
  • Features
  • Downloads
  • Payment Options
  • Comments (0)

  • TECHNICAL INFORMATION

    • Model = 20V

    • Material =Steel

    • Height    =500 mm

    • Width=1328 mm

    • Color/Coating=Anthracite

    • Number of Sections=18 Pieces

    • Total Number of Profiles (Front + Back)=18+18 Pieces

    • Profile Dimension=70x11 mm

    • Collector Dimension=38 mm

    • Maximum Working Pressure=4,5 bar

    • Radiator Depth=58 mm

    • Wall to Center of Inlet=64 mm

    • Wall Projection Distance=93 mm

    • Radiator Thread Dimension=1/2"

    • Water Volume=11,5 lt

    • Weight=31,8 kg

    • Boxed Weight    =34,1 kg

    • Box Size=137x55x9,6 cm


    TAPPING OPTIONS




    • Standard Entry1 =1418 mm

    • Standard Entry2 =450 mm

    • Standard Entry Cross =1418 mm

    • Bottom Middle Entrance=50mm

    • Bottom Right Entrance=50mm

    • Bottom Left Entrance=50mm


    Heat Output




    Kcal / h


    • Heat Output 75/65-20°?t=50°C = 1031 Kcal/h

    • Heat Output 90/70-20° ?t=60°C=1300Kcal/h

    • Heat Output 55/45-20° ?t=30°C=528 Kcal/h


    Watts

    • Heat Output 75/65-20°?t=50°C=1198 Watt

    • Heat Output 90/70-20°?t=60°C=1510 Watt

    • Heat Output 55/45-20°?t=30°C=614 Watt


    Btu

    • Heat Output 75/65-20°?t=50°C=4088 Btu

    • Heat Output 90/70-20°?t=60°C=5151 Btu

    • Heat Output 55/45-20°?t=30°C=2094 Btu
    Warranty
    :
    10 Years
    Delivery Information
    :
    21 Day
    Tags
    dizayn radyatör , dizayn panel radyatör fiyatları , dizayn panel radyatör , radyatör modelleri , radyatör fiyatları , radyatör petek , panel radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler
Other Colors
  • %45 Discount - Type 20V Decorative Radiator 500x1328 White
    AKS Seçenekleri

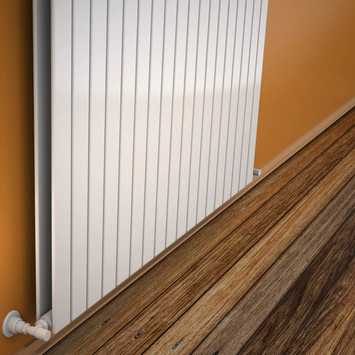

    Type 20V Decorative Radiator 500x1328 White ∆t50°C=1030 Kcal/h | ∆t60°C= 1298 Kcal/h | 18 Pipes | Heats 7-20 m2
    33,654.00 TL
    18,509.70 TL
  • %45 Discount - Type 20V Decorative Radiator 500x1328 Anthracite
    AKS Seçenekleri
    Type 20V Decorative Radiator 500x1328 Anthracite ∆t50°C=1030 Kcal/h | ∆t60°C= 1298 Kcal/h | 18 Pipes | Heats 7-20 m2
    42,067.50 TL
    23,137.13 TL
  • %45 Discount - Type 20V Decorative Radiator 500x1328 Matte Black
    AKS Seçenekleri
    Type 20V Decorative Radiator 500x1328 Matte Black ∆t50°C=1030 Kcal/h | ∆t60°C= 1298 Kcal/h | 18 Pipes | Heats 7-20 m2
    42,067.50 TL
    23,137.13 TL
  • %45 Discount - Type 20V Decorative Radiator 500x1328 Wood Effect
    AKS Seçenekleri
    Type 20V Decorative Radiator 500x1328 Wood Effect ∆t50°C=1030 Kcal/h | ∆t60°C= 1298 Kcal/h | 18 Pipes | Heats 7-20 m2
    45,415.20 TL
    24,978.36 TL
