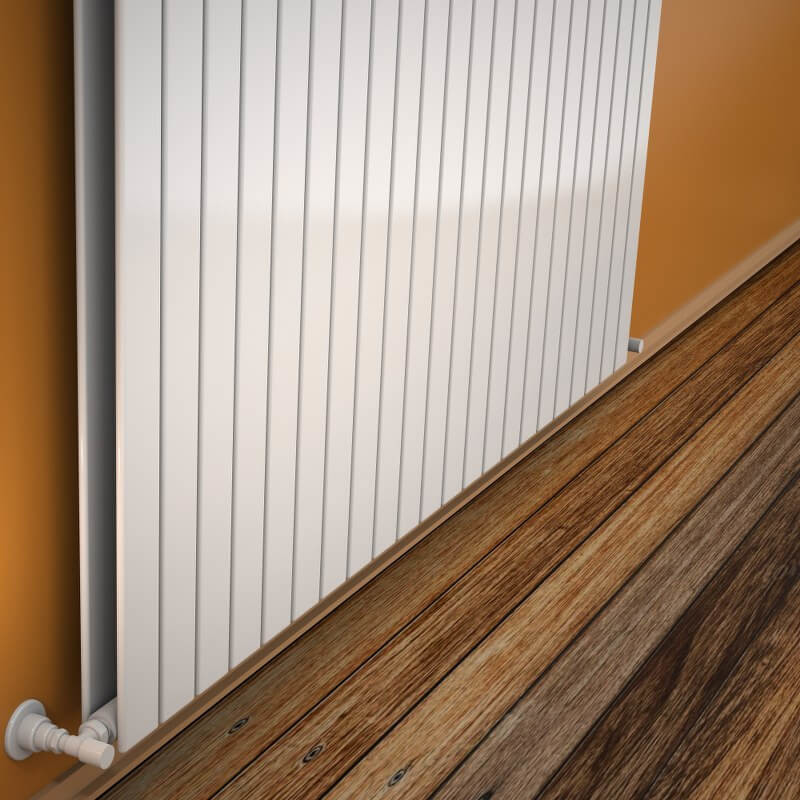

TECHNICAL INFORMATION
• Model = 20V
• Material =Steel
• Height=500 mm
• Width=1624 mm
• Color/Coating=Bright White RAL9016
• Number of Sections=22 Pieces
• Total Number of Profiles (Front + Back)=22+22 Pieces
• Profile Dimension=70x11 mm
• Collector Dimension=38 mm
• Maximum Working Pressure=4,5 bar
• Radiator Depth=58 mm
• Wall to Center of Inlet=64 mm
• Wall Projection Distance=93 mm
• Radiator Thread Dimension=1/2"
• Water Volume=14 lt
• Weight=38,8 kg
• Boxed Weight=41,54 kg
• Box Size=167x55x9,6 cmTAPPING OPTIONS
• Standard Entry1 =1714 mm
• Standard Entry2 =450 mm
• Standard Entry Cross =1714 mm
• Bottom Middle Entrance=50mm
• Bottom Right Entrance=50mm
• Bottom Left Entrance=50mmHeat Output
Kcal / h
• Heat Output 75/65-20°?t=50°C = 1260 Kcal/h
• Heat Output 90/70-20° ?t=60°C=1588Kcal/h
• Heat Output 55/45-20° ?t=30°C=646 Kcal/h
Watts
• Heat Output 75/65-20°?t=50°C=1465 Watt
• Heat Output 90/70-20°?t=60°C=1846 Watt
• Heat Output 55/45-20°?t=30°C=751 Watt
Btu
• Heat Output 75/65-20°?t=50°C=4999 Btu
• Heat Output 90/70-20°?t=60°C=6299 Btu
• Heat Output 55/45-20°?t=30°C=2560 Btu
Warranty:10 YearsDelivery Information:21 Day
