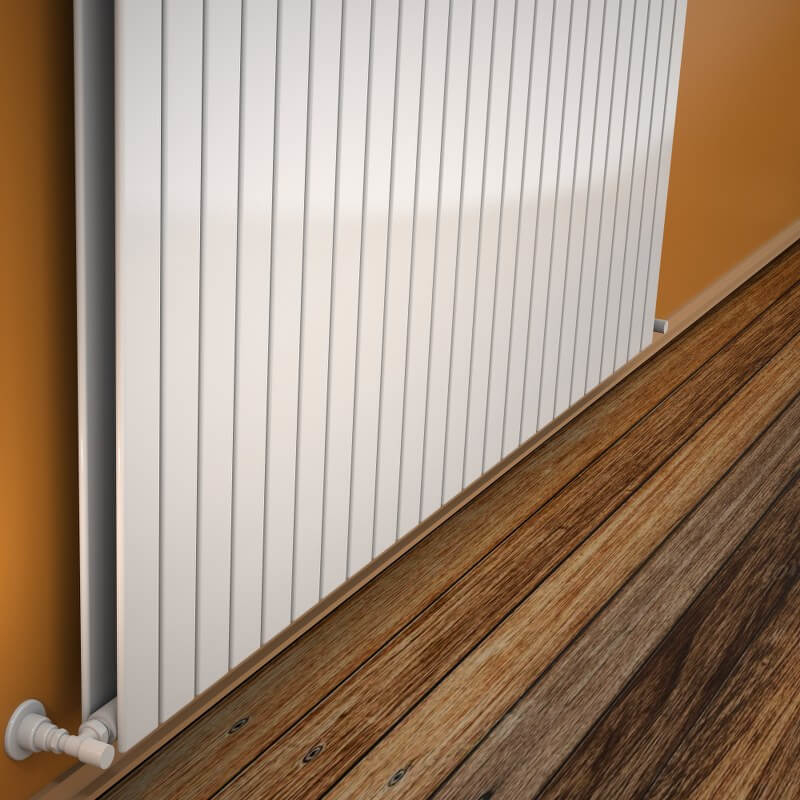

Type 20V Decorative Radiator 500x1772 White

Name: Type 20V Decorative Radiator 500x1772 White
SKU: 220V05001772B1PS
Price: 23830.62 TRY
Availability: InStock

Product Code : 220V05001772B1PS

Guarantee : 10 Year

TAXES Included

Price

43,328.40 TL

Discounted Price

23,830.62 TL

10 Years
Warranty

2000€ +
Free Shipping

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Choose Quantity

Add to Cart

Planned Delivery

12.01.2025 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 20V

• Material =Steel

• Height=500 mm

• Width=1772 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=24 Pieces

• Total Number of Profiles (Front + Back)=24+24 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=58 mm

• Wall to Center of Inlet=64 mm

• Wall Projection Distance=93 mm

• Radiator Thread Dimension=1/2"

• Water Volume=15,3 lt

• Weight=42,3 kg

• Boxed Weight=45,26 kg

• Box Size=182x55x9,6 cm

TAPPING OPTIONS

• Standard Entry1 =1862 mm

• Standard Entry2 =450 mm

• Standard Entry Cross =1862 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 1375 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1733Kcal/h

• Heat Output 55/45-20° ?t=30°C=704 Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=1598 Watt

• Heat Output 90/70-20°?t=60°C=2014 Watt

• Heat Output 55/45-20°?t=30°C=819 Watt

Btu

• Heat Output 75/65-20°?t=50°C=5453 Btu

• Heat Output 90/70-20°?t=60°C=6871 Btu

• Heat Output 55/45-20°?t=30°C=2792 Btu
