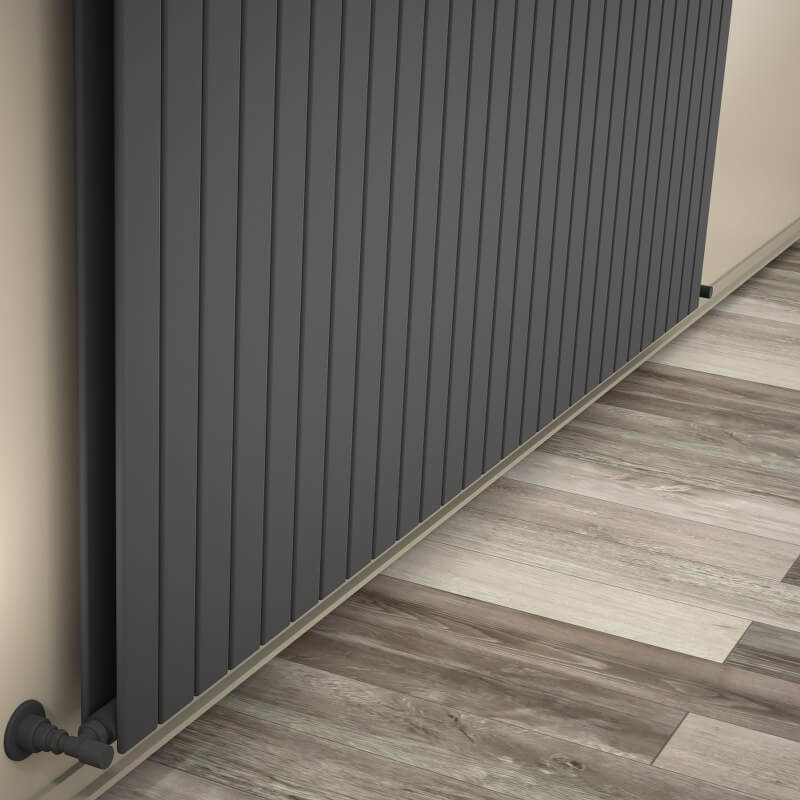

Type 20V Decorative Radiator 500x2068 Anthracite

TECHNICAL INFORMATION

• Model = 20V

• Material =Steel

• Height=500 mm

• Width=2068 mm

• Color/Coating=Anthracite

• Number of Sections=28 Pieces

• Total Number of Profiles (Front + Back)=28+28 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=58 mm

• Wall to Center of Inlet=64 mm

• Wall Projection Distance=93 mm

• Radiator Thread Dimension=1/2"

• Water Volume=17,9 lt

• Weight=49,4 kg

• Boxed Weight=52,81 kg

• Box Size=211x55x9,6 cm

TAPPING OPTIONS

• Standard Entry1 =2158 mm

• Standard Entry2 =450 mm

• Standard Entry Cross =2158 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 1604 Kcal/h

• Heat Output 90/70-20° ?t=60°C=2022Kcal/h

• Heat Output 55/45-20° ?t=30°C=822 Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=1864 Watt

• Heat Output 90/70-20°?t=60°C=2349 Watt

• Heat Output 55/45-20°?t=30°C=955 Watt


Btu

• Heat Output 75/65-20°?t=50°C=6360 Btu

• Heat Output 90/70-20°?t=60°C=8014 Btu

• Heat Output 55/45-20°?t=30°C=3257 Btu
