TECHNICAL INFORMATION

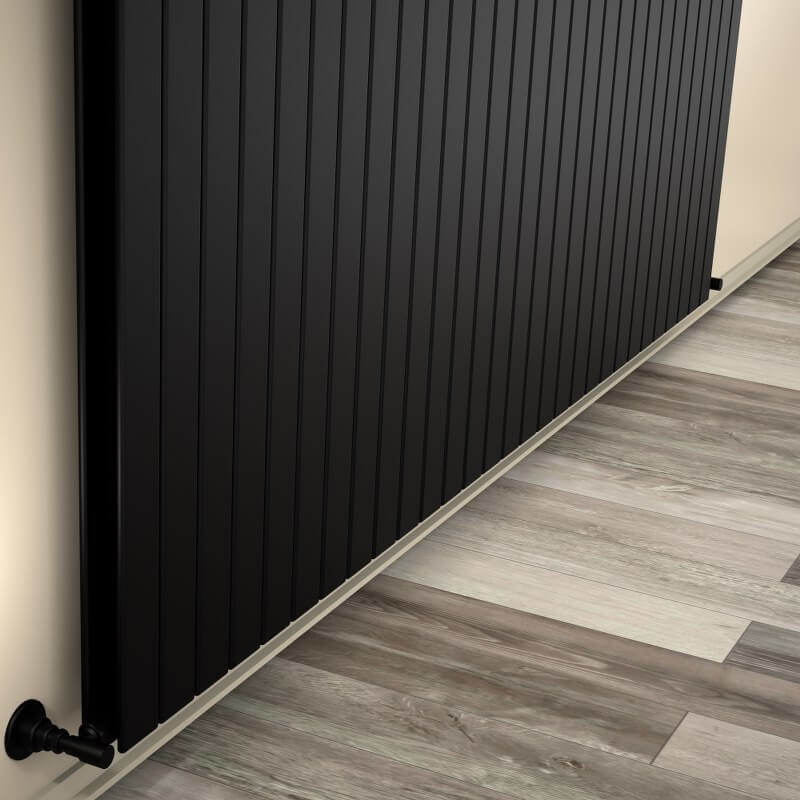

• Model = 20V
• Material =Steel
• Height=500 mm
• Width=2142 mm
• Color/Coating=Matte Black RAL9005
• Number of Sections=29 Pieces
• Total Number of Profiles (Front + Back)=29+29 Pieces
• Profile Dimension=70x11 mm
• Collector Dimension=38 mm
• Maximum Working Pressure=4,5 bar
• Radiator Depth=58 mm
• Wall to Center of Inlet=64 mm
• Wall Projection Distance=93 mm
• Radiator Thread Dimension=1/2"
• Water Volume=18,5 lt
• Weight=51,1 kg
• Boxed Weight=54,62 kg
• Box Size=219x55x9,6 cmTAPPING OPTIONS
• Standard Entry1 =2232 mm
• Standard Entry2 =450 mm
• Standard Entry Cross =2232 mm
• Bottom Middle Entrance=50mm
• Bottom Right Entrance=50mm
• Bottom Left Entrance=50mmHeat Output
Kcal / h
• Heat Output 75/65-20°?t=50°C = 1661 Kcal/h
• Heat Output 90/70-20° ?t=60°C=2093Kcal/h
• Heat Output 55/45-20° ?t=30°C=851 Kcal/h
Watts
• Heat Output 75/65-20°?t=50°C=1931 Watt
• Heat Output 90/70-20°?t=60°C=2434 Watt
• Heat Output 55/45-20°?t=30°C=989 Watt
Btu
• Heat Output 75/65-20°?t=50°C=6589 Btu
• Heat Output 90/70-20°?t=60°C=8303 Btu
• Heat Output 55/45-20°?t=30°C=3374 Btu
Warranty:10 YearsDelivery Information:21 Day
