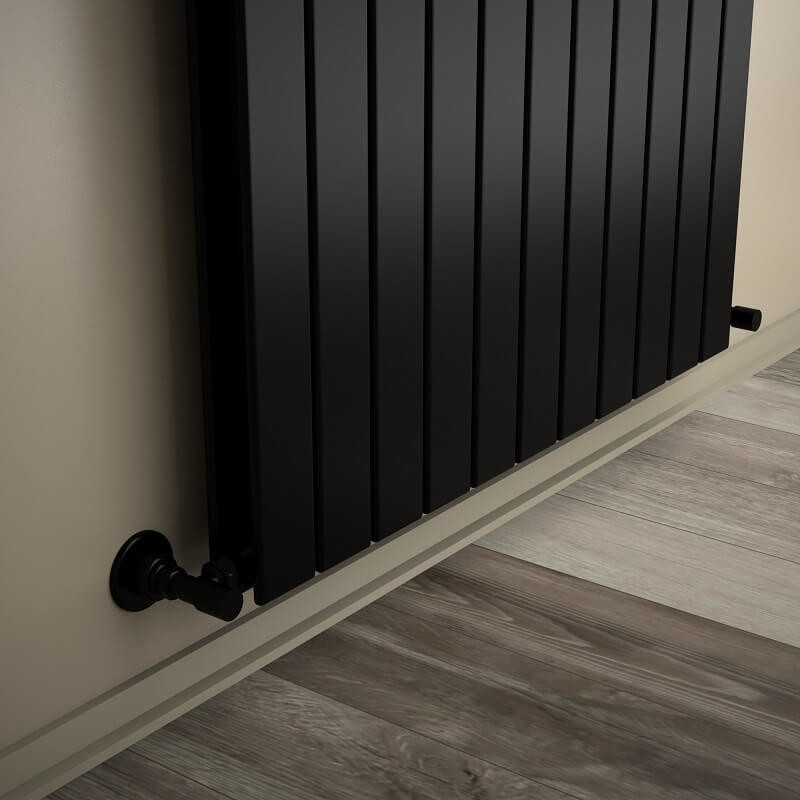

TECHNICAL INFORMATION
• Model = 20V
• Material =Steel
• Height=500 mm
• Width=810 mm
• Color/Coating=Matte Black RAL9005
• Number of Sections=11 Pieces
• Total Number of Profiles (Front + Back)=11+11 Pieces
• Profile Dimension=70x11 mm
• Collector Dimension=38 mm
• Maximum Working Pressure=4,5 bar
• Radiator Depth=58 mm
• Wall to Center of Inlet=64 mm
• Wall Projection Distance=93 mm
• Radiator Thread Dimension=1/2"
• Water Volume=7 lt
• Weight=19,4 kg
• Boxed Weight=20,92 kg
• Box Size=85x55x9,6 cmTAPPING OPTIONS
• Standard Entry1 =900 mm
• Standard Entry2 =450 mm
• Standard Entry Cross =900 mm
• Bottom Middle Entrance=50mm
• Bottom Right Entrance=50mm
• Bottom Left Entrance=50mmHeat Output
Kcal / h
• Heat Output 75/65-20°?t=50°C = 630 Kcal/h
• Heat Output 90/70-20° ?t=60°C=794Kcal/h
• Heat Output 55/45-20° ?t=30°C=323 Kcal/h
Watts
• Heat Output 75/65-20°?t=50°C=732 Watt
• Heat Output 90/70-20°?t=60°C=923 Watt
• Heat Output 55/45-20°?t=30°C=375 Watt
Btu
• Heat Output 75/65-20°?t=50°C=2498 Btu
• Heat Output 90/70-20°?t=60°C=3148 Btu
• Heat Output 55/45-20°?t=30°C=1279 Btu
Warranty:10 YearsDelivery Information:21 Day
