TECHNICAL INFORMATION

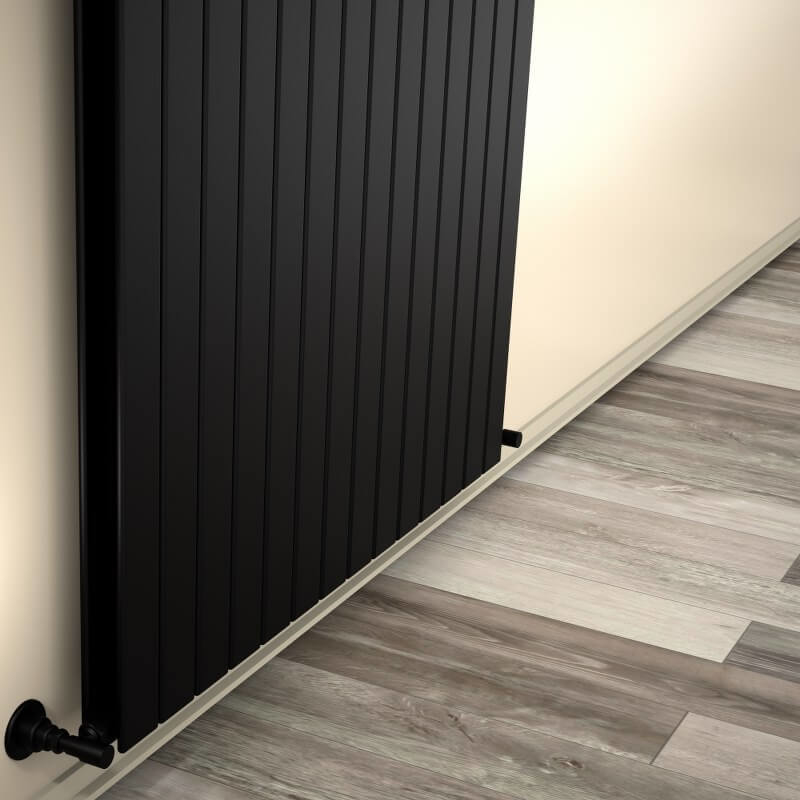

• Model = 20V
• Material =Steel
• Height=600 mm
• Width=1032 mm
• Color/Coating=Matte Black RAL9005
• Number of Sections=14 Pieces
• Total Number of Profiles (Front + Back)=14+14 Pieces
• Profile Dimension=70x11 mm
• Collector Dimension=38 mm
• Maximum Working Pressure=4,5 bar
• Radiator Depth=58 mm
• Wall to Center of Inlet=64 mm
• Wall Projection Distance=93 mm
• Radiator Thread Dimension=1/2"
• Water Volume=10,3 lt
• Weight=29,1 kg
• Boxed Weight=31,26 kg
• Box Size=108x65x9,6 cmTAPPING OPTIONS
• Standard Entry1 =1122 mm
• Standard Entry2 =550 mm
• Standard Entry Cross =1122 mm
• Bottom Middle Entrance=50mm
• Bottom Right Entrance=50mm
• Bottom Left Entrance=50mmHeat Output
Kcal / h
• Heat Output 75/65-20°?t=50°C = 951 Kcal/h
• Heat Output 90/70-20° ?t=60°C=1199Kcal/h
• Heat Output 55/45-20° ?t=30°C=487 Kcal/h
Watts
• Heat Output 75/65-20°?t=50°C=1105 Watt
• Heat Output 90/70-20°?t=60°C=1393 Watt
• Heat Output 55/45-20°?t=30°C=566 Watt
Btu
• Heat Output 75/65-20°?t=50°C=3771 Btu
• Heat Output 90/70-20°?t=60°C=4752 Btu
• Heat Output 55/45-20°?t=30°C=1931 Btu
Warranty:10 YearsDelivery Information:21 Day
Other Colors
-

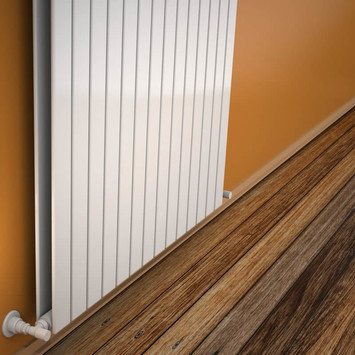

%45 DiscountAKS SeçenekleriType 20V Decorative Radiator 600x1032 White ∆t50°C=950 Kcal/h | ∆t60°C= 1198 Kcal/h | 14 Pipes | Heats 7-19 m2
-

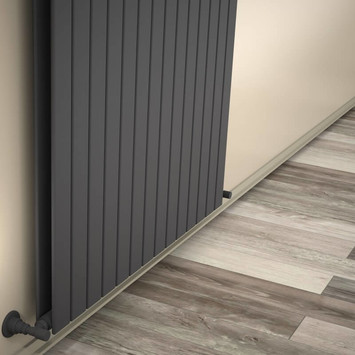

%45 DiscountAKS SeçenekleriType 20V Decorative Radiator 600x1032 Anthracite ∆t50°C=950 Kcal/h | ∆t60°C= 1198 Kcal/h | 14 Pipes | Heats 7-19 m2
-
%45 DiscountAKS SeçenekleriType 20V Decorative Radiator 600x1032 Matte Black ∆t50°C=950 Kcal/h | ∆t60°C= 1198 Kcal/h | 14 Pipes | Heats 7-19 m2
-
%45 DiscountAKS SeçenekleriType 20V Decorative Radiator 600x1032 Wood Effect ∆t50°C=950 Kcal/h | ∆t60°C= 1198 Kcal/h | 14 Pipes | Heats 7-19 m2
