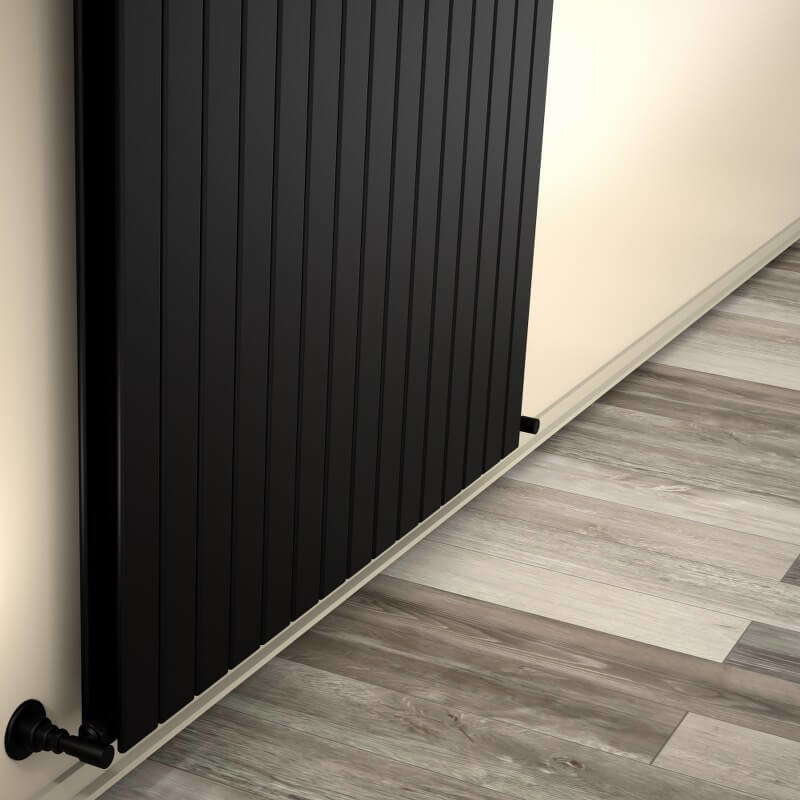

TECHNICAL INFORMATION
• Model = 20V
• Material =Steel
• Height=600 mm
• Width=1106 mm
• Color/Coating=Matte Black RAL9005
• Number of Sections=15 Pieces
• Total Number of Profiles (Front + Back)=15+15 Pieces
• Profile Dimension=70x11 mm
• Collector Dimension=38 mm
• Maximum Working Pressure=4,5 bar
• Radiator Depth=58 mm
• Wall to Center of Inlet=64 mm
• Wall Projection Distance=93 mm
• Radiator Thread Dimension=1/2"
• Water Volume=11,1 lt
• Weight=31,2 kg
• Boxed Weight=33,5 kg
• Box Size=115x65x9,6 cmTAPPING OPTIONS
• Standard Entry1 =1196 mm
• Standard Entry2 =550 mm
• Standard Entry Cross =1196 mm
• Bottom Middle Entrance=50mm
• Bottom Right Entrance=50mm
• Bottom Left Entrance=50mmHeat Output
Kcal / h
• Heat Output 75/65-20°?t=50°C = 1019 Kcal/h
• Heat Output 90/70-20° ?t=60°C=1284Kcal/h
• Heat Output 55/45-20° ?t=30°C=522 Kcal/h
Watts
• Heat Output 75/65-20°?t=50°C=1184 Watt
• Heat Output 90/70-20°?t=60°C=1492 Watt
• Heat Output 55/45-20°?t=30°C=607 Watt
Btu
• Heat Output 75/65-20°?t=50°C=4040 Btu
• Heat Output 90/70-20°?t=60°C=5091 Btu
• Heat Output 55/45-20°?t=30°C=2069 Btu
Warranty:10 YearsDelivery Information:21 Day
Other Colors
-

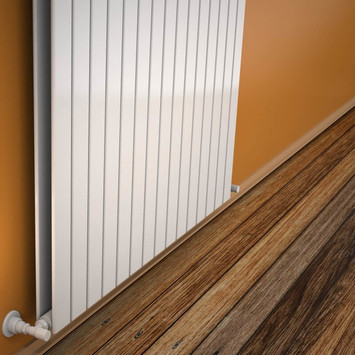

%45 DiscountAKS SeçenekleriType 20V Decorative Radiator 600x1106 White ∆t50°C=1018 Kcal/h | ∆t60°C= 1283 Kcal/h | 15 Pipes | Heats 7-20 m2
-

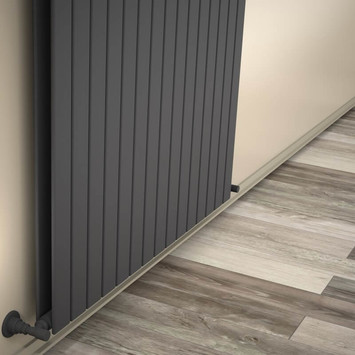

%45 DiscountAKS SeçenekleriType 20V Decorative Radiator 600x1106 Anthracite ∆t50°C=1018 Kcal/h | ∆t60°C= 1283 Kcal/h | 15 Pipes | Heats 7-20 m2
-
