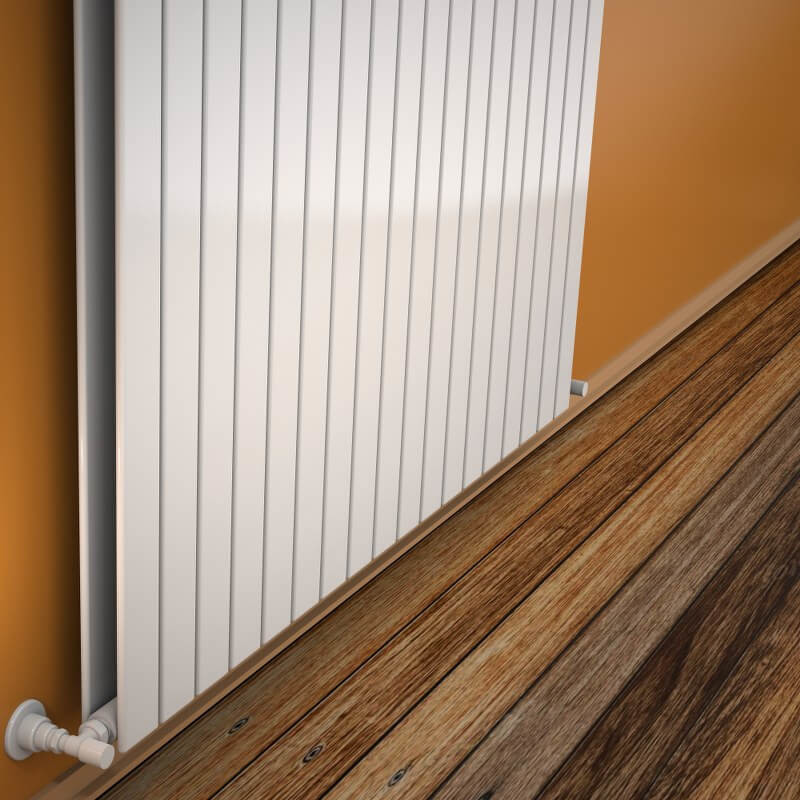

Type 20V Decorative Radiator 600x1328 White

Name: Type 20V Decorative Radiator 600x1328 White
SKU: 220V06001328B1PS
Price: 21329.22 TRY
Availability: InStock

Product Code : 220V06001328B1PS

Guarantee : 10 Year

TAXES Included

Price

38,780.40 TL

Discounted Price

21,329.22 TL

10 Years
Warranty

2000€ +
Free Shipping

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Choose Quantity

Add to Cart

Planned Delivery

24.01.2025 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 20V

• Material =Steel

• Height=600 mm

• Width=1328 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=18 Pieces

• Total Number of Profiles (Front + Back)=18+18 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=58 mm

• Wall to Center of Inlet=64 mm

• Wall Projection Distance=93 mm

• Radiator Thread Dimension=1/2"

• Water Volume=13,3 lt

• Weight=37,4 kg

• Boxed Weight=40,1 kg

• Box Size=137x65x9,6 cm

TAPPING OPTIONS

• Standard Entry1 =1418 mm

• Standard Entry2 =550 mm

• Standard Entry Cross =1418 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 1223 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1541Kcal/h

• Heat Output 55/45-20° ?t=30°C=627 Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=1421 Watt

• Heat Output 90/70-20°?t=60°C=1791 Watt

• Heat Output 55/45-20°?t=30°C=728 Watt

Btu

• Heat Output 75/65-20°?t=50°C=4849 Btu

• Heat Output 90/70-20°?t=60°C=6110 Btu

• Heat Output 55/45-20°?t=30°C=2483 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day

Tags

dizayn radyatör , dizayn panel radyatör fiyatları , dizayn panel radyatör , radyatör modelleri , radyatör fiyatları , radyatör petek , panel radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler
