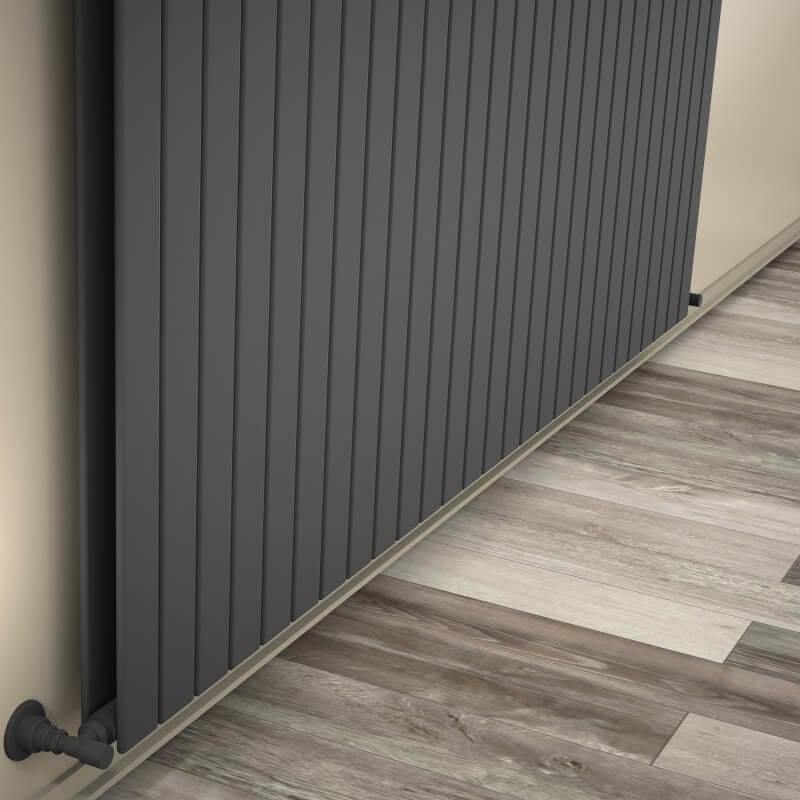

TECHNICAL INFORMATION
• Model = 20V
• Material =Steel
• Height=600 mm
• Width=1994 mm
• Color/Coating=Anthracite
• Number of Sections=27 Pieces
• Total Number of Profiles (Front + Back)=27+27 Pieces
• Profile Dimension=70x11 mm
• Collector Dimension=38 mm
• Maximum Working Pressure=4,5 bar
• Radiator Depth=58 mm
• Wall to Center of Inlet=64 mm
• Wall Projection Distance=93 mm
• Radiator Thread Dimension=1/2"
• Water Volume=19,9 lt
• Weight=56 kg
• Boxed Weight=59,89 kg
• Box Size=204x65x9,6 cmTAPPING OPTIONS
• Standard Entry1 =2084 mm
• Standard Entry2 =550 mm
• Standard Entry Cross =2084 mm
• Bottom Middle Entrance=50mm
• Bottom Right Entrance=50mm
• Bottom Left Entrance=50mmHeat Output
Kcal / h
• Heat Output 75/65-20°?t=50°C = 1833 Kcal/h
• Heat Output 90/70-20° ?t=60°C=2310Kcal/h
• Heat Output 55/45-20° ?t=30°C=939 Kcal/h
Watts
• Heat Output 75/65-20°?t=50°C=2131 Watt
• Heat Output 90/70-20°?t=60°C=2686 Watt
• Heat Output 55/45-20°?t=30°C=1092 Watt
Btu
• Heat Output 75/65-20°?t=50°C=7271 Btu
• Heat Output 90/70-20°?t=60°C=9162 Btu
• Heat Output 55/45-20°?t=30°C=3723 Btu
Warranty:10 YearsDelivery Information:21 Day
