TECHNICAL INFORMATION
• Model = 20V
• Material =Steel
• Height=600 mm
• Width=2290 mm
• Color/Coating=Matte Black RAL9005
• Number of Sections=31 Pieces
• Total Number of Profiles (Front + Back)=31+31 Pieces
• Profile Dimension=70x11 mm
• Collector Dimension=38 mm
• Maximum Working Pressure=4,5 bar
• Radiator Depth=58 mm
• Wall to Center of Inlet=64 mm
• Wall Projection Distance=93 mm
• Radiator Thread Dimension=1/2"
• Water Volume=22,9 lt
• Weight=64,3 kg
• Boxed Weight=68,73 kg
• Box Size=233x65x9,6 cmTAPPING OPTIONS
• Standard Entry1 =2380 mm
• Standard Entry2 =550 mm
• Standard Entry Cross =2380 mm
• Bottom Middle Entrance=50mm
• Bottom Right Entrance=50mm
• Bottom Left Entrance=50mmHeat Output
Kcal / h
• Heat Output 75/65-20°?t=50°C = 2105 Kcal/h
• Heat Output 90/70-20° ?t=60°C=2653Kcal/h
• Heat Output 55/45-20° ?t=30°C=1078 Kcal/h
Watts
• Heat Output 75/65-20°?t=50°C=2447 Watt
• Heat Output 90/70-20°?t=60°C=3084 Watt
• Heat Output 55/45-20°?t=30°C=1253 Watt
Btu
• Heat Output 75/65-20°?t=50°C=8350 Btu
• Heat Output 90/70-20°?t=60°C=10521 Btu
• Heat Output 55/45-20°?t=30°C=4276 Btu
Warranty:10 YearsDelivery Information:21 Day
Other Colors
-
%45 DiscountAKS SeçenekleriType 20V Decorative Radiator 600x2290 White ∆t50°C=2104 Kcal/h | ∆t60°C= 2652 Kcal/h | 31 Pipes | Heats 14-41 m2
-

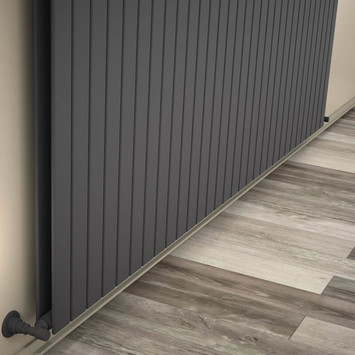

%45 DiscountAKS SeçenekleriType 20V Decorative Radiator 600x2290 Anthracite ∆t50°C=2104 Kcal/h | ∆t60°C= 2652 Kcal/h | 31 Pipes | Heats 14-41 m2
-

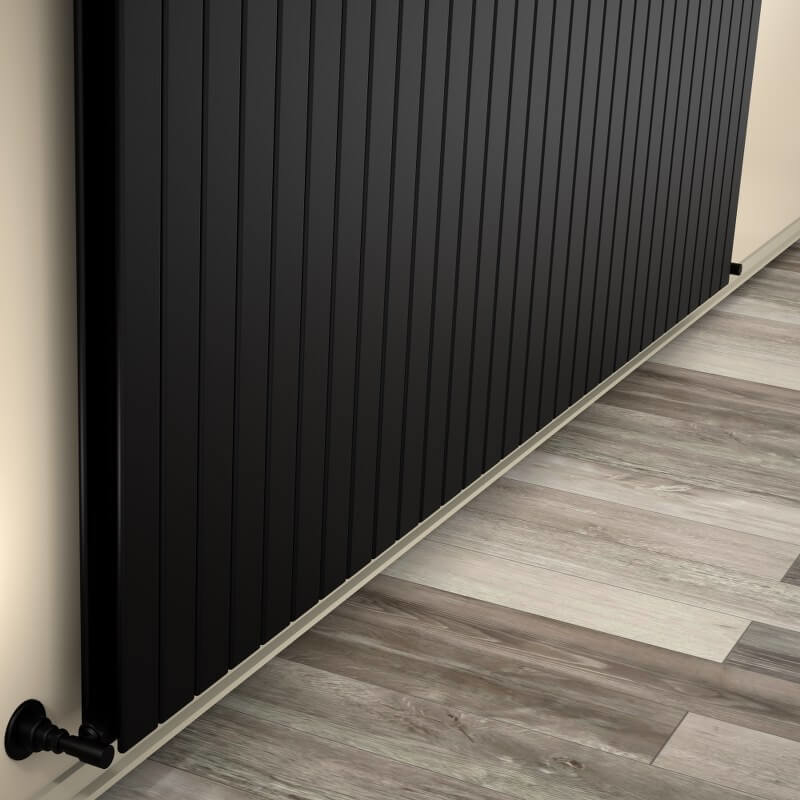

%45 DiscountAKS SeçenekleriType 20V Decorative Radiator 600x2290 Matte Black ∆t50°C=2104 Kcal/h | ∆t60°C= 2652 Kcal/h | 31 Pipes | Heats 14-41 m2
-
%45 DiscountAKS SeçenekleriType 20V Decorative Radiator 600x2290 Wood Effect ∆t50°C=2104 Kcal/h | ∆t60°C= 2652 Kcal/h | 31 Pipes | Heats 14-41 m2
