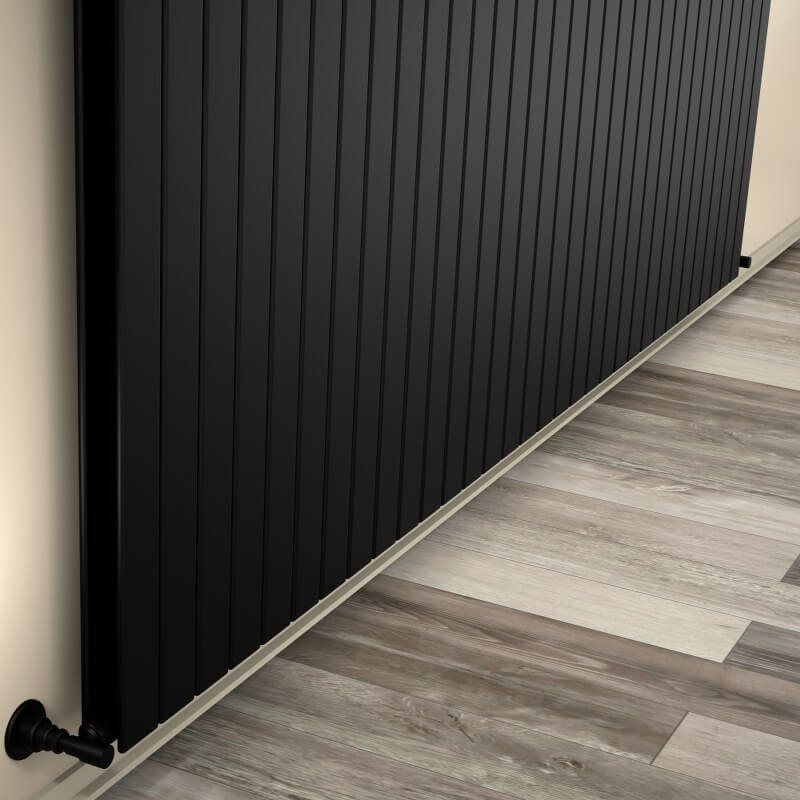

Type 20V Decorative Radiator 600x2364 Matte Black

Product Code : 220V06002364B3MS
Guarantee : 10 Year
TAXES Included
Price
:
81,654.00 TL
Discounted Price
:
44,909.70 TL
<p>10 Year Warranty</p>
10 Years
Warranty
Kargo Bedava
2000€ +
Free Shipping
Choose Quantity
Planned Delivery
:
23.01.2025 (21 Days)
İnstagram Takip Et
Campaign
  • Features
  • Downloads
  • Payment Options
  • Comments (0)
  • TECHNICAL INFORMATION

    • Model = 20V

    • Material =Steel

    • Height
    =600 mm

    • Width=2364 mm

    • Color/Coating=Matte Black RAL9005

    • Number of Sections=32 Pieces

    • Total Number of Profiles (Front + Back)=32+32 Pieces

    • Profile Dimension=70x11 mm

    • Collector Dimension=38 mm

    • Maximum Working Pressure=4,5 bar

    • Radiator Depth=58 mm

    • Wall to Center of Inlet=64 mm

    • Wall Projection Distance=93 mm

    • Radiator Thread Dimension=1/2"

    • Water Volume=23,6 lt

    • Weight=66,4 kg

    • Boxed Weight
    =70,96 kg

    • Box Size=241x65x9,6 cm


    TAPPING OPTIONS




    • Standard Entry1 =2454 mm

    • Standard Entry2 =550 mm

    • Standard Entry Cross =2454 mm

    • Bottom Middle Entrance=50mm

    • Bottom Right Entrance=50mm

    • Bottom Left Entrance=50mm


    Heat Output




    Kcal / h


    • Heat Output 75/65-20°?t=50°C = 2173 Kcal/h

    • Heat Output 90/70-20° ?t=60°C=2738Kcal/h

    • Heat Output 55/45-20° ?t=30°C=1113 Kcal/h


    Watts

    • Heat Output 75/65-20°?t=50°C=2526 Watt

    • Heat Output 90/70-20°?t=60°C=3183 Watt

    • Heat Output 55/45-20°?t=30°C=1294 Watt


    Btu

    • Heat Output 75/65-20°?t=50°C=8619 Btu

    • Heat Output 90/70-20°?t=60°C=10860 Btu

    • Heat Output 55/45-20°?t=30°C=4413 Btu
