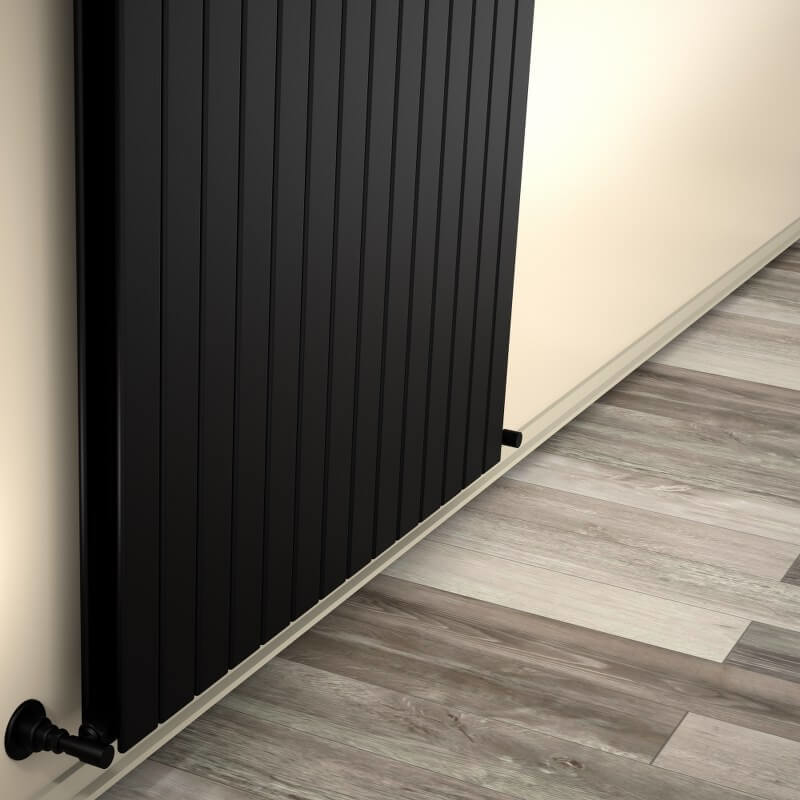

Type 20V Decorative Radiator 900x1032 Matte Black

Name: Type 20V Decorative Radiator 900x1032 Matte Black
SKU: 220V09001032B3MS
Price: 29617.50 TRY
Availability: InStock

Product Code : 220V09001032B3MS

Guarantee : 10 Year

TAXES Included

Price

53,850.00 TL

Discounted Price

29,617.50 TL

10 Years
Warranty

2000€ +
Free Shipping

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Choose Quantity

Add to Cart

Planned Delivery

13.01.2025 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 20V

• Material =Steel

• Height=900 mm

• Width=1032 mm

• Color/Coating=Matte Black RAL9005

• Number of Sections=14 Pieces

• Total Number of Profiles (Front + Back)=14+14 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=58 mm

• Wall to Center of Inlet=64 mm

• Wall Projection Distance=93 mm

• Radiator Thread Dimension=1/2"

• Water Volume=14,5 lt

• Weight=42,2 kg

• Boxed Weight=45,29 kg

• Box Size=108x95x9,6 cm

TAPPING OPTIONS

• Standard Entry1 =1122 mm

• Standard Entry2 =850 mm

• Standard Entry Cross =1122 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 1377 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1736Kcal/h

• Heat Output 55/45-20° ?t=30°C=706 Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=1601 Watt

• Heat Output 90/70-20°?t=60°C=2018 Watt

• Heat Output 55/45-20°?t=30°C=820 Watt

Btu

• Heat Output 75/65-20°?t=50°C=5463 Btu

• Heat Output 90/70-20°?t=60°C=6884 Btu

• Heat Output 55/45-20°?t=30°C=2798 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day

Tags
