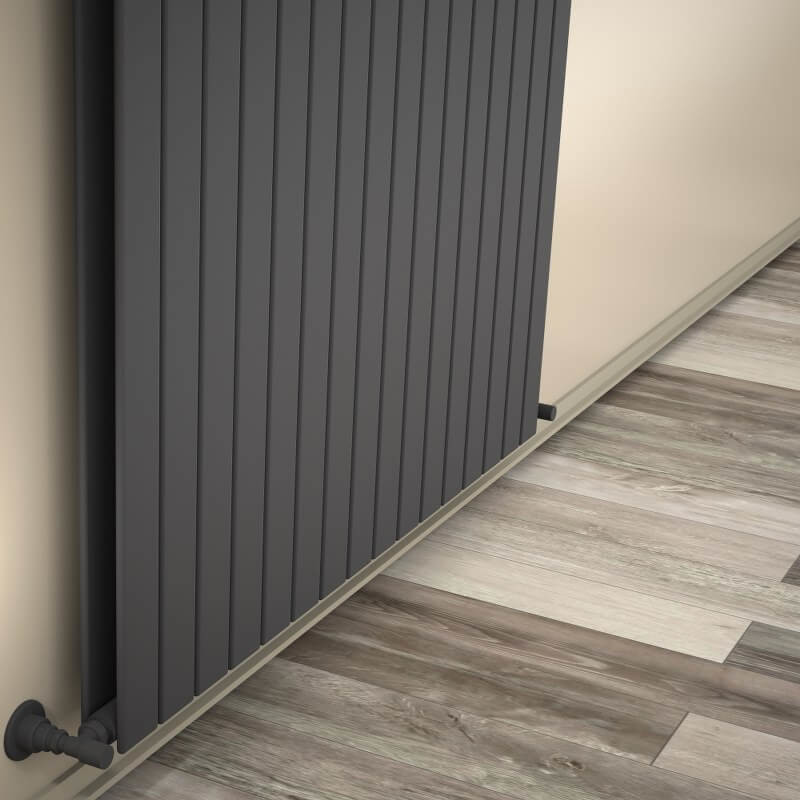

Type 20V Decorative Radiator 900x1180 Anthracite

Name: Type 20V Decorative Radiator 900x1180 Anthracite
SKU: 220V09001180B2TS
Price: 33369.60 TRY
Availability: InStock

Product Code : 220V09001180B2TS

Guarantee : 10 Year

TAXES Included

Price

60,672.00 TL

Discounted Price

33,369.60 TL

10 Years
Warranty

2000€ +
Free Shipping

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Choose Quantity

Add to Cart

Planned Delivery

20.11.2024 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 20V

• Material =Steel

• Height=900 mm

• Width=1180 mm

• Color/Coating=Anthracite

• Number of Sections=16 Pieces

• Total Number of Profiles (Front + Back)=16+16 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=58 mm

• Wall to Center of Inlet=64 mm

• Wall Projection Distance=93 mm

• Radiator Thread Dimension=1/2"

• Water Volume=16,6 lt

• Weight=48,2 kg

• Boxed Weight=51,69 kg

• Box Size=122x95x9,6 cm

TAPPING OPTIONS

• Standard Entry1 =1270 mm

• Standard Entry2 =850 mm

• Standard Entry Cross =1270 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 1574 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1984Kcal/h

• Heat Output 55/45-20° ?t=30°C=806 Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=1830 Watt

• Heat Output 90/70-20°?t=60°C=2306 Watt

• Heat Output 55/45-20°?t=30°C=937 Watt

Btu

• Heat Output 75/65-20°?t=50°C=6244 Btu

• Heat Output 90/70-20°?t=60°C=7868 Btu

• Heat Output 55/45-20°?t=30°C=3197 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day

Tags

dizayn radyatör , dizayn panel radyatör fiyatları , dizayn panel radyatör , radyatör modelleri , radyatör fiyatları , radyatör petek , panel radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler
