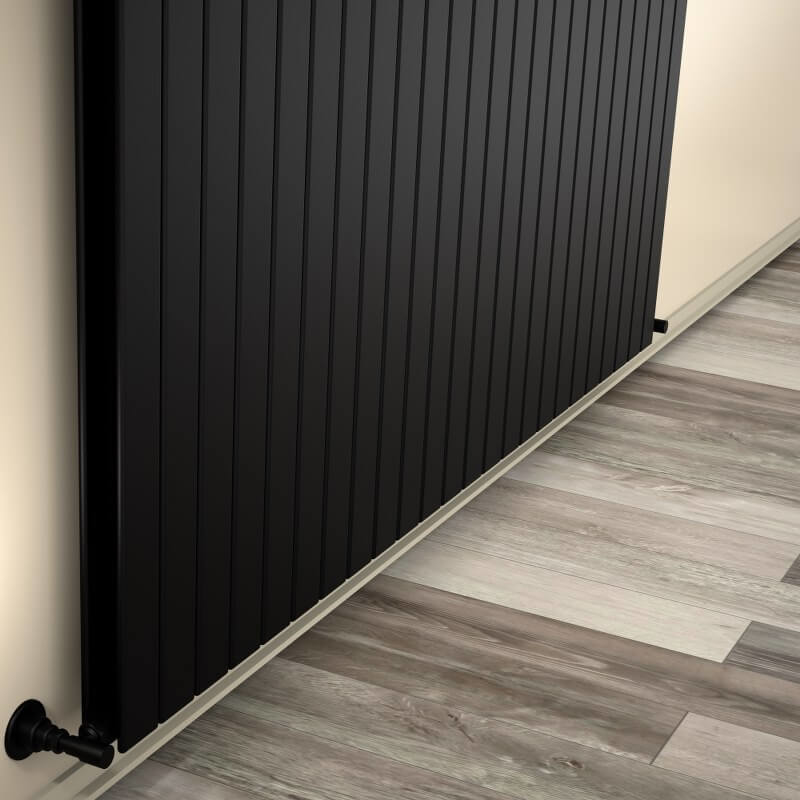

Type 20V Decorative Radiator 900x1772 Matte Black

Product Code : 220V09001772B3MS
Guarantee : 10 Year
TAXES Included
Price
:
88,165.50 TL
Discounted Price
:
48,491.03 TL
<p>10 Year Warranty</p>
10 Years
Warranty
Kargo Bedava
2000€ +
Free Shipping
Options

Standard Entry Standard Entry

Bottom Middle 50mm Bottom Middle 50mm

Bottom Left 50mm Bottom Left 50mm

Bottom Right 50mm Bottom Right 50mm

Choose Quantity
Planned Delivery
:
20.11.2024 (21 Days)
İnstagram Takip Et
Campaign
  • Features
  • Downloads
  • Payment Options
  • Comments (0)

  • TECHNICAL INFORMATION

    • Model = 20V

    • Material =Steel

    • Height    =900 mm

    • Width=1772 mm

    • Color/Coating=Matte Black RAL9005

    • Number of Sections=24 Pieces

    • Total Number of Profiles (Front + Back)=24+24 Pieces

    • Profile Dimension=70x11 mm

    • Collector Dimension=38 mm

    • Maximum Working Pressure=4,5 bar

    • Radiator Depth=58 mm

    • Wall to Center of Inlet=64 mm

    • Wall Projection Distance=93 mm

    • Radiator Thread Dimension=1/2"

    • Water Volume=24,8 lt

    • Weight=72,3 kg

    • Boxed Weight    =77,39 kg

    • Box Size=182x95x9,6 cm


    TAPPING OPTIONS




    • Standard Entry1 =1862 mm

    • Standard Entry2 =850 mm

    • Standard Entry Cross =1862 mm

    • Bottom Middle Entrance=50mm

    • Bottom Right Entrance=50mm

    • Bottom Left Entrance=50mm


    Heat Output




    Kcal / h


    • Heat Output 75/65-20°?t=50°C = 2361 Kcal/h

    • Heat Output 90/70-20° ?t=60°C=2975Kcal/h

    • Heat Output 55/45-20° ?t=30°C=1209 Kcal/h


    Watts

    • Heat Output 75/65-20°?t=50°C=2745 Watt

    • Heat Output 90/70-20°?t=60°C=3459 Watt

    • Heat Output 55/45-20°?t=30°C=1406 Watt


    Btu

    • Heat Output 75/65-20°?t=50°C=9366 Btu

    • Heat Output 90/70-20°?t=60°C=11802 Btu

    • Heat Output 55/45-20°?t=30°C=4796 Btu
    Warranty
    :
    10 Years
    Delivery Information
    :
    21 Day
    Tags
    panel radyatör , radyatör petek , radyatör fiyatları , radyatör modelleri , dizayn panel radyatör , dizayn panel radyatör fiyatları , dizayn radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler , siyah radyatör , mat siyah radyatör
Other Colors
  • %45 Discount - Type 20V Decorative Radiator 900x1772 White
    AKS Seçenekleri
    Type 20V Decorative Radiator 900x1772 White ∆t50°C=2361 Kcal/h | ∆t60°C= 2976 Kcal/h | 24 Pipes | Heats 16-46 m2
    70,532.40 TL
    38,792.82 TL
  • %45 Discount - Type 20V Decorative Radiator 900x1772 Anthracite
    AKS Seçenekleri
    Type 20V Decorative Radiator 900x1772 Anthracite ∆t50°C=2361 Kcal/h | ∆t60°C= 2976 Kcal/h | 24 Pipes | Heats 16-46 m2
    88,165.50 TL
    48,491.03 TL
  • %45 Discount - Type 20V Decorative Radiator 900x1772 Matte Black
    AKS Seçenekleri
    Type 20V Decorative Radiator 900x1772 Matte Black ∆t50°C=2361 Kcal/h | ∆t60°C= 2976 Kcal/h | 24 Pipes | Heats 16-46 m2
    88,165.50 TL
    48,491.03 TL
  • %45 Discount - Type 20V Decorative Radiator 900x1772 Wood Effect
    AKS Seçenekleri
    Type 20V Decorative Radiator 900x1772 Wood Effect ∆t50°C=2361 Kcal/h | ∆t60°C= 2976 Kcal/h | 24 Pipes | Heats 16-46 m2
    91,155.60 TL
    50,135.58 TL
