%45 Discount

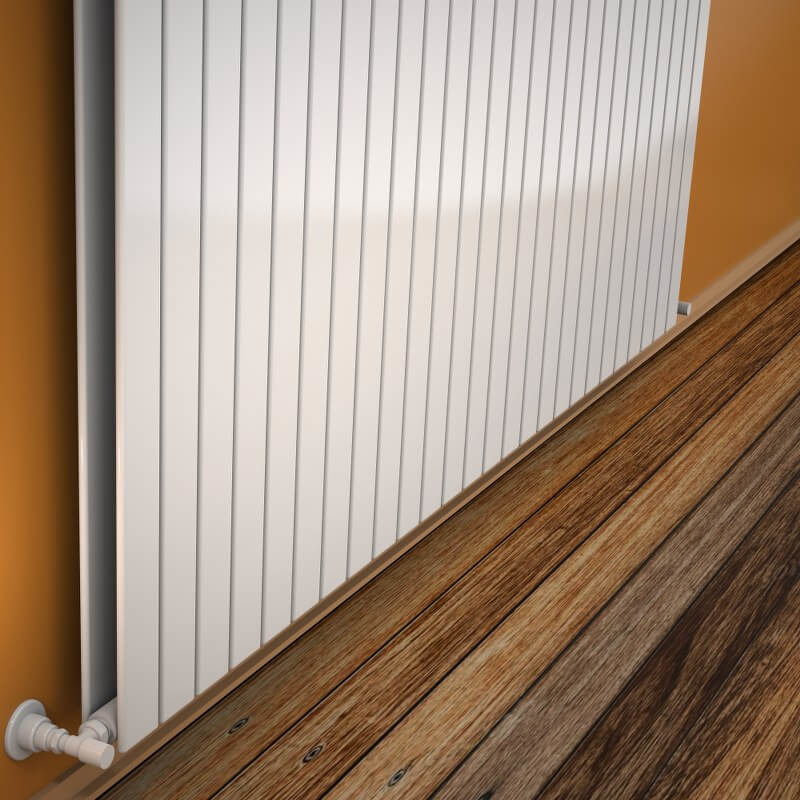

Type 20V Decorative Radiator 900x1920 White

Name: Type 20V Decorative Radiator 900x1920 White
SKU: 220V09001920B1PS
Price: 41794.50 TRY
Availability: InStock

Product Code : 220V09001920B1PS

Guarantee : 10 Year

TAXES Included

Price

75,990.00 TL

Discounted Price

41,794.50 TL

10 Years
Warranty

2000€ +
Free Shipping

Options

Standard Entry

Bottom Middle 50mm

Bottom Left 50mm

Bottom Right 50mm

Choose Quantity

Add to Cart

Planned Delivery

24.01.2025 (21 Days)

Add Comment Price Allert Add to Favorites

Features
Downloads
Payment Options
Comments (0)

TECHNICAL INFORMATION
• Model = 20V

• Material =Steel

• Height=900 mm

• Width=1920 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=26 Pieces

• Total Number of Profiles (Front + Back)=26+26 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=58 mm

• Wall to Center of Inlet=64 mm

• Wall Projection Distance=93 mm

• Radiator Thread Dimension=1/2"

• Water Volume=26,9 lt

• Weight=78,3 kg

• Boxed Weight=83,79 kg

• Box Size=196x95x9,6 cm

TAPPING OPTIONS

• Standard Entry1 =2010 mm

• Standard Entry2 =850 mm

• Standard Entry Cross =2010 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h

• Heat Output 75/65-20°?t=50°C = 2558 Kcal/h

• Heat Output 90/70-20° ?t=60°C=3224Kcal/h

• Heat Output 55/45-20° ?t=30°C=1310 Kcal/h

Watts

• Heat Output 75/65-20°?t=50°C=2974 Watt

• Heat Output 90/70-20°?t=60°C=3748 Watt

• Heat Output 55/45-20°?t=30°C=1523 Watt

Btu

• Heat Output 75/65-20°?t=50°C=10148 Btu

• Heat Output 90/70-20°?t=60°C=12787 Btu

• Heat Output 55/45-20°?t=30°C=5196 Btu

Warranty

:

10 Years

Delivery Information

:

21 Day

Tags

dizayn radyatör , dizayn panel radyatör fiyatları , dizayn panel radyatör , radyatör modelleri , radyatör fiyatları , radyatör petek , panel radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler

Other Colors
